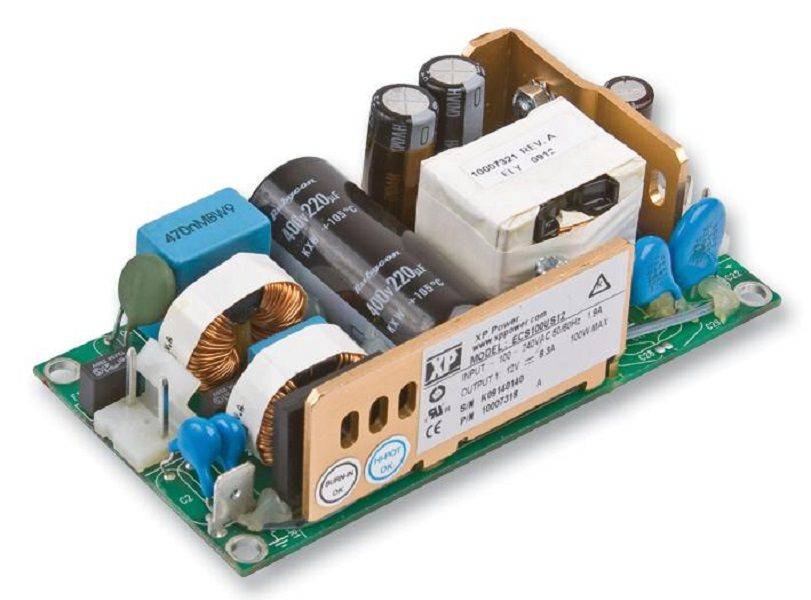

Xp Power (ECS65US12) AC/DC Open Frame Power Supply (PSU), 1 Output, 65 W,

AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 65 W, 80V AC to264V ACProduct InformationPower Supply Approvals: ITE & MedicalOutput Power Max: 65WNo. of Outputs: 1 OutputPower Rating (Convection Cooling): 65WPower Rating (Forced Cooling): -Output Current - Output 1: 5.4AInput Voltage VAC: 80V AC to 264V ACOutput Voltage - Output 2: -Output Current - Output 2: -Power Supply Output Type: Adjustable, FixedOutput Voltage - Output 3: -Output Voltage - Output 1: 12VDCOutput Current - Output 3: -Output Voltage - Output 4: -Current, Output 4: -Input Voltage AC Min: 80VInput Voltage AC Max: 264VProduct Range: ECS SeriesProduct OverviewThe ECS65 Series has been designed to minimise the no load power consumption andmaximise efficiency in order to facilitate equipment design to the latestenvironmental legislation. Approved for Class I applications, the ECS65 range ofsingle output AC-DC, 65W power supplies feature high power density in anindustry standard 2 x 4" (51mm x 102mm) footprint. The 1.05" (27mm) high, 1Ucompatible high-density power supplies meet EN55022 Level B emissions with lowearth leakage currents of 110µA at 115VAC or 210µA at 230VAC. Making theseswitchers ideal for industrial, IT and medical applications. The ECS65 serieshas single output versions from 12V to 48VDC which are adjustable by ±10%. Theyare dual fused for compliance with IEC60601-1 and with typical efficiencies at88%, minimal waste heat is generated. The ECS65 delivers a full 65W of power upto 50°C and operates at up to 70°C with deratingIT & Medical Safety Approvals2 x MOPP with Risk Management File
