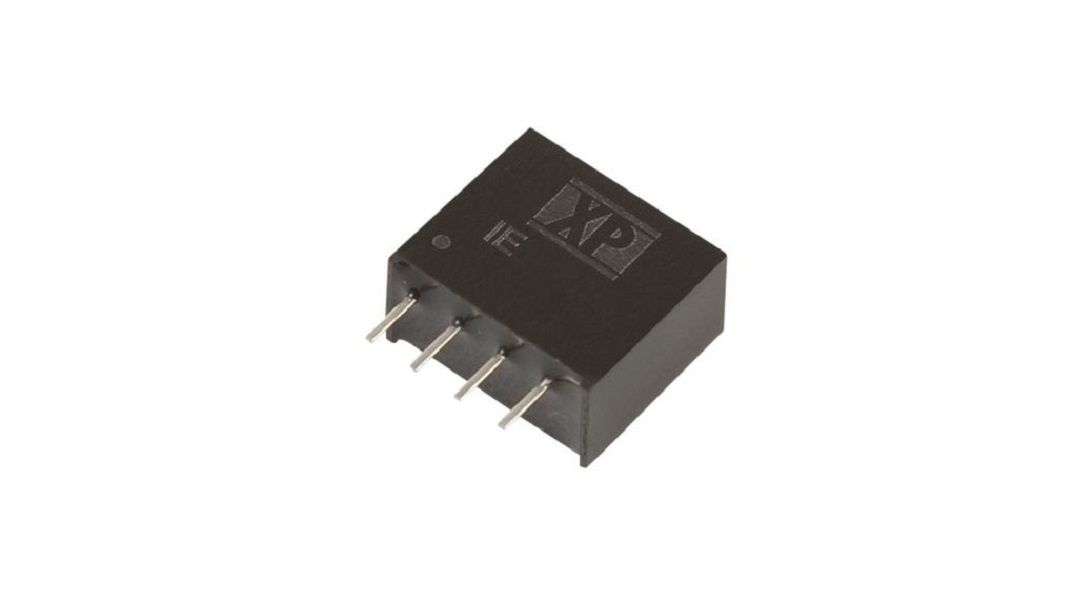

XP Power (IE2405S) Isolated Through Hole DC/DC Converter, 1kV Isolation

XP Power (IE2405S) Isolated Through Hole DC/DC Converter, 1kV Isolation

678 available / new
R409.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
8727805
Bob Shop ID
645117319
Isolated Through Hole DC/DC Converter, 1kV Isolation, ITE, 1:1, 1 W, 1 Output, 5V, 200 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 1WInput Ratio: 1:1Output Voltage - Output 1: 5VOutput Current - Output 1: 200mANo. of Outputs: 1 OutputOutput Regulation: UnregulatedIsolation Voltage: 1kVInput Voltage DC Min: 21.6VInput Voltage DC Max: 26.4VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 6.1mmHeight: 9.8mmDepth: 11.68mmProduct Range: IE24 SeriesProduct OverviewIE series is a unregulated, single output DC-DC converter. The IE series ishoused in a SIP4 plastic case for PCB mounting. It provides 1kVDC isolationbetween input and output as standard.MTBF >1.1MHrs3 year warrantyInput voltage is 24VDCNo load input current is 10mAOutput voltage is 5VOutput current is 200mAEfficiency is 75%Maximum capacitive load is 220µFNon conductive plastic (UL94V-0 rated) case materialOperating temperature is -40°C to +85°C
Add to cart
