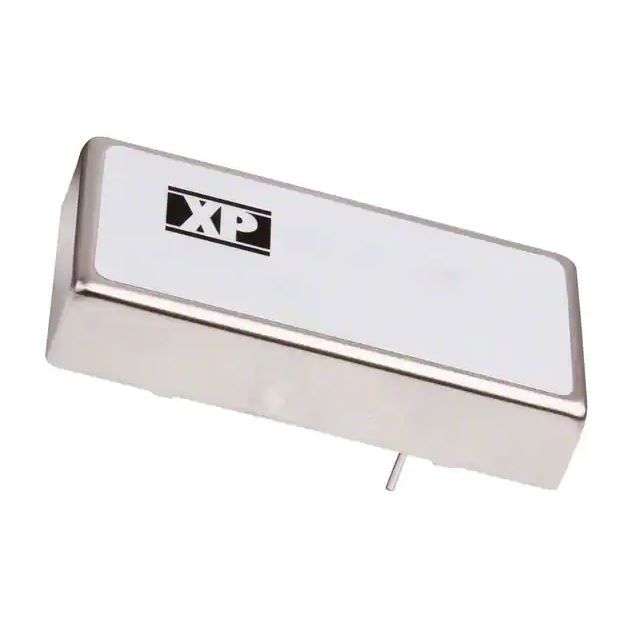

XP Power (JCK1524S05) Isolated Through Hole DC/DC Converter, 5V, 3A

Isolated Through Hole DC/DC Converter, 2:1 Input, ITE, 2:1, 15 W, 1 Output, 5 V,3 AProduct InformationPower Supply Approvals: ITEOutput Power Max: 15WInput Ratio: 2:1Output Voltage - Output 1: 5VOutput Current - Output 1: 3ANo. of Outputs: 1 OutputOutput Regulation: RegulatedIsolation Voltage: 1.6kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 25.4mmHeight: 10.16mmDepth: 50.8mmProduct Range: JCK15 SeriesProduct OverviewJCK15 series is a 2:1 input, regulated, single output DC-DC converter. The JCK15has 1.6KVDC isolation between input and output, overload and short circuitprotection is standard, an optional heatsink can be specified.Industry standard packageContinuous short circuit protectionInput voltage is 18-36VDCOutput voltage is 5VOutput current is 3AInput current is 0.75A full loadMaximum capacitive load is 3300µF85% efficiencyOperating temperature is -40°C to +100°C, derate from 100% load at +70°C to 0%load at +100°C
