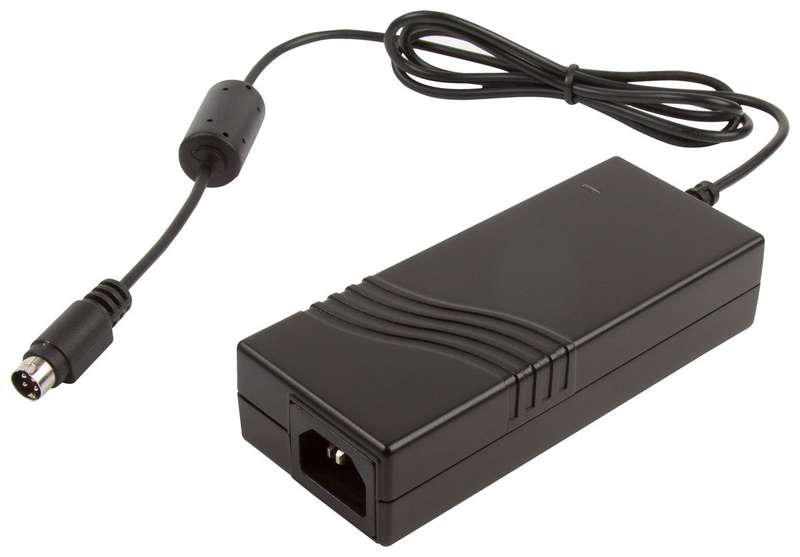

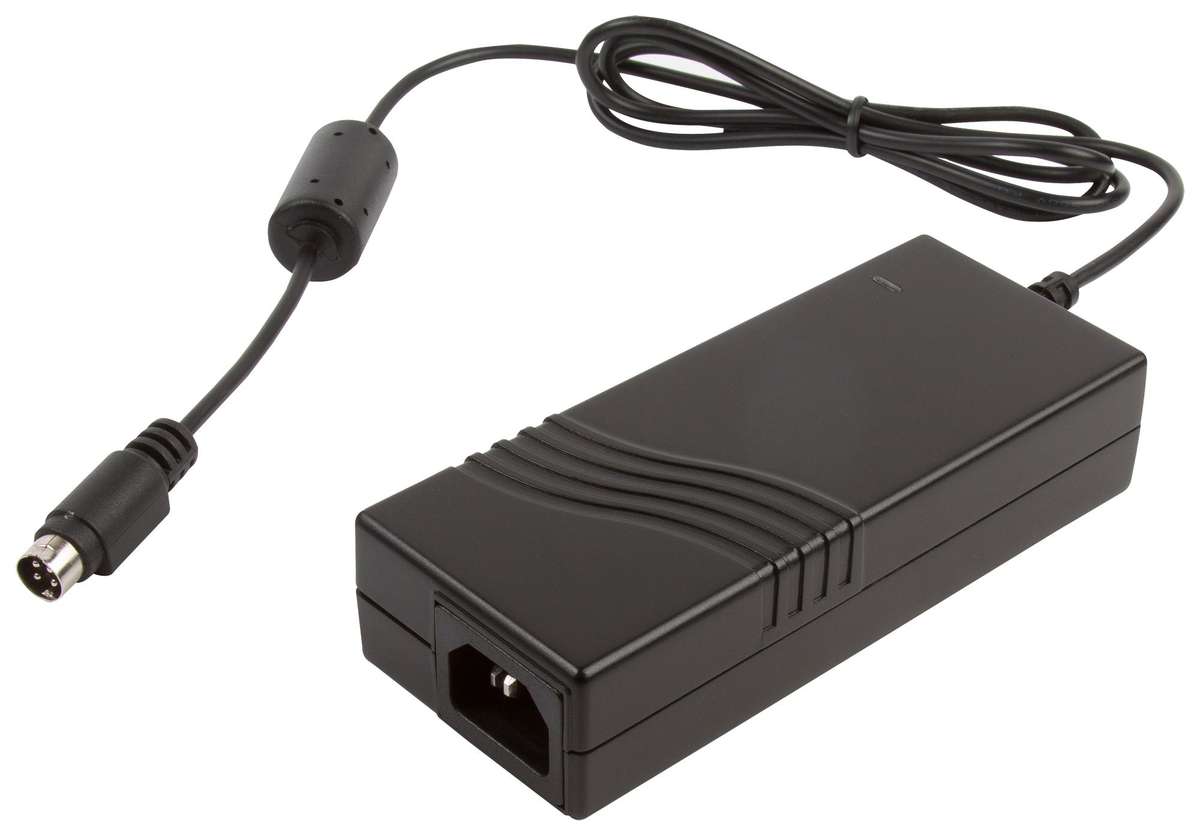

XP Power (VES90PS48) AC/DC Power Supply, 1 Output, 90 W, 48 VDC, 1.875 A

Product InformationPower Supply Applications: ITENo. of Outputs: 1 OutputOutput Power Max: 90WOutput Voltage - Output 1: 48VDCOutput Current - Output 1: 1.875AOutput Voltage - Output 2: -Output Current - Output 2: -Output Connector: 4 Way Mini DINOutput Voltage - Output 3: -Output Current - Output 3: -Input Voltage AC Min: 90VPower Supply Output Type: FixedInput Voltage VAC: 90V AC to 264V ACInput Voltage AC Max: 264VProduct Range: VES SeriesPlug Type: Mains Plug Sold SeparatelyProduct OverviewVES90PS48 is a VES90 series 90W AC-DC power supply. It includes overload,overvoltage, short circuit protection. Certified by UL-UL60950-1, UL62368-1,TUV-EN60950-1, EN62368-1, CB-IEC60950-1, IEC62368-1 standards. The 90W VES90with Energy Efficiency Level VI and CoC Tier 2 these desktop/external AC-DCpower supplies are designed for high volume/low cost applications. With class Iconstruction the VES90 are fitted with an IEC320-C14 inlet and have a voltageinput range of 90 to 264VAC. The DC lead is fitted with a 4 pin power mini DINconnector as standard, alternatively a 5.5 x 2.5mm barrel jack connector can bespecified as an option.Input voltage range from 90 to 264VAC, output voltage is 48V, output current is1.875AEfficiency is 89%Energy efficiency level VI, European CoC tier 2High power density0.15W standby power, china compulsory certification (CCC) qualified0 C to 60 C operation, low costIsolation is 3000VAC (input to output), switching frequency is 55KHz (full load)Dimension is 139.0 x 58.0 x 31.0mm
