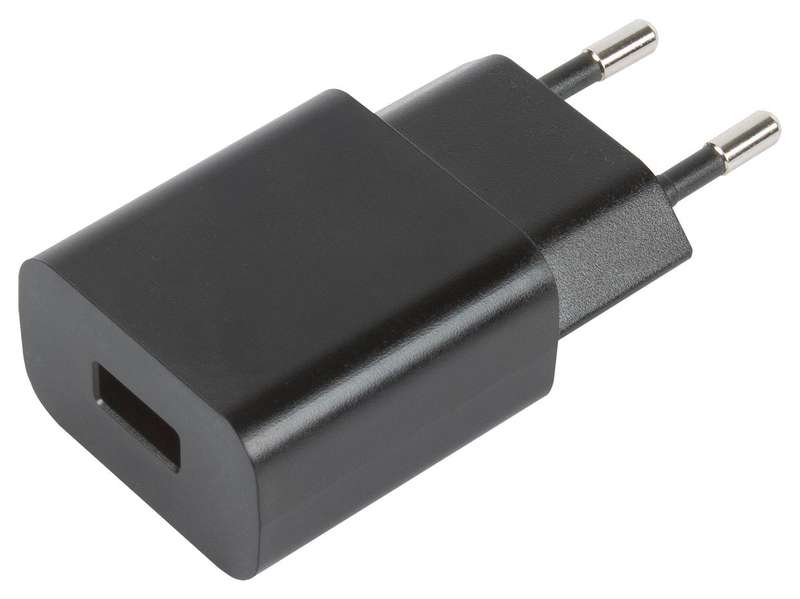

XP Power (VEU10US050-EU) AC/DC Power Supply, ITE, 1 Output, 10 W

Product InformationPower Supply Approvals: ITEOutput Power Max: 10WNo. of Outputs: 1 OutputOutput Voltage - Output 1: 5VOutput Current - Output 1: 2.1AOutput Connector: USBPower Supply Output Type: FixedInput Voltage AC Min: 90VInput Voltage VAC: 90V AC to 264V ACInput Voltage AC Max: 264VProduct Range: VEU10 SeriesPlug Type: EUProduct OverviewVEU10 series is an AC-DC power supply. The VEU10 range provides output power infixed input plug design, it has a type A USB in-body plug and is suitable formultiple charging applications or where a regulated 5VDC/2.1A power source isrequired. It has efficiency level VI and CoC Tier 2 compliant and have a no loadinput power of less than 75mW. Standard protection features include overvoltage,overcurrent and short circuit. Safety approvals are IEC60950-1, IEC62638-1,UL/cUL60950-1, approved as limited power source (LPS), UL62368-1, EN60950-1,EN62368-1, AU/NZ 60950.1.Fixed mains connectorsUniversal inputLow costWith class II construction, Europe (EU) input connectorDimension is 37 x 22 x 56.5mmOutput power is 10W, 90 to 264VAC input voltageOutput voltage is 5V, 47 to 63Hz input frequency2100mA output current5% total regulation, short circuit protectionOperating temperature is 0 to 60°C (derate from 100% load at 40°C to 50% load at60°C)
