Xpc Nano Ns02E 0.5-Litre Poe Fanless Pc With Android Supports 4K Hdmi 2.0

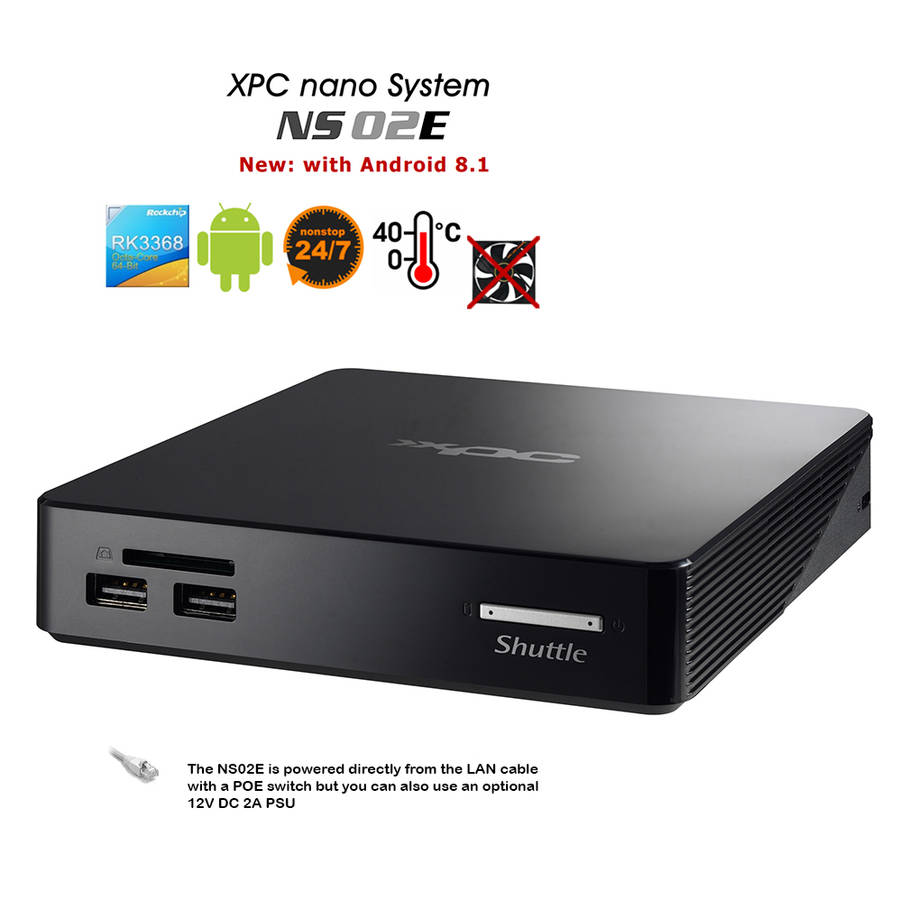

Shuttle XPC nano NS02E 0.5-litre fanless PC with Android with 4K HDMI 2.0 and POE

The Shuttle XPC nano NS02E is one of the most affordable models Shuttle's product family of Mini PCs has on offer. It not only convinces by its stunning looks and reliable long-term performance alone, it also comes with an integrated Octa-Core ARM processor and pre-installed Android operating system. Featuring 4K HDMI 2.0, 3x USB, Gigabit-LAN, Wireless LAN and a built-in card reader, they easily connect to diverse peripheral devices for different kinds of application. The NS02E is POE powered directly over the LAN from a 802.11af POE or 802.11at POE+ switch so a 12 Volt Power Supply is not included and is optional. The NS02E is particularly intended for digital signage and Thin Client applications.

Feature Highlights

• nano Design Slim plastic chassis, black, 577 ml
• Dimensions: 141 x 141 x 29 mm (LWH)
• Weight: 0.65kg gross, 0.27kg net
• VESA mount: (75x75 / 100x100mm)
• Operating System: Android 8.1 ("Oreo"), Preloaded DS Creator Digital Signage App
• Processor: Rockchip RK3368 Octa Core Cortex-A53 64-bit SoC, 1.5 GHz max. clock speed
• Graphics: PowerVR SGX6110 GPU up to 600 MHz
• Playback: Supports H.265 videos at 4K@60fps
• Memory / Storage: 2 GB RAM onboard, 16 GB eMMC onboard
• Front Panel: Power Button with Power LED and HDD LED, 2x USB 2.0, SD card reader
• Back Panel: HDMI 2.0, USB 2.0, RJ45 Gigabit LAN, Audio Line-out 3.5 mm jack, DC-Input, Hole for Kensington Lock
• Network: Wired Gigabit LAN (RTL8211-CG), Wireless LAN (RTL8723BS, 1T1R) supports 802.11 b/g/n and Bluetooth 4.0
• Power Source: 802.11af/at POE over LAN cable from a POE switch or injector. Optional external 24 W power adapter, Input: 100~240 V AC, Output: 12V/2A
• Other Features: Screen rotation function, HDMI output scaler function (zoom in/out), Auto power-on-after-power-fail, Wake up / Standby by RTC time
• Operation temperature range: 0 40 °C, Approved for 24/7 permanent operation
• Applications: Digital Signage, Thin Client, etc.
• Certifications: EMI: CE, FCC, BSMI, RCM, CCC, R&TTE, Safety: CB, BSMI, ETL, Other: RoHS, EuP Lot 6

View Full Specifications (PDF)

 (Note: This unit is not licenced for Google Play services and is not supported to work with commercial live streaming applications such DSTV Now, Netflix, ShowMAX etc.)
