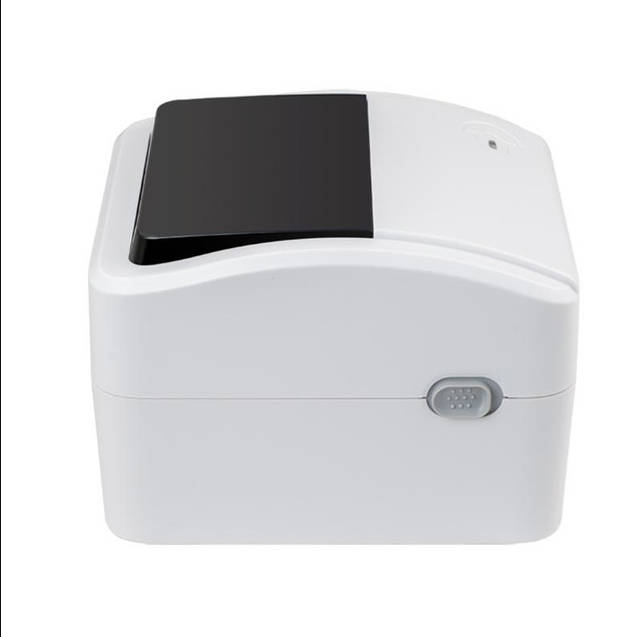

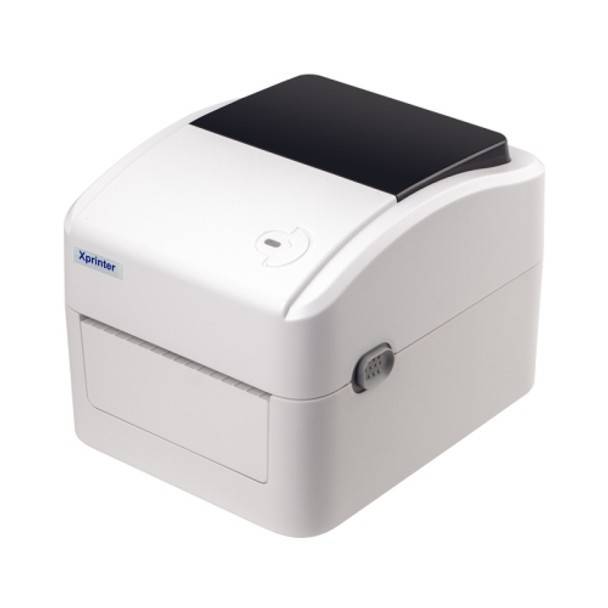

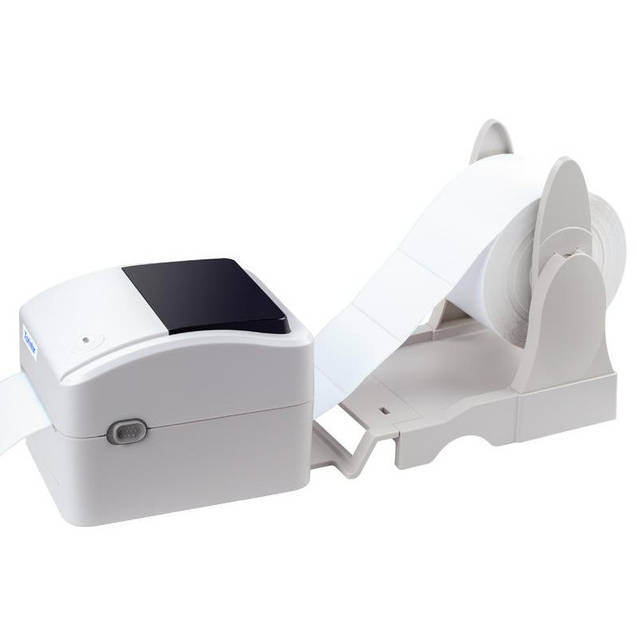

XPrinter XP-420B Direct Thermal Label Printer

The XP-420B is the latest model of Xprinters 108mm wide Direct thermal label printer. Having a space-saving footprint, it still has a large paper loading bay. One multi-functional button and one two-color indicator for simple easy operation. All this and It has USB and LAN as standard features.

This is the most cost effective option for Direct thermal label printing that We can offer.

Printing

Printing Method Direct Thermal

Resolution 8 dots/mm(203 DPI)

Interface USB2.0 (Standard)/Lan(Optional)/Bluetooth(Optional)/WIFI(Optional)/Peel off model(Optional)

Optional accessories TF card slot, RTC clock, peel off module, Cutter module

Max Print Speed 152 mm (6")/s

Max Print Width 108mm (4.25)

Max Print Length 1778mm

Media Type Continuous, gap, black mark, fan-fold and punched hole

Media Width 20 mm ~ 115 mm

Media Thickness 0.06 mm ~ 0.25 mm

Media Length 10 mm ~1778 mm

Paper roll diameter 25.4 ~ 76.2 mm (1" ~ 3")

Paper thickness 0.06 mm ~ 0.25 mm

Label Roll Capacity 127 mm (5) external diameter

Memory 8MB Flash Memory

Micro SD card reader for Flash memory expansion, up to 4GB

Sensor Gap sensor

Printer Head opened sensor

Black mark sensor

Processor 32-bit RISC CPU

Power Supply Input: AC 100-240V; Output: DC 24V/2.5A

1D Barcode Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code11

2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztec

Emulation TSPL \ EPL \ ZPL \ DPL

Dimension 215 mm x 178 mm x 155 mm

Weight 1.31 kg

Safety Standard FCC, CE, CB, CCC
