XR2206 High Precision Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz..!

XR2206 High Precision Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude..!

Product Information

DESCRIPTION

This signal generator DIY kit is professional product to generate sine/triangle/square wave.
It's a DIY kit for you to weld and install.

FEATURES

High resolution, can generate sine/triangle/square waveforms.
Frequency range: 1Hz-1MHz.
Adjustable frequency and amplitude.
Frequency adjustment features coarse tuning and fine tuning.
Wide power supply range, use 9-12V external power or 9V battery (not included).
All are through hole components, easy for installation.

SPECIFICATIONS

Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz-1MHz

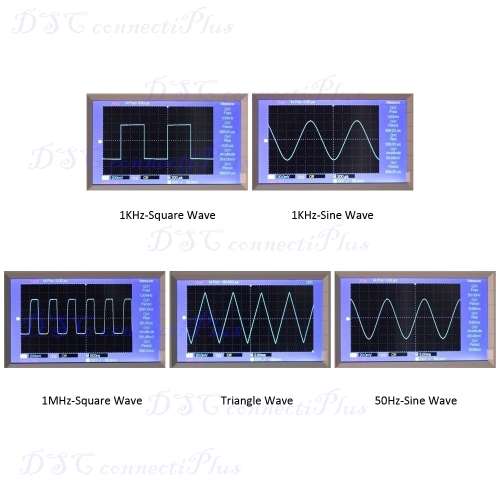

SINE WAVE
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE
Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA

PACKAGE DETAILS

Unit Type: Kit
Package Weight: 0.074kg (0.16lb.)
Package Size: 12 x 8 x 2cm (4.72 x 3.15 x 0.79in)

Package Contents

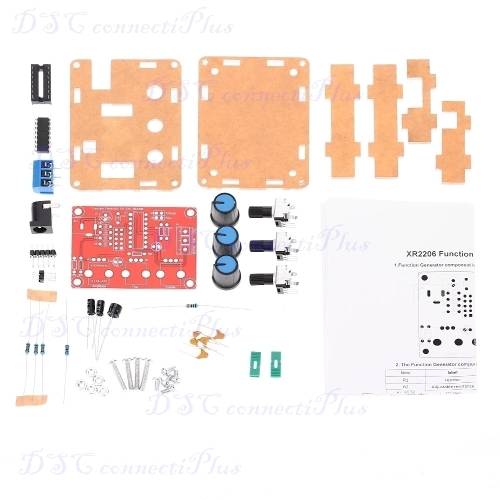

1x Signal Generator DIY Kit
1x User Manual (English)
