Specifications
Processor: STM32F405RG 168MHz 1024KB Flash 196KB RAM
Voltage input: 7~60.9V (2S~14S)
Continuous current: 200A
Burst current
400A @ 25 1 sec
1000A @ 25 < 1 sec
Max current sensing: 376A
Voltage accuracy: ±0.1V
Current accuracy: ±5%
Temperature accuracy: ±1

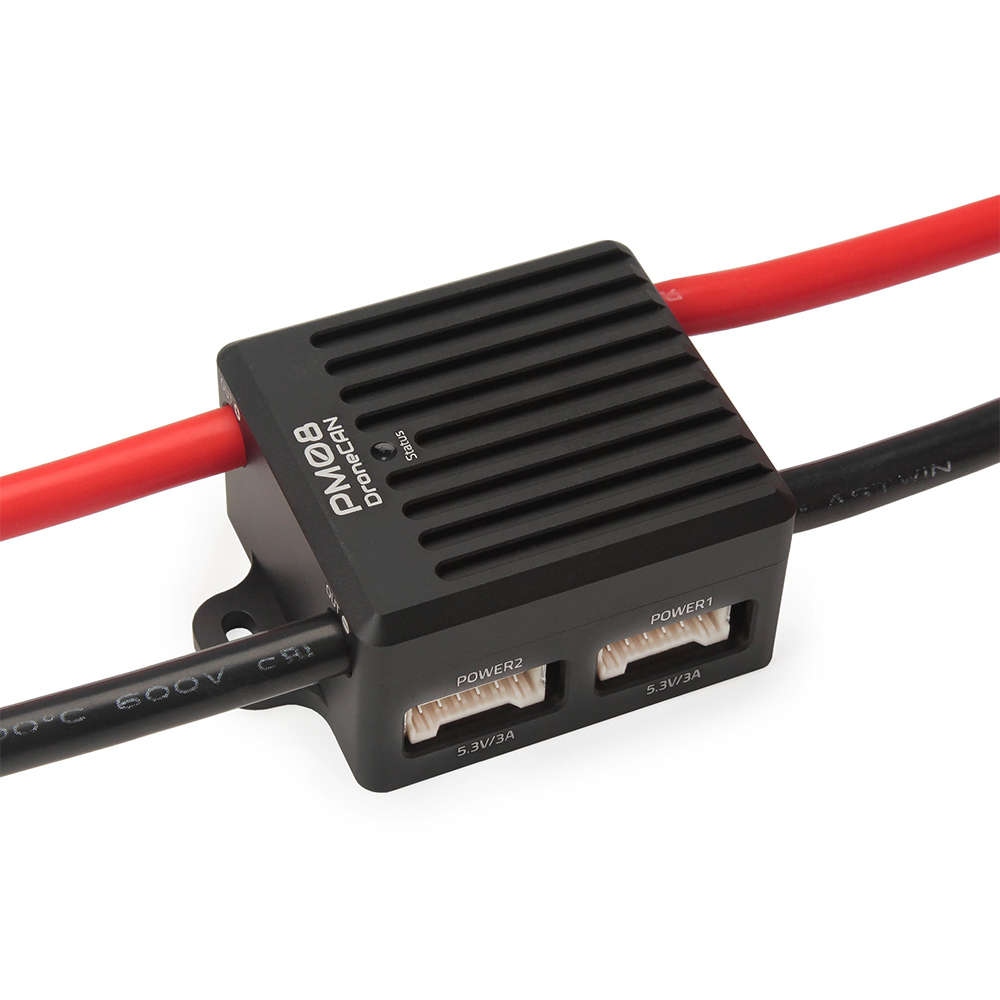

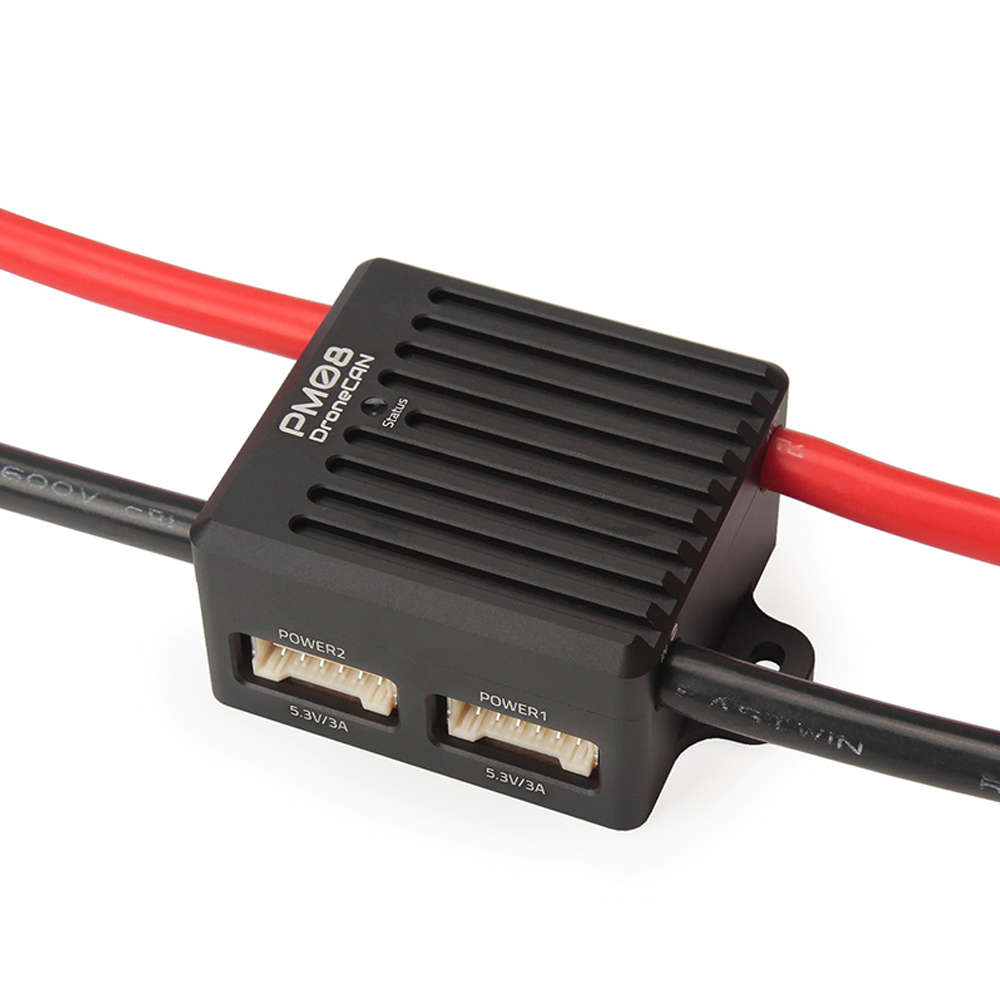

Power port output: 5.3V/3A each port
Protocol: DroneCAN
Operating temperature : -25~105
Firmware upgrade: Support
Calibration: Support
Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
Battery IN/OUT Options: XT90 Connectors/Tinned Wires/XT90 & Ring Terminals
Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
Flashing slowly (one-second intervals): CAN is successfully connected
Size: 45mm×41mm×26mm (Not Include Cable)
Weight: 185g (Include Cable)
Feature:
1.Supports 2-14S & 200A Cont, 400A Burst
2.DroneCAN Communication Protocol
3.Small & Compact Design
4.Two 5V Output with Independent BEC IC and Circuitry

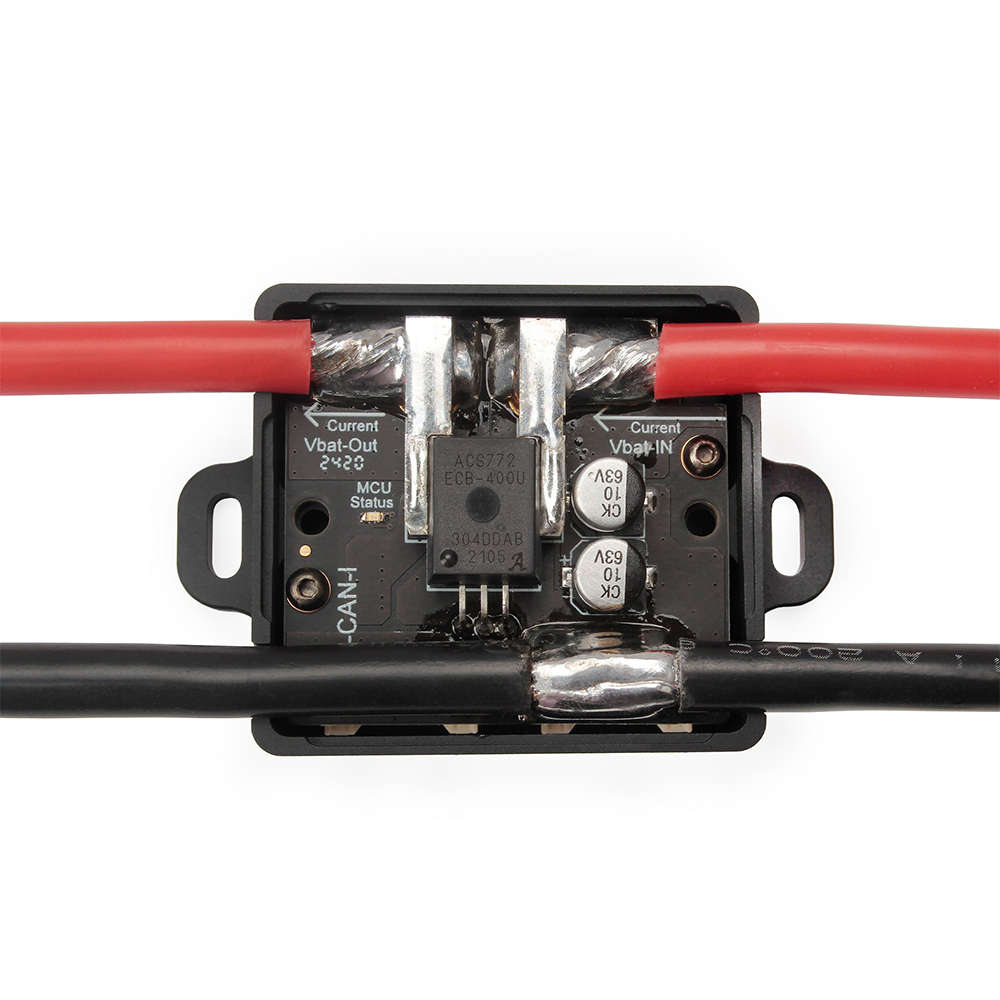

5.Separated Sensor and BEC Board to Minimize Electrical Noise Interference
6.Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
7.High Accuracy Temperature Sensor for Temperature Monitor
8.High-Efficiency Aluminum Heat Dissipation Shell
Package included:
1X XT90 Connectors/Tinned Wires/XT90 & Ring Terminal
