XTool Advancer AD20 Car OBD2 Engine Scanner Diagnostic Tool Work With IOS & Android

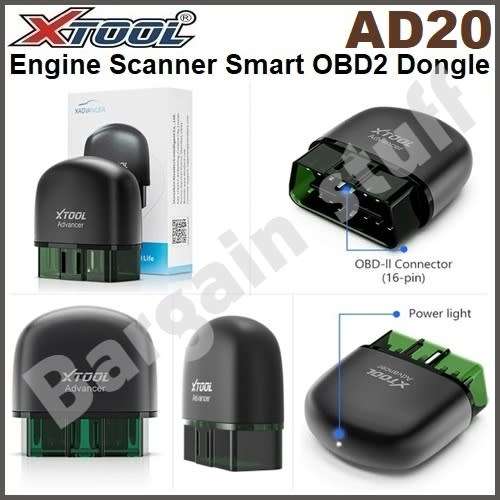

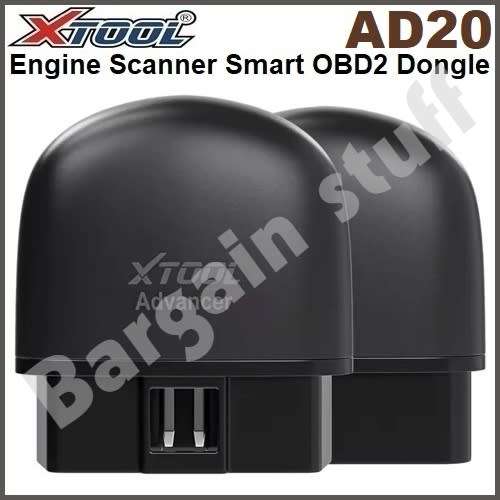

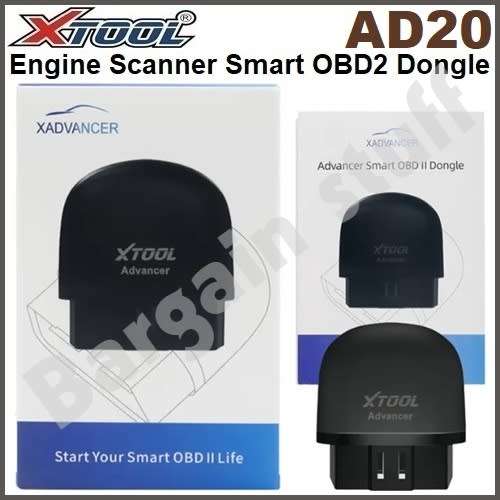

The XTool Advancer AD20 engine scanner is a Smart OBD2 Dongle with integrated diagnostic module and cloud services, It Provides you with various functions like DTC scanning, Components tests, trip recording, driving skills monitoring, etc. and comes with lifetime free updates.

PLEASE NOTE: Phone use in the images is not included.

Note: Only for Read and Clean Error Codes on Engine system (Please contact us for checking the compatibility of the AD20 with your car models before purchasing)

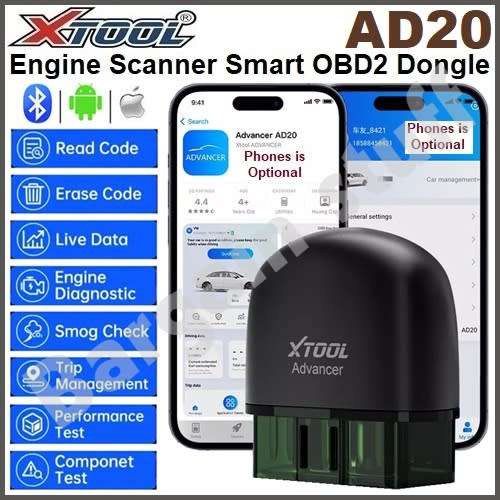

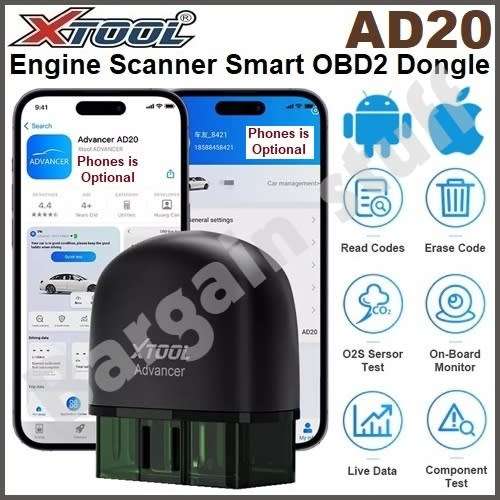

OBDII Functions:

1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

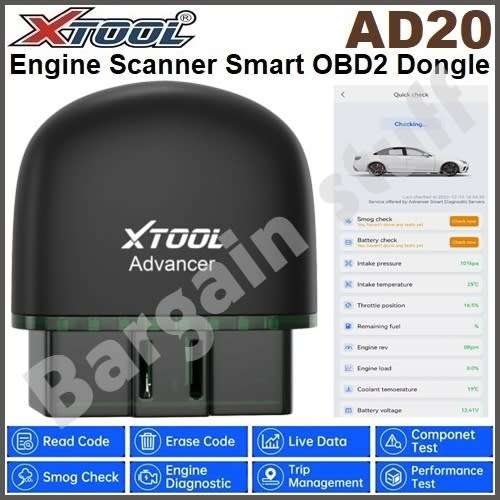

3. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
4. Freeze Stream: Records the certain vehicle conditions when an emission-related fault occurs.
5. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
6. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicles on-board computer.
8. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. DTC Lookup Library:  Look up the fault code's definition directly, including the fault description, the cause of the fault, maintenance suggestions and background knowledge.

Check Engine Light & Turn Off the MIL:

1. The Malfunction Indicator Light (MIL) is a term used for the light on the instrument panel. It is to alert the driver that there is a vehicle problem.

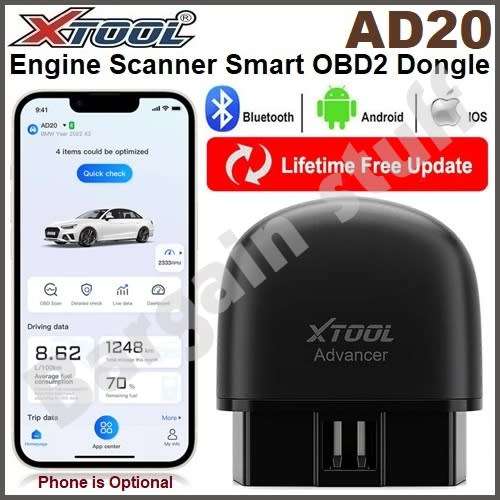

Trip Driving Records & Analysis:

1. Trip Recording: Record each time you drive after the record, the specific distance travelled and the average driving speed.
2. Trip Details: Each driving data AD20 will have specific data analysis, driving time, driving distance, average fuel consumption (for reference only), average speed and maximum speed.

AD20 with HUD Function: AD20 can real-time engine data, when connected to the car, the mobile phone can be adjusted to HUD mode, and placed under the car glass, the engine value can be displayed.

Performance Testing: Professionally test the performance of your car, the specific time for 100-meter acceleration includes the maximum driving speed, engine load and coolant temperature. These values can largely read the performance indicators of the vehicle.

Supported Car Protocols:

SAEJ1850 PWM (41.6Kbaud) / SAE J1850 VPW (10.4Kbaud) / ISO9141-2(5 baud init,10.4Kbaud) / ISO14230-4 KWP (5 baud init,10.4 Kbaud) / ISO14230-4 KWP (fast init,10.4 Kbaud) / SO15765-4 CAN (11bit ID,500 Kbaud) / ISO15765-4 CAN (29bit ID,500 Kbaud) / ISO15765-4 CAN (11bit D,250 Kbaud) / ISO15765-4 CAN(29bitID,250 Kbaud)

Note: The implementation time of OBDll agreement is not the same on all continents.
