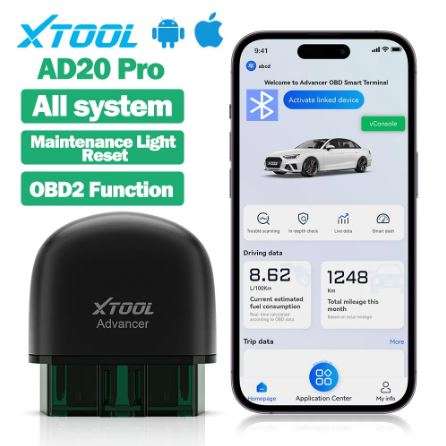

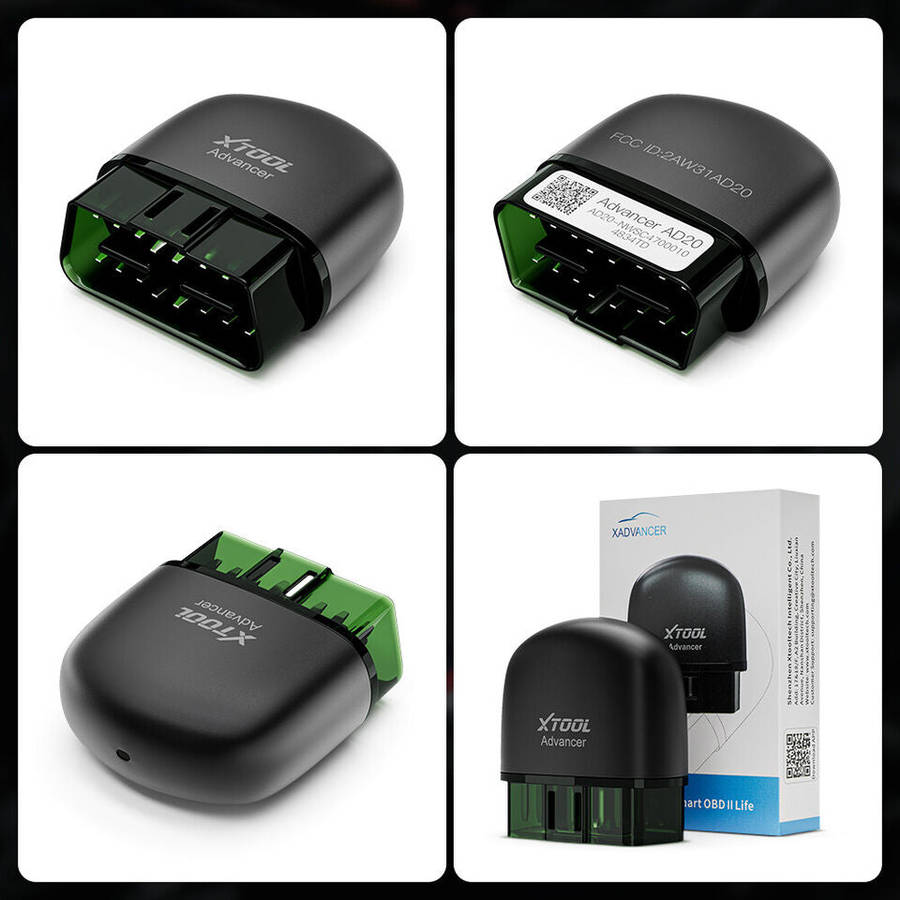

Xtool AD20 Pro Advanced Wireless OBD System Diagnosis Tool (10006861)
The Xtool AD20 Pro is an advanced wireless OBD system diagnosis tool that allows users to easily diagnose and troubleshoot vehicle issues. With its user-friendly interface and advanced features, this tool is a must-have for any car owner or mechanic.
AD20 PRO is OBD2 Scanner which is special for 12V cars, it includes 9 protocol which meet most of cars' need, support to scan most of cars which have OBD2 protocol, do quick scan and show error, each error code have a explanation in the follow, so u will know what error your car has immediately, Full System In-depth check it is stronger more than u think, also have Mult-language u can select, so don't need to worry about u don't understand what is that mean. Low price and high quality scanner from XTOOL, what are u waiting for?

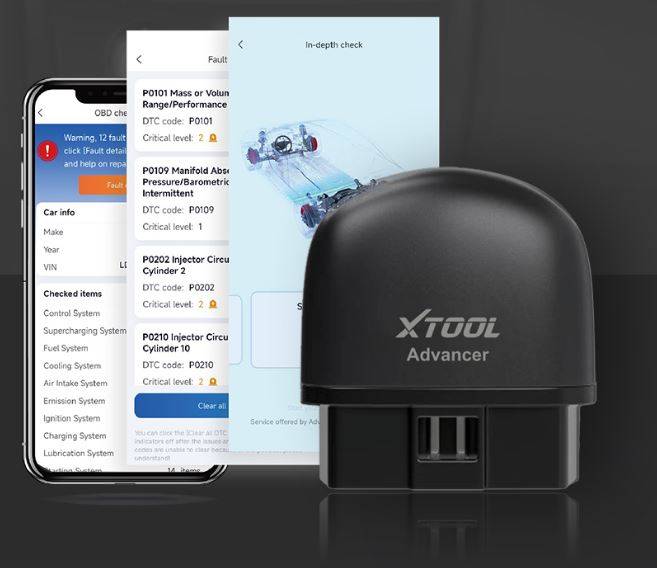

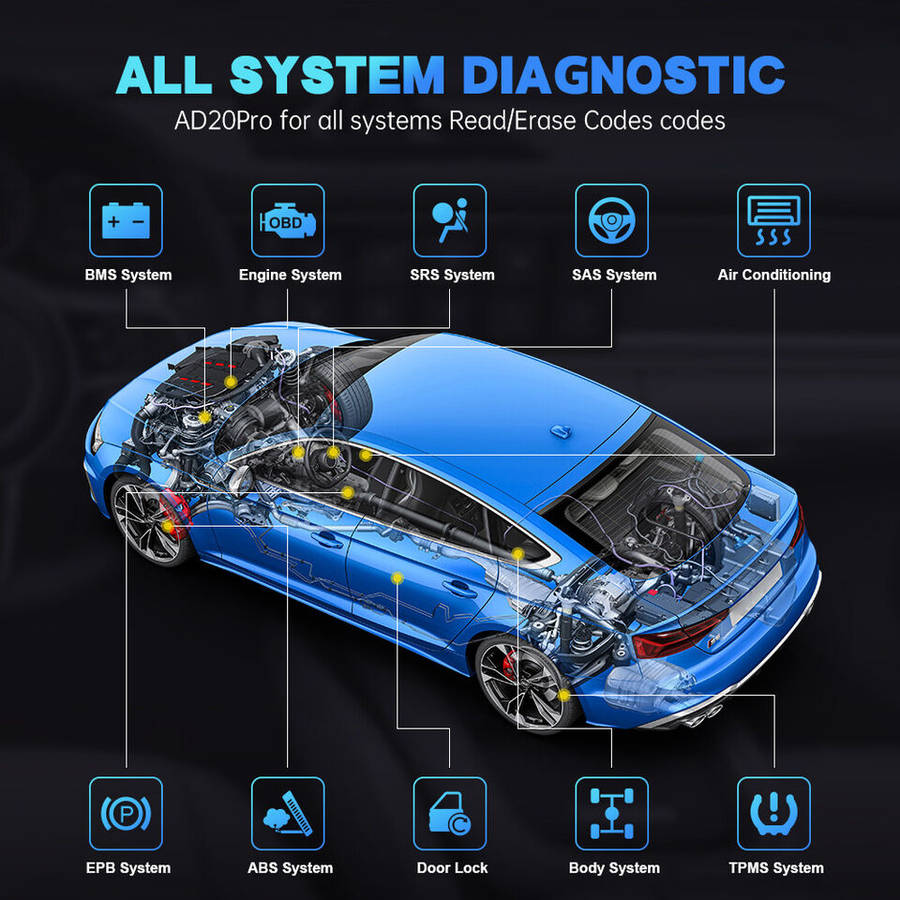

All System In-depth check function allows you to do thorough check on vehicle systems like engine, powertrain, brakes, steering, safety, infotainment and so on, which helps owners to know the health condition of the car clearly and provide safe and comfortable driving experience on travels. Located the problem, Clear fault code for your vehicle

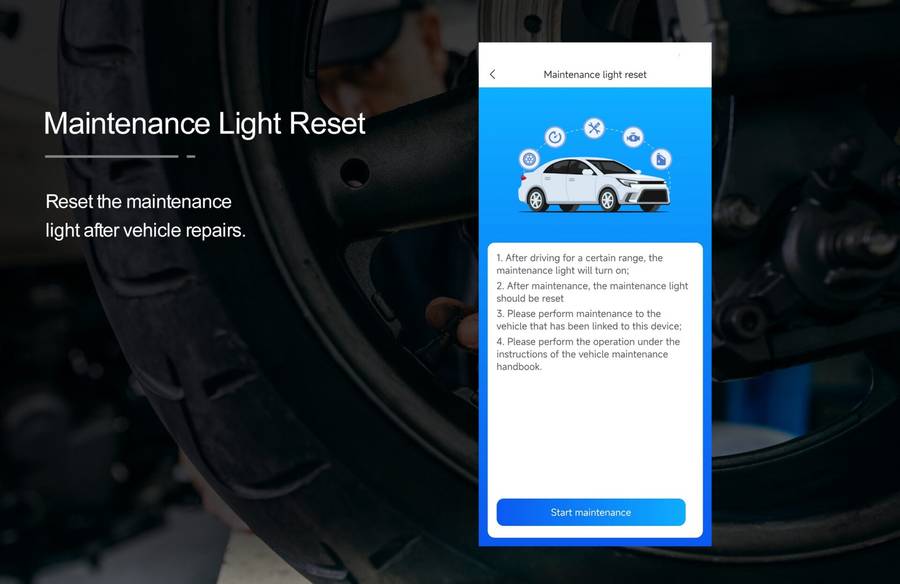

Maintenance light Reset Maintenance light is a reminder set by car manufacturer, which reminds drivers to do maintenances when needed. When the reminder is on, the car will show info on the dashboard screen, or simply shows a light. This function allows you to reset the maintenance counter and turn off the maintenance light after finishing maintenance. For your driving safety, make sure you have followed the manual when doing maintenance to your own car.
OBD-II Function

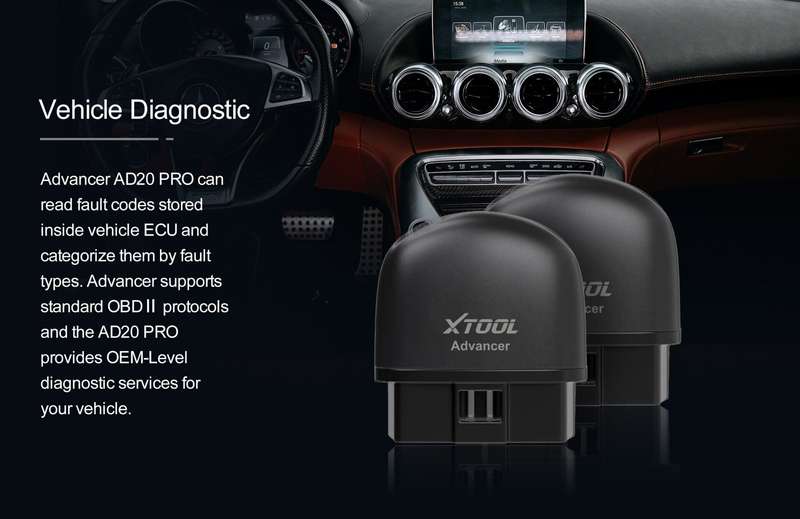

Advancer AD20 PRO can read and categorize the fault codes (DTCs) that storage inside the vehicle ECU ,via standard OBD-II protocols.
Compatible with all Gasoline vehicles in OBDII interface, which support 9 OBDII protocols:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud) 3.ISO9141-2(5 baud init,10.4Kbaud) 4.ISO14230-4 KWP(5 baud init,10.4 Kbaud) 5.ISO14230-4 KWP(fast init,10.4 Kbaud) 6.ISO15765-4 CAN(11bit ID,500 Kbaud) 7.ISO15765-4 CAN(29bit ID,500 Kbaud) 8.ISO15765-4 CAN(11bit ID,250 Kbaud) 9.ISO15765-4 CAN(29bit ID,250 Kbaud) Note: only Support 12V cars, Does not support 24V Truck

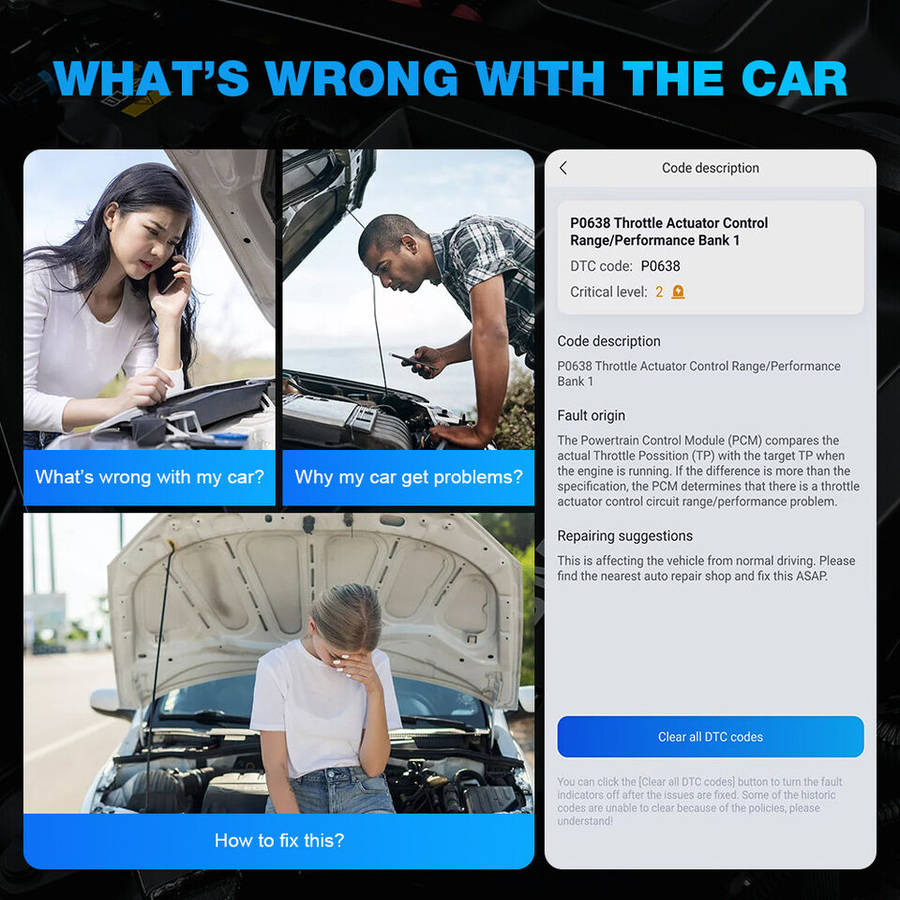

Check Engine Light Faster and in-depth scan the engine modules, it helps to find out the hidden issue of the engine light. Focus on the important modes like read and clear codes, mode6 and mode8, you can easily to know the on-board monitor system and the evap system. You can also see the status of the misfire cylinder.

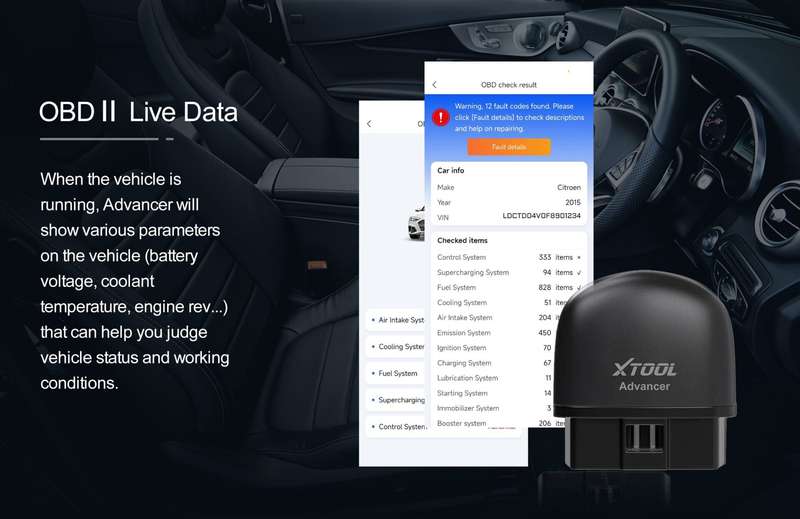

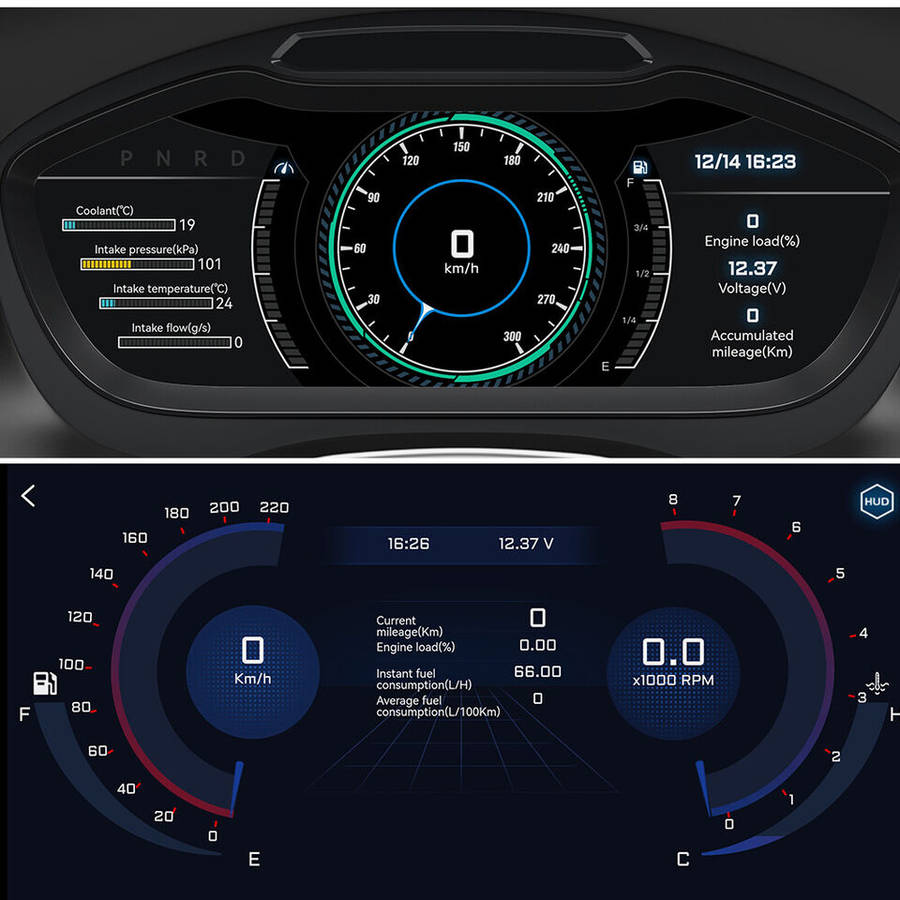

Live Data When the car is started, Advancer will provide and demonstrate detailed vehicle status like battery voltage, engine RPM, coolant temperature, engine load, fuel trimming and so on. This will help you to get the real-time working conditions of the car.
Components Test This function allows you to check the health status of the systems and the components of the vehicle. Currently we support to perform tests on batteries, fuel correction control system, emission system and air flow sensors. Also, through some tests we can know the status on the carbon built-up in the throttle.
Battery Testing Let you better know your car's battery status.
Smog check One of the most common and important checks that states require is a smog test or check. They're used to determine how much pollution your car returns to the Earth in the form of greenhouse gases and emissions from burning liquid dinosaurs. Each state is a little bit different, but the basic concept is the same: Make sure you're not driving a poorly maintained rattletrap. - 1996-1999 model year vehicles will be allowed one incomplete readiness/emission monitor - 2000 and newer model year vehicles will need all emission monitors in READY or COMPLETE status, with the exception of the EVAP monitor. AN incomplete evaporative monitor will not cause a smog check failure. lt will be the only monitor allowed to be incomplete on a 2000 & newer vehicle. avoiding being fined and reducing the carbon footprint, protect the environment.

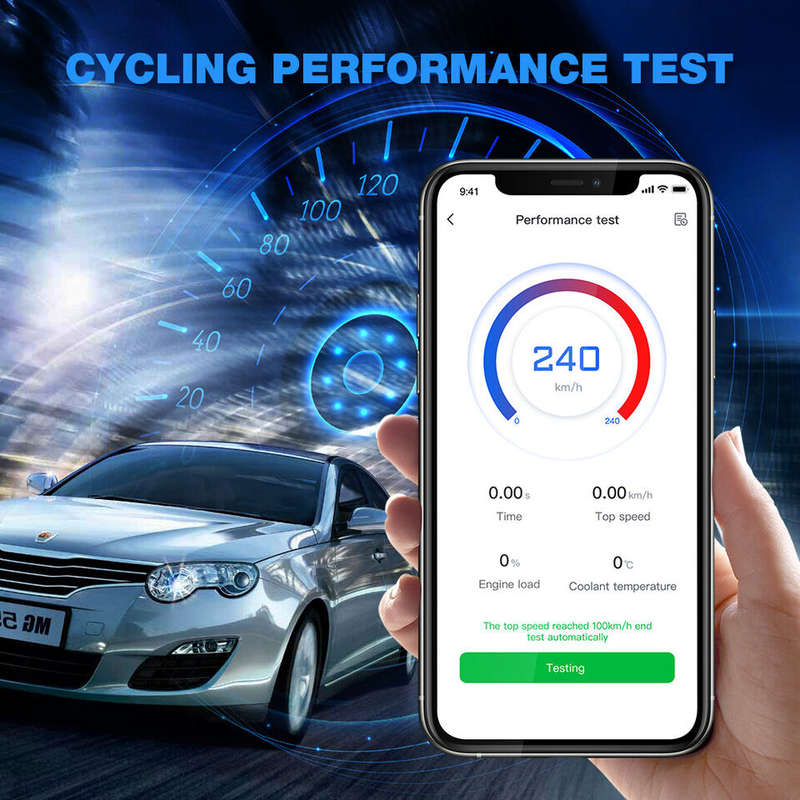

Performance Test This is a simple 0-100km/h counter for you to intuitively know how is the performance of your vehicle. Find a safe runway, stop your car and stay into idle, and then full on throttle. AD20 PRO will automatically record your 0-100km/h time and the live data of the whole procedure. Make sure that you are doing performance tests on a safe and closed runway with no pedestrians nearby
