XTool VAG401 Professional Handhold Diagnostic Tool for VW / AUDI / SEAT / SKODA

The XTool VAG401 is the higher version based on VAG5053 with powerful function. It can work on VW, AUDI, SEAT and SKODA. With its smart appearance and powerful function, it can be conveniently used and can be run detatched without PC.

Product Features:

• Natural ergonomic comfort curve design.
• Easy-to-read large mono-colour screen.
• Easy-to-operate large buttons.
• Works with Volkswagen and Audi (Audi/ Seat/ Skoda/ Jetta/ Golf / Beetle/ Touareg/ GTI/ Passat and more) since 1990.
• Reads and Erases Diagnostic Trouble Codes (DTCs) of engine, ABS, Airbags, Transmission, Radio, Climate Control (A/C), Central Electrics, Steering Wheel, Instruments, Immobilizer, etc. (over 60 Systems on VAG range ONLY)
• Reads and clears generic trouble codes KWP-1281, KWP-2000(ISO 14230), TP2.0 CAN.
• Turns off Engine Warning Light, Airbags, ABS, A/T and other systems on VAG. (Only engine system faults in non-VAG cars)
• C.A.N. (Controller Area Network) capability.
• Super-fast One-Click solution of oil reset in VAG up to 2011.
• Retrieves vehicle information (VIN).
• Displays I/M Readiness Status.
• Displays DTC definitions on unit screen.
• Full function support, including coding and adaptation.(May differ from vehicle models)
• Full system support.

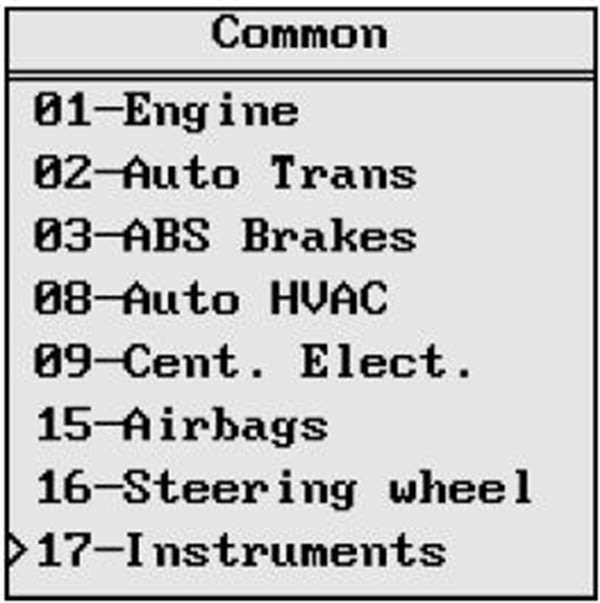

Supported Systems:

1. Engine.
2. Auto Transmission.
3. ABS.
4. Auto HVAC.
5. Airbags.
6. Steering.
7. Instrument.

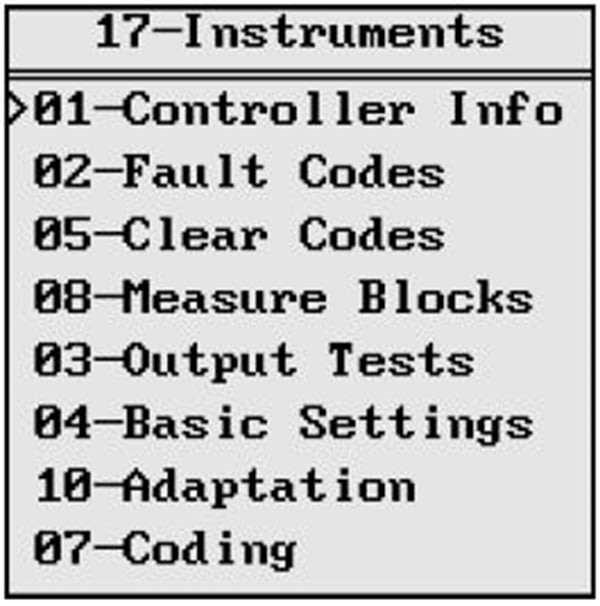

Functions:

1. Retrieve controller information.
2. Read DTC.
3. Clear DTC.
4. View live data.
5. Actuation test.
6. System basic adjustment.
7. Adaptation.
8. Coding.
9. I/M Readiness.

Special Function:(may not support some models)

• Oil Reset.
• Airbag Reset.
• Throttle adaption
• Mileage Reset
• EEPROM access
• For Audi a6/8l/q7 brake pad replacement

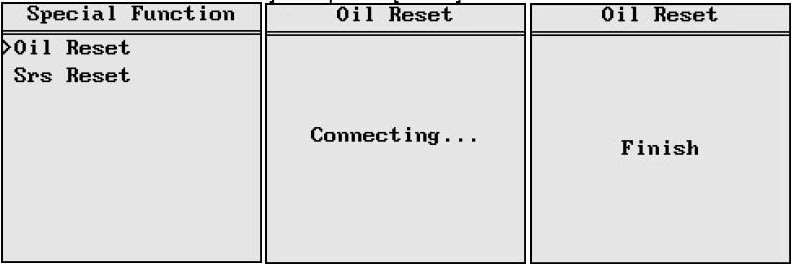

1.OIL Reset: (may not support some models)

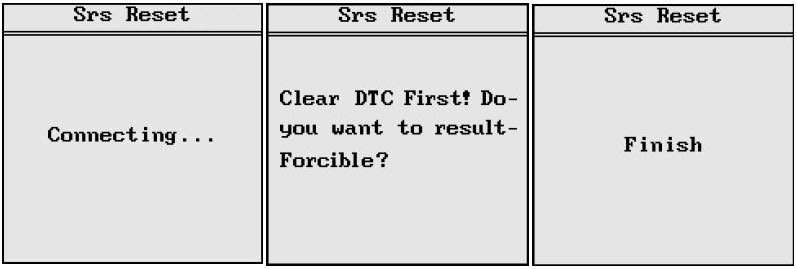

2.SRS Reset: (may not support for some models)

Channel number function:

01 Engine electronics.
02 Automatic transmission.
03 Anti-lock brakes.
15 Airbag.
17 Dashboard.
35 Central loclk.
46 Central comfort module.
16 Steering wheel.
34 Level control.
65 Tire pressure.
08 Automatic air conditioning.
44 Power steering.
25 Immobilizer system.
53 Parking bralke.
55 Xenon lamp adjustment.
56 Radio.
76 Parking aid.
47 Sound system.
37 Navigation system.

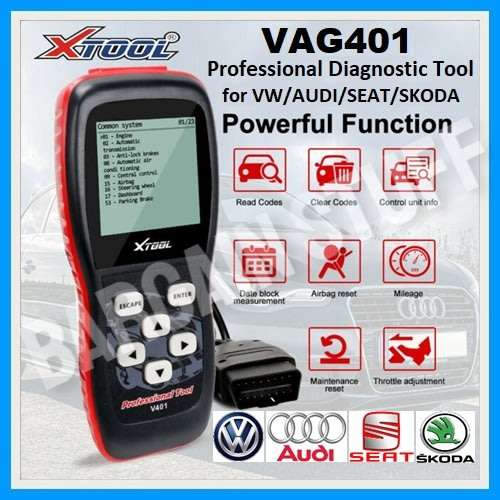

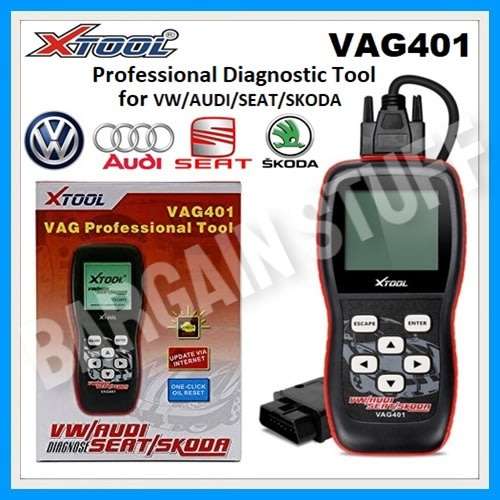

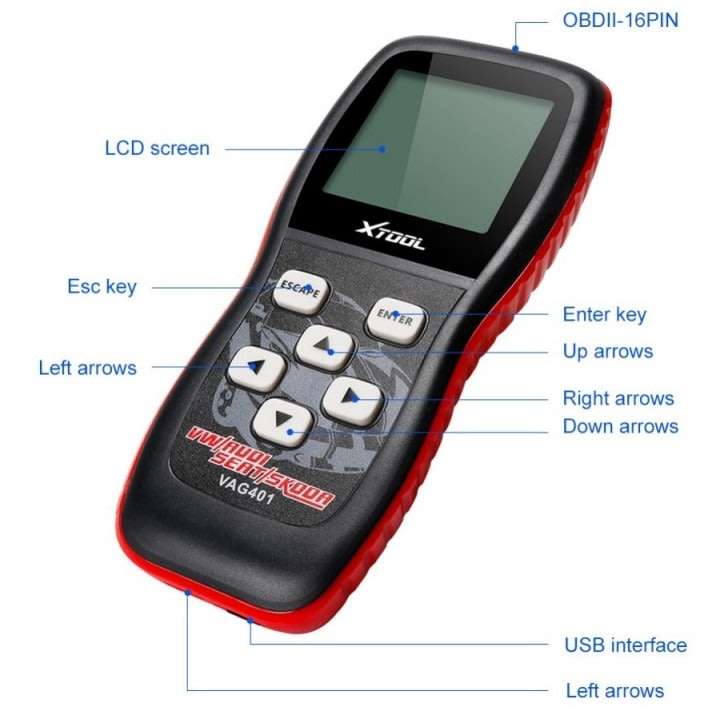

The appearance:

Specification:

• Display: Backlit, 160 x 160 pixel mono-colour screen with contrast adjustment.
• Operation Temperature: 0 ~ 50°C (32~122F°)
• Storage Temperature: -20 ~ 70°C (-4~158F°)
• Relative Humidity: < 90%.
• External Power: 8~18 Volts via DLC.
• Power Consumption: 3W.

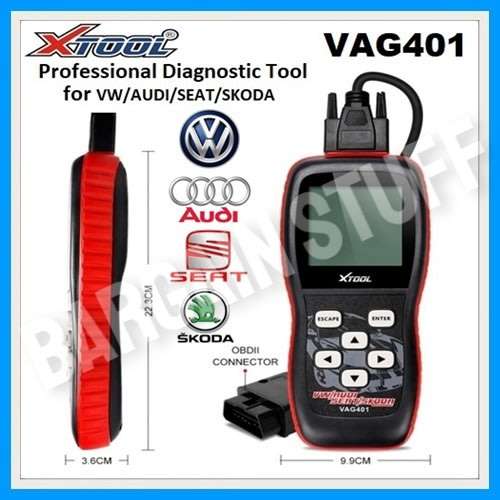

• Mainframe Dimension: 225mm(L) x 98mm(W) x 36mm(H)
• Exterior Memory: TF Card.

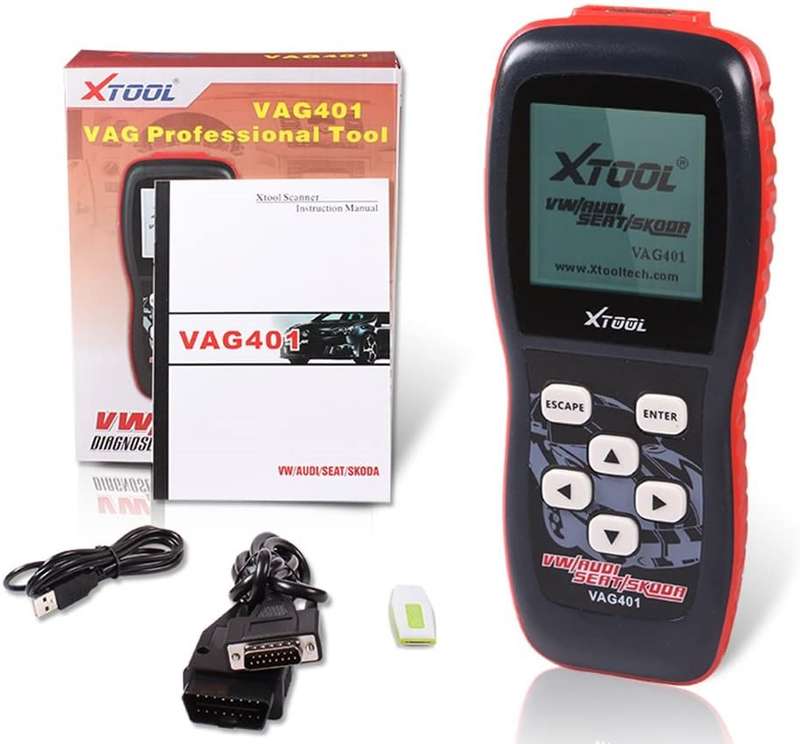

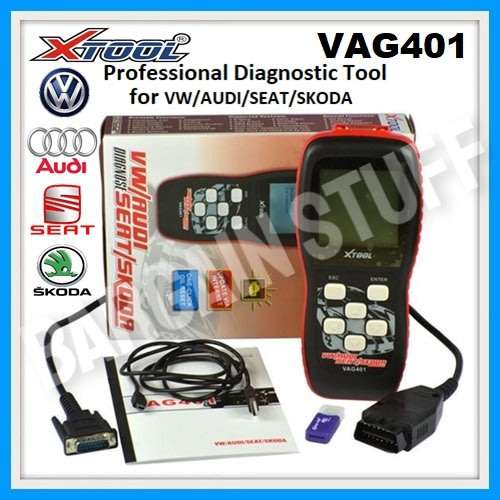

VAG401 Package List:

• VAG401 Main Unit.
• OBD 16Pin Cable.
• USB Cable.
• User Manual.
• Card Reader.
