XWAVE2 BX80 WIRELESS OUTDOOR DETECTOR

XWAVE2 BX80 WIRELESS OUTDOOR DETECTOR

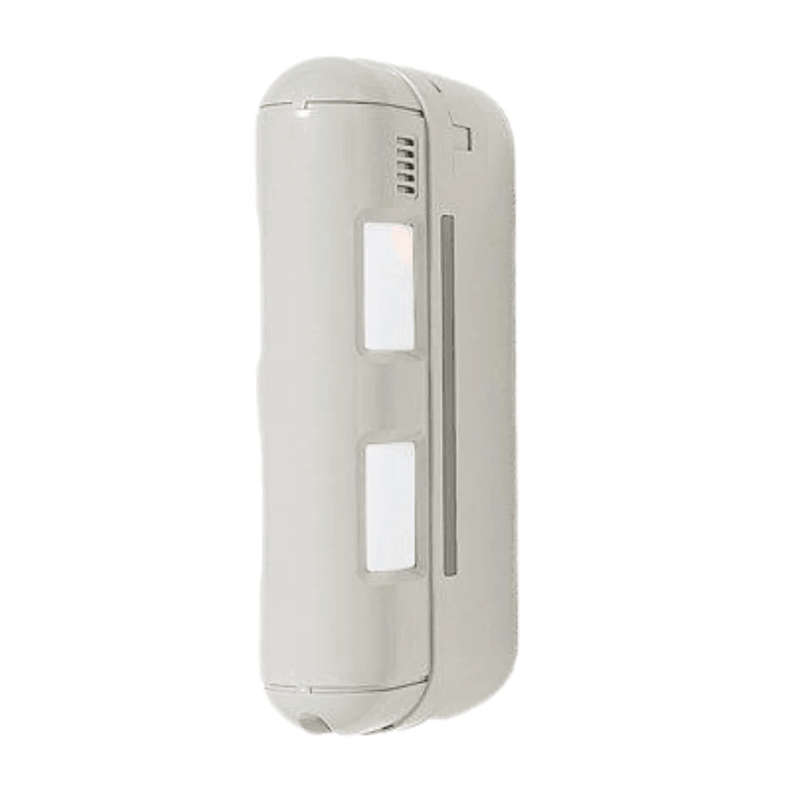

The BX-80NR is a battery-operated outdoor sensor that provides a curtain detection range from 2 to 12m on each side (left and right) which is ideal to protect the immediate boundary of a building. When located on a house or building facade, it will detect people getting right next to the wall or leaning towards the windows making it a perfect early intrusion detection sensor.

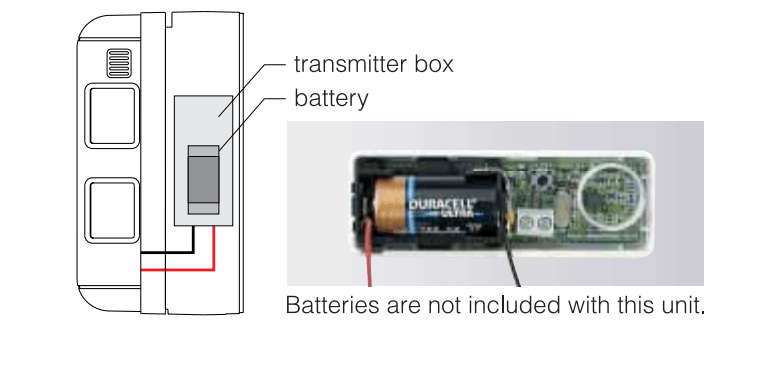

The BX-80R doesn't require any cable or wire at all to be installed. The low-current sensor is powered by batteries (not provided) which can last up to 3 years and has a backbox big enough to accommodate most wireless transmitters available on the market. The BX-80NR can be easily added onto a wireless alarm panel and extend the protection of the house or building to the outside.

Animal tolerant and very stable

The BX series is very stable to use in outdoor environment with small animal around. The sensor sends infrared beams on each side, both the top and bottom of the sensor. The beams need to detect a presence to trigger so a bird or a cat sitting on the window seal will not set the alarm off. Additionally, the BX-80 has extra features such as double conductive shielding, advanced temperature compensation and size judging function to provide reliable and stable detection.

Robust coverage of entrances on the side of a building

SPECIFICATIONS:

• Model: BX-80NR (Battery Operator)
• Coverage: 24m (12m on each side)
• Detection Zones: 4 Zones (2 Zones on each side)
• Sensitivity: 2.0° at 0.6m/sec.
• Detectable Speed: 0.3m - 1.5m/s
• Power Supply: 3 - 9VDC Lithium or Alkaline Battery
• Current Consumption: 3mA (Walktest, LED on) - 15uA (Standby)
• Alarm Period: 2 - 1 sec.
• Alarm Output: Form C-Solid state switch: 10V DC 0.01A (max.)
• Battery Saving Time: Approx. 120sec. or 5sec.
• Tamper Swith: Form C opens when cover removed
• Warm-up Period: Approx. 2min
• LED Indicator: Disable during normal operation
•                        Enable during walktest or LED switch on
• Operating Temperature: -20°C - +50°C
• Environmental Humidity: 95% Max.
• RF Interface: No Alarm 20V/m
• Mounting Height: 0.8m - 1.2m
• Mounting: Wall
• Weight: 520G
• Weatherproof: IP55

APPLICATIONS:

• Buildings
• House
• Garage

FEATURES:
