Name: XXD 2212 1400KV Motor+HW30A ESC+K-power P0090 Servo+Propeller
SKU: 975576
Price: 467.89 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

XXD 2212 1400KV Motor+HW30A ESC+K-power P0090 Servo+Propeller

New

30 were available

Indicative market price: R899.00

R467.89

48% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Customer ratings:

1 ratings

Product code

975576

Bob Shop ID

347923221

Package weight: 0.04 kg
XXD 2212 1400KV Motor+HW30A ESC+K-power Servos+Propeller

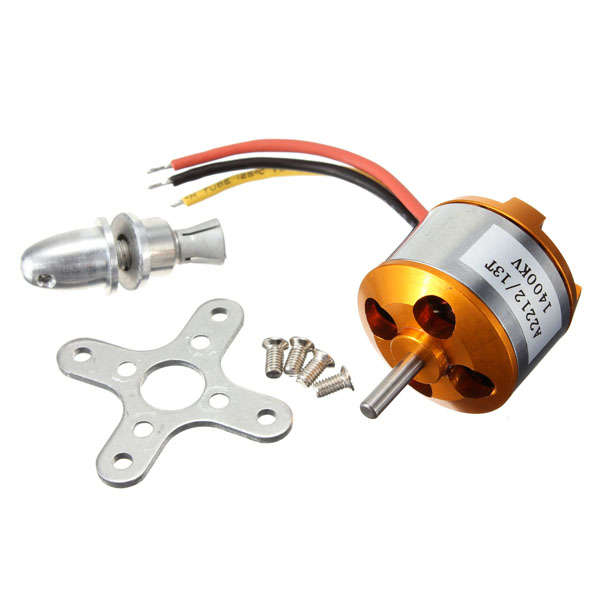

Motor Specification:

Brand Name: XXD

Item Name: XXD A2212 KV1400 Brushless Motor

Item NO.: XXD A2212

Dimensions: 27.8*27mm

Shaft Diameter: 3.17mm

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Weight: 47g

KV: 1400

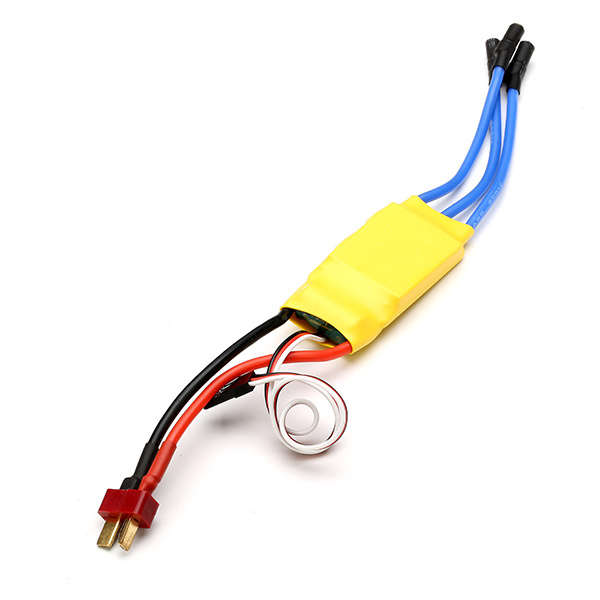

ESC Specification:

Brand Name: XXD

Power input: 5.6V - 16.8V (2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery)

BEC: 2A

Constant current: 30A (Max 40A less than 10 seconds)

Weight: 25g

Dimensions: 45 x 24 x 11mm

Features:

Safe power function:regardless of the throttle stick in any position the motor will not start immediately

Throttle Calibration function:Adapt to different remote throttle travel difference, improve throttle response linearity, with a smooth, delicate feel and excellent speed linear speed

Low Voltage Protection Mode ,Low-voltage protection threshold
Servo Specification:

Brand Name: K-Power

Item Name: P0090

Color: Blue

Weight (grams): 9g

Size: About 32 x 12 x 30mm

Servo Motor Type: Brushless 3 pole

Bearing Type: None

Gear Type: Plastic POM

Servo Case: Hard Plastic

Wire Length (cm): 27

Voltage: 4.8V-6.0V

Speed (6.0v) sec/60°: 0.09

Speed (4.8v) sec/60°: 0.1

Torque (6.0v) kg-cm: 1.8

Torque (4.8v) kg-cm: 1.6

Dead Band Width: 8 usec

Neutral Position: 1500 usec

Usage: Used for RC small planes, helis, boats

Features:

Perfect Low Budget with High Quality servo in 9 grams weight.

Use Metal Gear for Motor and Plastic POM material for other gears.

Has 270mm servo cable (no need to add servo cable extension)

Has TRUE data, easily run at Stall Current at 2.0Amps in 6.0 Volts.

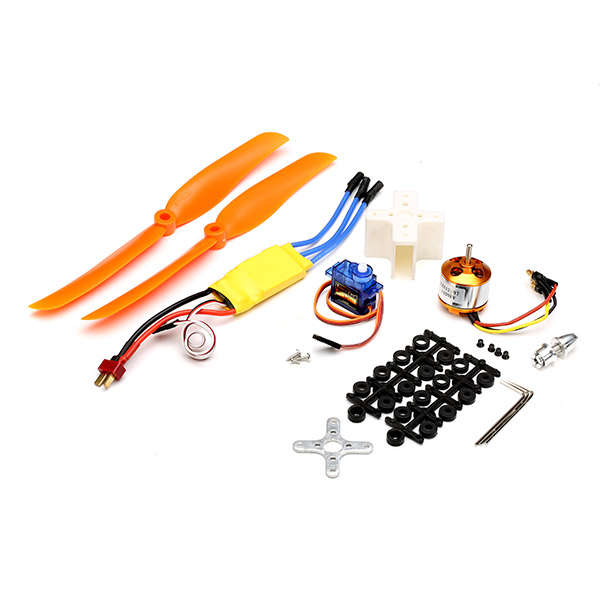

Package Included:
1x XXD 2212 1400KV Motor
1 x XXD HW30A ESC
2 x K-power P0090 Servos

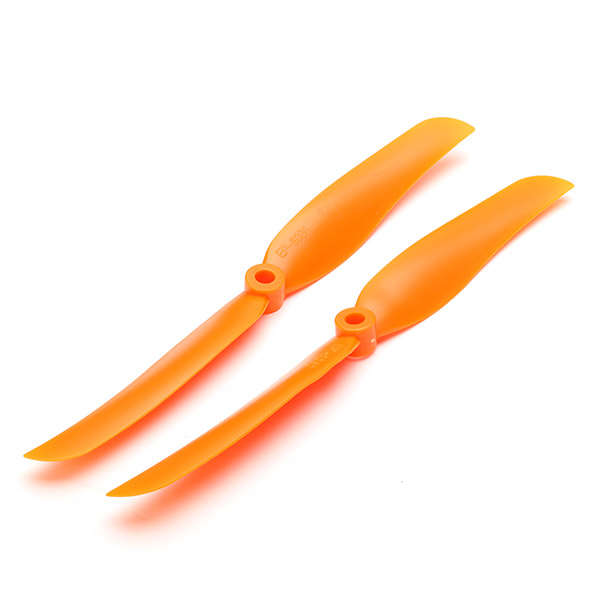

2 x EP8060 Propellers
1 x Motor Holder
3 x Spanners
