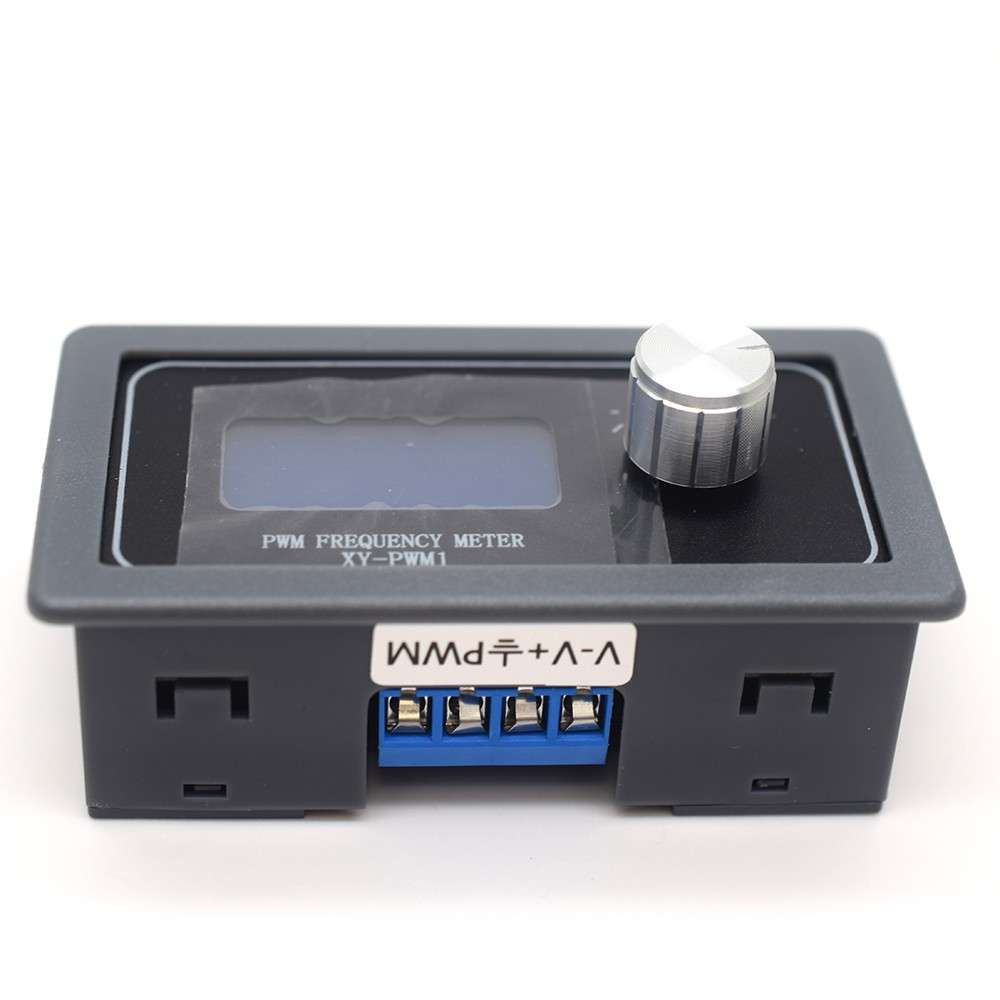

XY-PWM1 Signal Generator Module Adjustable PWM Pulse Frequency Duty Cycle Square Wave

Usage: for experimental development, control motor drives, MCU use, control related circuits (PWM dimming and speed regulation applications).
Module has four independent keys, used to set the frequency and duty cycle, support short press (increase or decrease a unit) and long press (quickly increase or decrease), very simple, set the parameters automatically save, power loss is not lost.
Professional team development, quality can be seen, do not worry about its service life
Output amplitude: PWM amplitude is equal to supply voltage

Module description:
PWM output can set frequency and duty cycle respectively.
Frequency is divided into four areas: automatic switching:
1.XXX (without decimal point): the smallest unit is 1Hz, and the value range is 1Hz~999Hz;The minimum unit of
2.X.XX (decimal point in 100 bits) is 0.01Khz, and the value range is 1.00Khz~9.99Khz;
3.XX.X (decimal point in ten places): the smallest unit is 0.1Khz; and the range is 10.0KHz~99.9KHz.
4.X.X.X (decimal point in ten bits and 100 bits): the smallest unit is 1Khz; and the range is 1KHz~150KHz.E.g. frequency display: 100 indicates PWM output 100Hz pulse;1.01 represents the pulse of PWM output 1.01K.54.1 represents the pulse of PWM output 54.1KHz.1.2.4 indicates the pulse of PWM output 124KHz.Duty cycle:0~100%;All settings are saved by power down.

Parameter setting:
Module has four independent keys, used to set the frequency and duty cycle, support short press (increase or decrease a unit) and long press (quickly increase or decrease), very simple, set the parameters automatically save, power loss is not lost.
Scope of application:
1.is used as a square wave signal generator to generate square wave signals for experimental development.
2.is used to generate square wave signals that control motor drives.
3.generate adjustable pulse for MCU use;
4.generate adjustable pulses to control related circuits (PWM dimming and speed regulation applications).

Specification:
Working voltage: 3.3~30V
Frequency range: 1Hz~150KHz
Frequency accuracy: accuracy is about 2% in each range
Signal load capability: output current can be around 5~30mA
Output amplitude: PWM amplitude is equal to supply voltage
Ambient temperature: -20~+70
Dimensions: 3.7x4.3x7.8cm/1.46x1.69x3.07inch
Color: Black
Quantity: 1 Pc

Package includes:
1 x XY-PWM1 Signal Generator Module
