XY-SK80 Mini Bench Power Supply

Adjustable Bench Power Supply for Students & Hobbyists

The XY-SK80 PSU is a small but super versatile adjustable bench power supply.  It is small enough to fit in your hand but can do the job of an old-school bench supply of 3 times the price and 10 times the weight.  It packs extra functions that you wouldnt find in any bench power supply, like battery charging and monitoring total power (watts), energy (joules), capacity/charge (Ah) and running time (up-time).

The output voltage is adjustable between 0.6V and 36V, with a current of up to 5A.  The XY-SK80 can operate in normal voltage-controlled (CV) or current-controlled (CC) mode where the current can be set/limited in 1mA steps also known as a constant current source.  It can supply output power of up to 80W (e.g. 20V @ 4A) and boasts an efficiency of 88% so there is very little heat being generated.

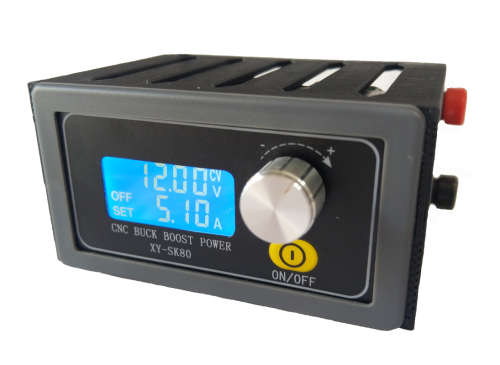

The user interface is simple and elegant, consisting of a bright backlit LCD and a digital knob with turn-to-adjust and press-to-select functions.

As far as extra functionality goes the XY-SK80 will not disappoint.  It can be powered from any DC source, even a USB port, and output any voltage (converting it up or down as needed).  Use it with a USB power bank for a fully portable solution.  From the display, you not only see the voltage and current but can also view the power being consumed by your device (voltage x current) as well as running time (in hours and minutes), energy and charge (in Ah) consumed over the operating time.  You can even set limits to any one of the above and the XY-SK80 will automatically switch off when the limit is reached.

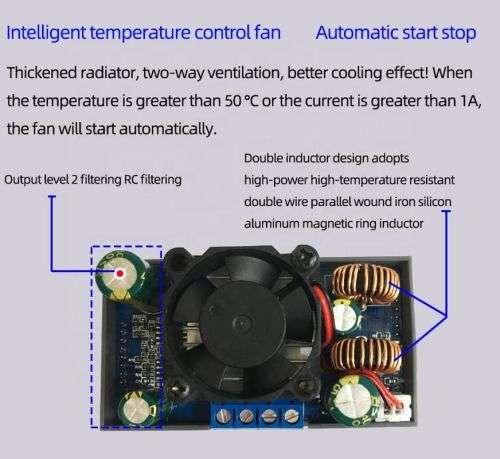

You will not easily damage your XY-SK80 since it has protection against reverse-voltage, short-circuit, over-voltage, over-current, reverse-current and over-temperature with a cooling fan that automatically comes on.

In order to bring this PSU to you at such an affordable price, we 3D-print a housing for it, making a very compact little bench power supply packing a big punch.

Use it as a portable lab power supply on your desk, as a battery charger with automatic shut-off or in the constant-current mode as a direct LED driver.

Specifications:

• Circuit Type: Buck & Boost Converter
• Number of Outputs: 1
• Input Voltage: 6.0V ~ 36V DC (depending onm the power adapter used)
• Constant Voltage Mode (CV): Yes
• Output Voltage: 0.6V ~ 36V DC (depending onm the power adapter used)
• Output Voltage accuracy: ±0.5%+1 byte, Resolution: 0.01V
• Constant Current Mode (CC): Yes
• Output Current: 0 ~ 5A (depending on the power adapter used)
• Output Current accuracy: ±0.5%+3 bytes, Resolution: 0.001A
• Output Power: 80W (under natural heat dissipation)
• Output Frequency: 180KHz
• Conversion Efficiency: 88%
• Extra Features: Input Reverse Voltage Protection, Output Soft start, Anti-backflow Protection, Short Circuit Protection, Over-temperature Protection, Voltage & Current Lock, Capacity/Energy/Run-Time Statistics, Set maximum Capacity/Energy/Running-Time, Automatic fan control, Line regulation, Load regulation.
• Size: 85 x 60 x 50mm
• Weight: 115g


DC Adapter Specifications:

The XY-SK80 PSU can be used with any DC power source.  However, to get you started we supply it with a 24W DC adapter that is sufficient for most general-purpose uses.  For an output current of 5A, you can easily swap out the DC power adapter with one that supports 5A.

• Input Voltage: 100 ~ 240 VAC
• Output Voltage: 24 VDC
• Output Current: 1A


Power Supply Package Includes:

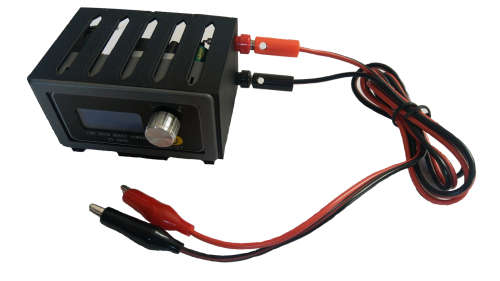

XY-SK80 Adjustable Bench Power Supply, DC power adapter, Red & Black Banana-Alligator clip Cables, User manual.
We have a range of instructional videos to help you get started.

Please note: We keep local stock in South Africa and courier on your payment.
