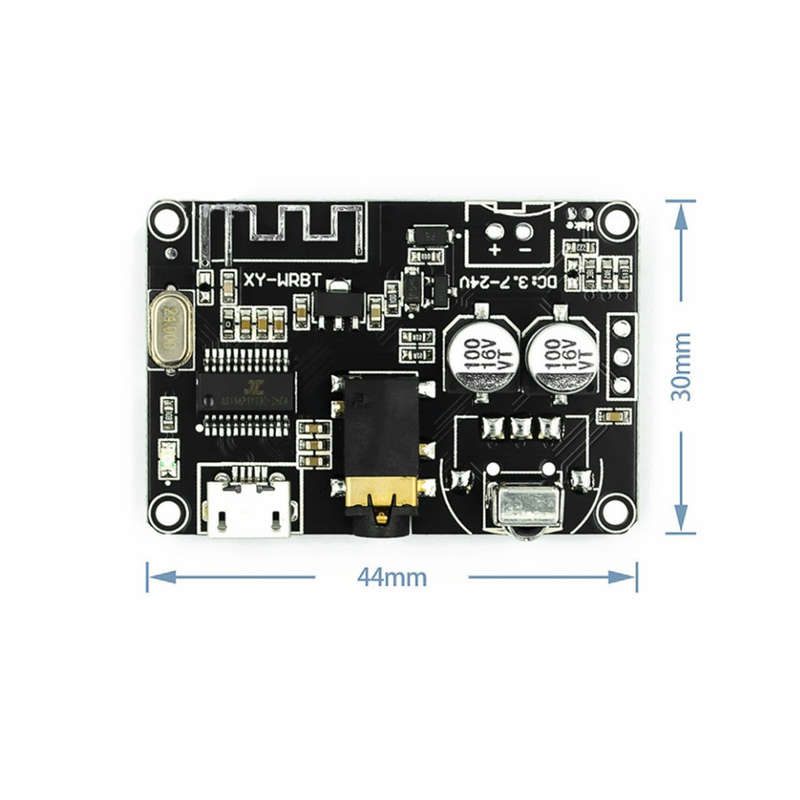

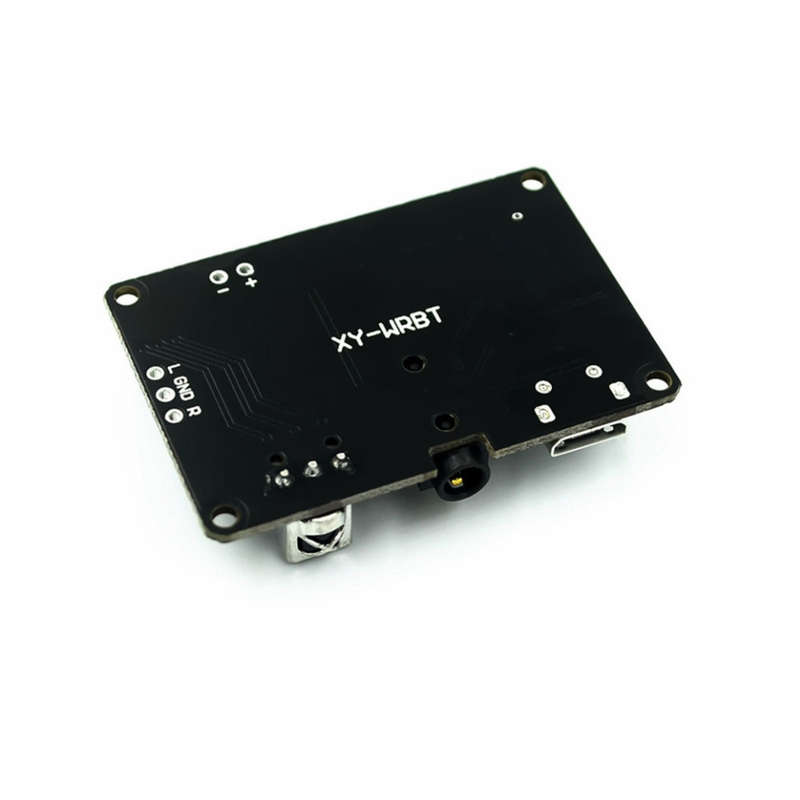

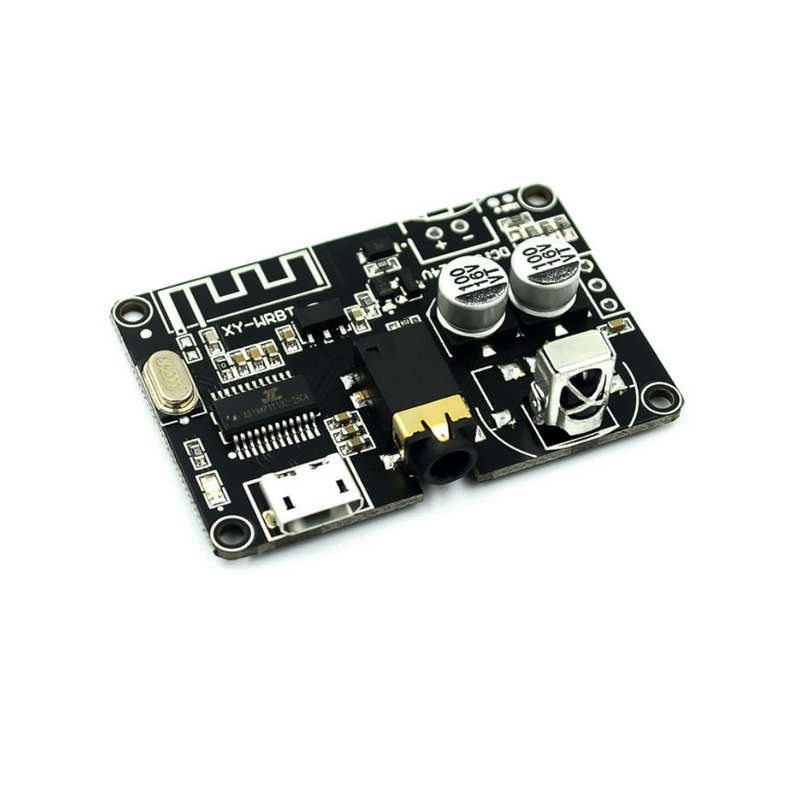

Product Parameters: Product name: Bluetooth decoder board Working voltage: 3.7~24VDC Bluetooth version: 5.0 Transmission distance: 15 meters (visible without obstruction) Signal to noise ratio: a???90dB Distortion: a???-70dB Number of channels: Dual channel (stereo) Audio interface: 3.5mm audio interface Module protection mechanism: Power reverse connection protection
Interface Description: 1. Power supply can use Micro-USB mobile phone charger, 3.7-4.2V lithium battery, 3.7-24V DC power supply, you can choose one of the three. 2. Short-circuit the on/off contact for 2 seconds to set the decoder board to on/off. For battery-powered situations, turning off when not in use will save power and facilitate modification.
Instructions: After the power is turned on, the blue indicator light flashes quickly and enters the Bluetooth mode; after the prompt tone is broadcast, it enters the pairing mode and waits for pairing; the mobile phone Bluetooth searches for XY-WRBT (power amplifier board device name), click XY-WRBT After the connection is successfully connected, the prompt tone will be played, the indicator light is on, and the mobile phone music can be played. The indicator flashes slowly when playing music; after the Bluetooth is disconnected, the amplifier board is ready for the next pairing and enters after the prompt tone is played Pairing mode is waiting for pairing.
Precautions for using 3.7V lithium battery power supply: 1. When using battery power, the decoder board will automatically shut down when the battery voltage is lower than 3.3V, and then short-circuit the on/off contact for 2 seconds to switch on after re-powering or fully charging. 2. When using a battery to supply power, if the battery voltage is too low, a sizzling noise may appear. In this case, the battery needs to be charged. 3. Since there is no lithium battery charging protection circuit on the decoder board, it is recommended to use a lithium battery with a protection board. 4. If your rechargeable battery supports Micro USB direct charging, you can use Micro USB to directly charge the battery. (Battery model LR1130 requires 2 batteries.)

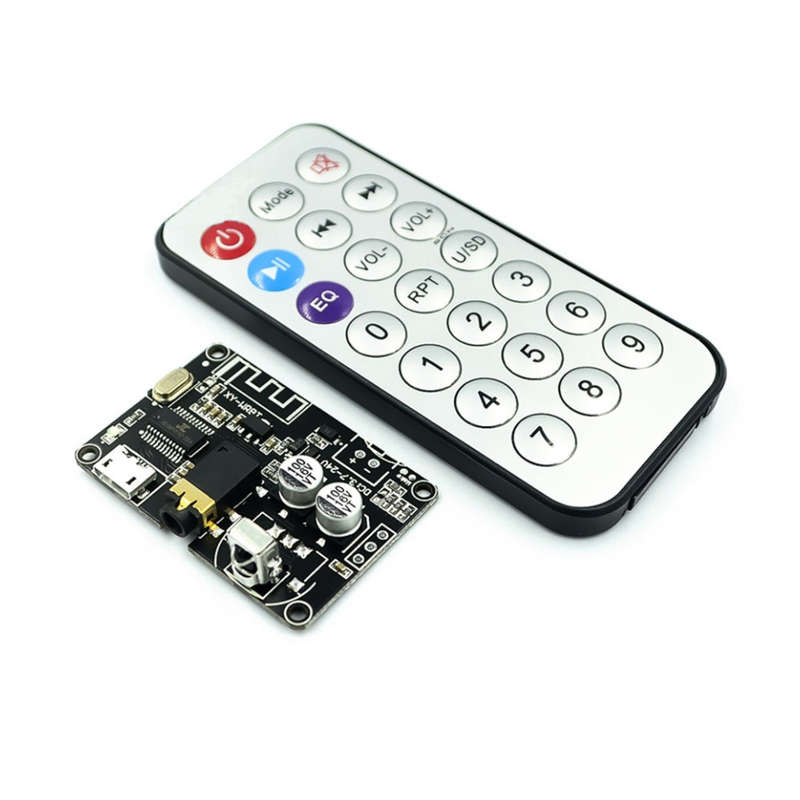

Package Included: (optional) Type1: 1 x Bluetooth decoder board 1 x Remote control
Type2: 1 x Bluetooth decoder board
