Feature:

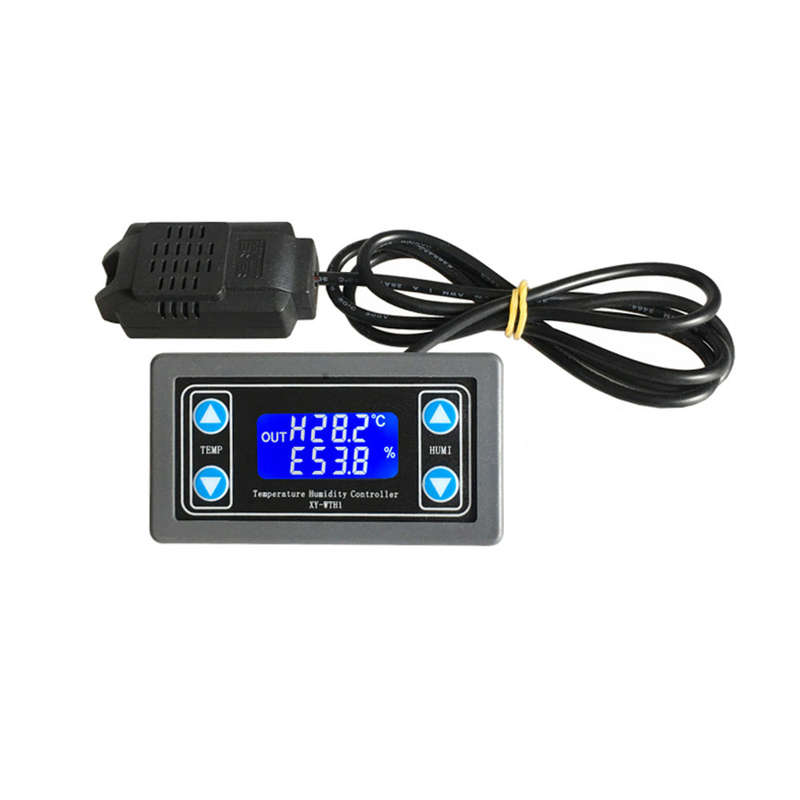

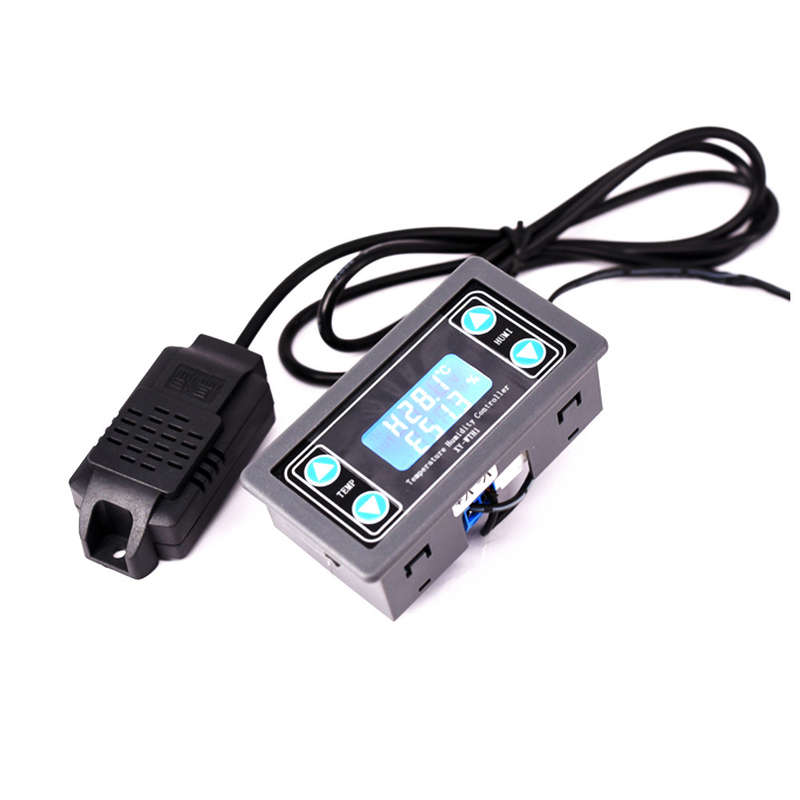

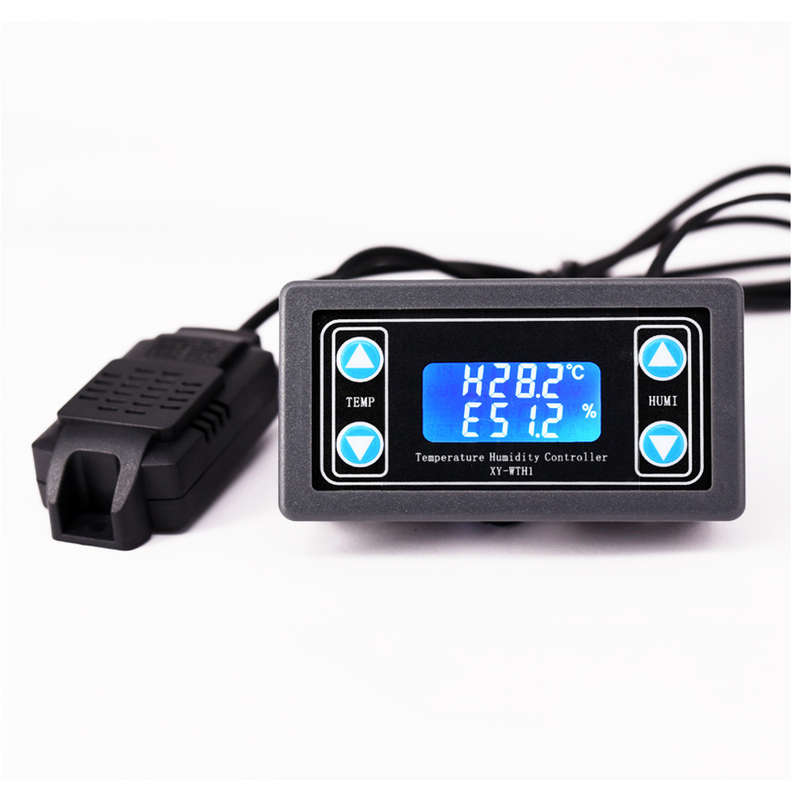

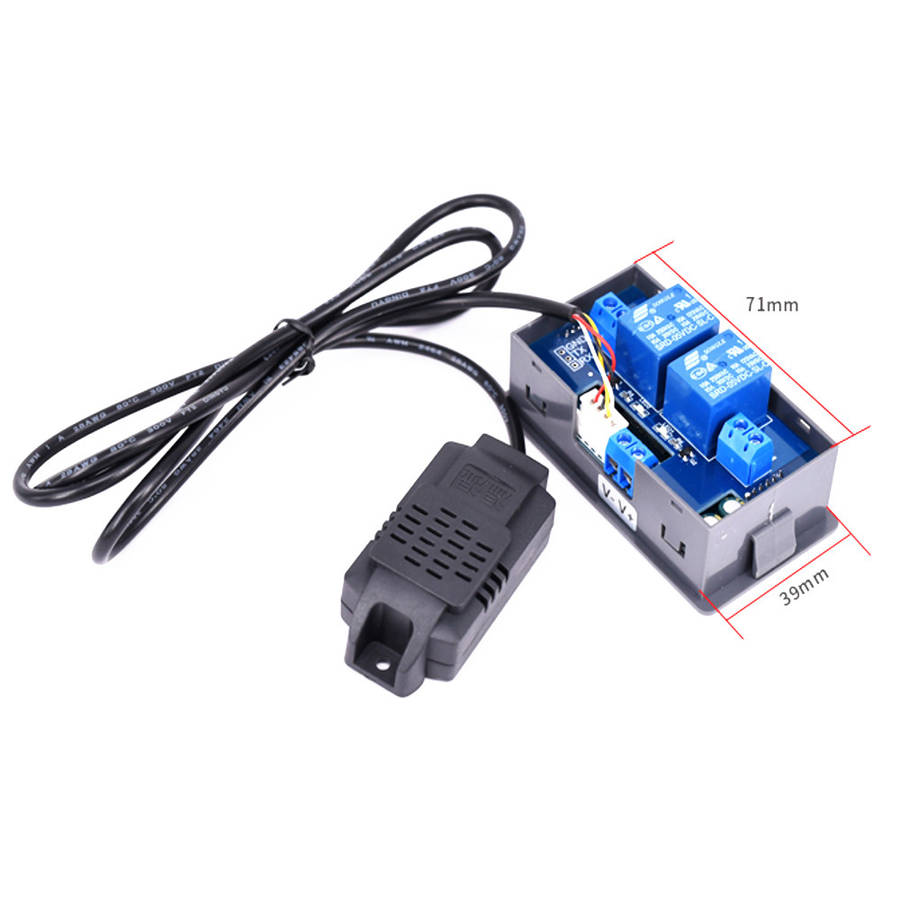

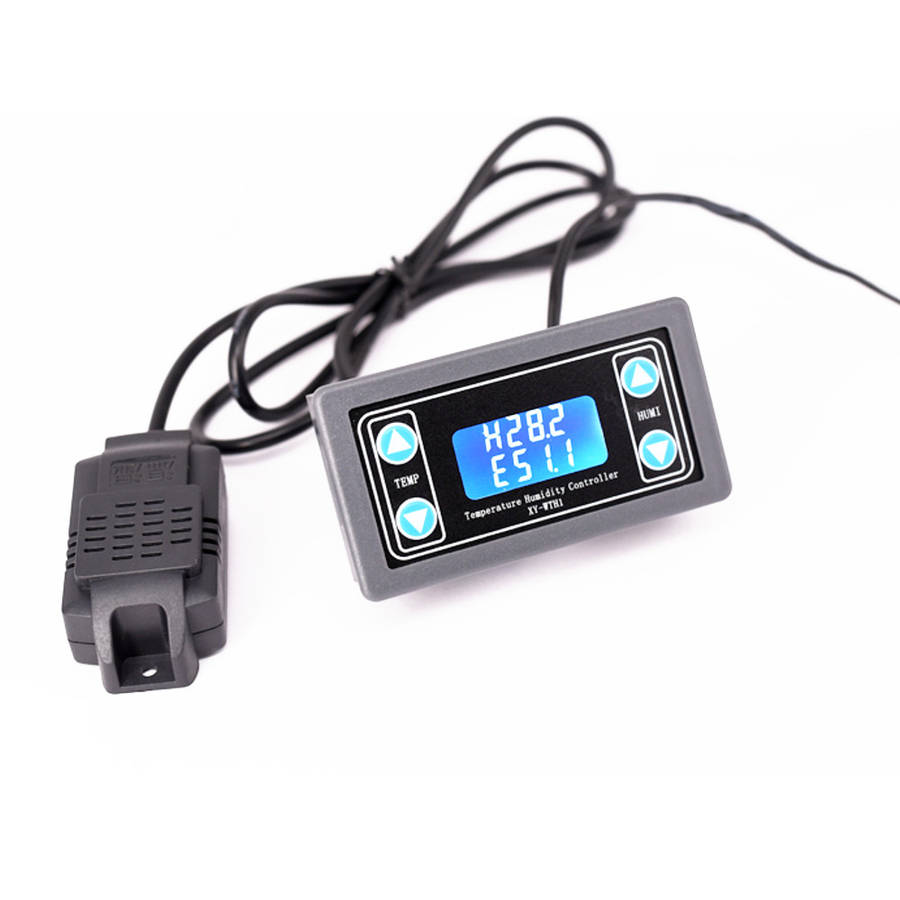

Model: XY-WTH1

Temperature range: -20 ° C ~ 60 ° C

Humidity range: 00%~100%RH

Control accuracy: 0.1 °C 0.1% RH

Detection probe: integrated sensor

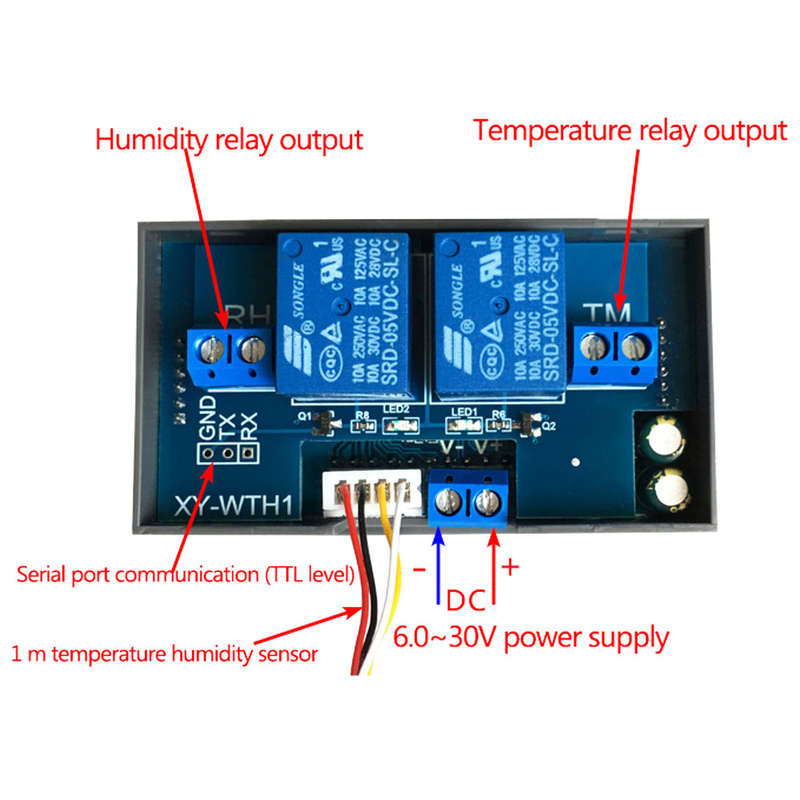

Output type: relay output

Output capacity: up to 10A

Function:

Product features are two main types of classification: the functions of temperature and humidity.

The function of temperature are as follows:

1. The automatic identification of work mode:

The system automatically according to the start/stop temperature, identify work mode;

Start temperature > stop temperature, cooling mode'C'.

Start temperature < stop temperature, heating mode 'H'.

2. Cooling mode:

When the temperature≥Start temperature, relay conduction, red led on, refrigeration equipment begin to work;

When the temperature≤Stop temperature, relay disconnect, red led off, refrigeration equipment stop to work;

3. Heating mode:

When the temperature≤Start temperature, relay conduction, red led on, heating equipment begin to work;

When the temperature≥Stop temperature, relay disconnect, red led off, heating equipment stop to work;

4. Temperature correction function OFE (-10.0 ~ 10):

The system is working for a long time and may be biased, through this function correctly, the actual temperature = measuring temperature + calibration value;

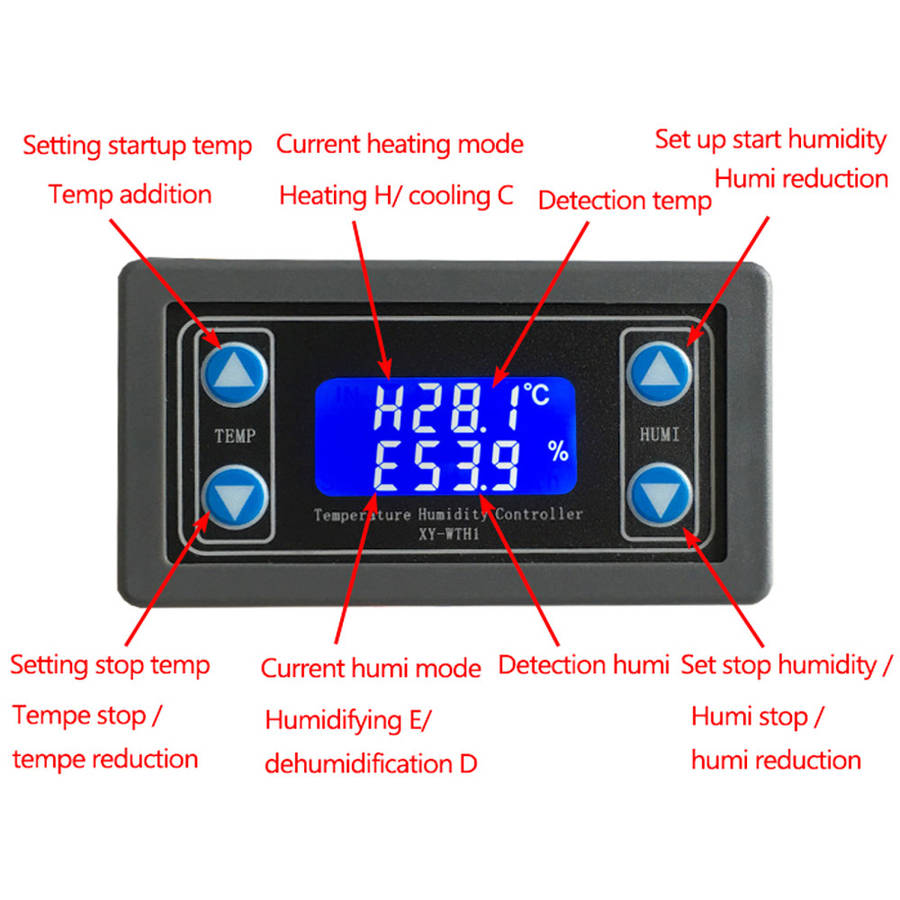

How to set the start/stop temperature:

1. In the running interface, Long Press ' TM+ ' key more than 3 seconds, into the start temperature settings interface, can be modified by TM+ TM-key, to be modified, waiting for 6s automatic exit and save;

2. In the running interface, Long Press ' TM-' key more than 3 seconds, into the stop temperature settings interface, can be modified by TM+ TM-key, to be modified after the parameters, waiting for 6s automatic exit and save;

The humidity function is as follows:

1. The automatic identification of work mode:

The system automatically according to the start/stop humidity, identify work mode;

Start humidity > stop humidity, dehumidification mode'D'.

Start humidity < stop humidity, humidification mode 'E'.

2. Dehumidification mode:

When the humidity ≥ Start humidity, relay conduction, green led on, dehumidification equipment begin to work;

When the humidity ≤ Shop humidity, relay disconnect, green led off, dehumidification equipment stops to work;

3. Humidificationmode:

When the humidity ≤ Start humidity, relay conduction, green led on, humidification equipment begin to work;

When the humidity ≥ Shop humidity, relay disconnect, green led off, humidification equipment stops to work;

4. Humidificationcorrection function RH (-10.0 ~ 10%):

The system is working for a long time and may be biased, through this function correctly, the actual humidity= measuring humidity + calibration value;

How to set the start/stop humidity:

1. In the running interface, Long Press ' RH+ ' key more than 3 seconds, into the start humidity settings interface, can be modified by RH+ RH- key, to be modified, waiting for 6s automatic exit and save;

2. In the running interface, Long Press ' RH-' key more than 3 seconds, into the stop humidity settings interface, can be modified by RH+ RH- key, to be modified after the parameters, waiting for 6s automatic exit and save;

Package includes:

1 x Module with Sensor
