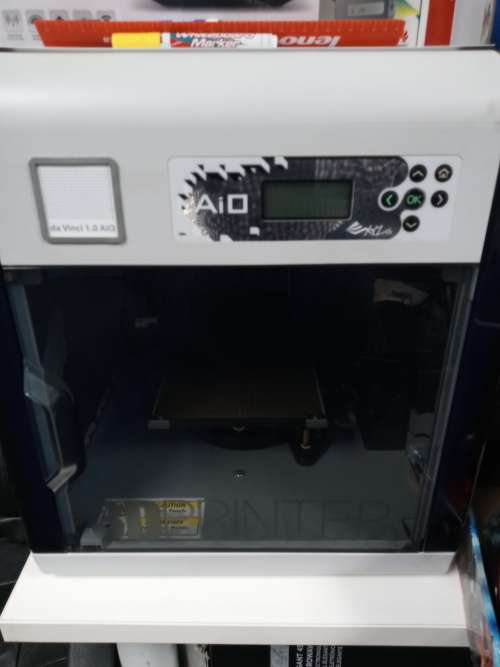

Demo/display
Tested ok
Unit working
Front cover broken
No filaments
Technology
FFF (Fused Filament Fabrication)
Maximum Build Volume (WxDxH) - 20 x 20 x 19 cm
Resolution
Fine 0.1 mm (100 microns)
Standard 0.2 mm (200 microns)
Speed 0.3 mm (300 microns)
Ultra Fast 0.4 mm (400 microns)
Print Head
Single Nozzle
Nozzle Diameter - 0.4 mm
Filament Diameter - 1.75 mm
Filament Material - ABS / PLA
Display Panel Type - 2.6 FSTN LCM
Language
Multi Language Connectivity - USB 2.0
Scanner Technique
Slit Laser Triangulation
Dual Scan Engine - 2M Pixels Camera & Laser Diode Module
Scan Size (Ø x H) - 15 x 15cm
Scan Accuracy
0.25 mm (250 ?m)
Scan Resolution - 0.25 mm (250 ?m)
Turntable payload - 6.6 lb / 3kg (Max.)
Print Software
XYZware
File Types .stl , XYZ Format (.3w)
OS Support - XYZware
Windows XP (.Net 4.0 required) and Windows 7 above (for PC)
Mac OSX 10.8 above 64-bit (for Mac)
Note: Stardard VGA driver on operating system, or a graphics card doesn't support OpenGL 2.1, may cause unknown error in XYZware.
Scan Software
XYZscan
File Type .stl , .das Format
OS Support - XYZscan
Windows 7 above (for PC) Mac OSX 10.8 above-bit (for Mac)
Hardware Requirements (for PC/Mac)
X86 32/64-bit compatible PCs with 4GB+ DRAM (for PC)
X86 64-bit compatible Macs with 4GB+ DRAM (for Mac)
