Description:
YA-701-GSM-4 GSM Wireless Home Intelligent Alarm System GSM850/900/1800/1900MHz
This GSM system with 120wireless zones and digital clock display,is suitable for both home and commercial use. It uses the advanced GSM digital signal processtechnology, GSM Wireless intelligent alarm system It has highly integrated digital voice, SMS,self-learning wireless communication code, remote appliance control and text messaging technologies. It is a choice of stability, reliability, security, and user friendliness. Features are very practical, cost-effective, completed configuration and ease of use.
This alarm can integrate with a lot of alarm accessories including door sensor, smoke detectors, gas detectors, emergency buttons and other accessories to build a powerful security setup. It has been widely used in homes,factories, schools, shops, convenience stores, financial and banking workplace, community centre and residential area to provide protection to valuable assets.
Features:
1. Digilal clock display with two groups alarm function,time optional.
2. Support GSM mobile network, provide redundancy for extra stability.
3. Allow up to 120 wireless defense zones and 2 wired zones.
4. Each can be defines as one of the 8 zone types including NORMAL,STAY,INTELLIGENT,EMERGENCY,CLOSED,HELP SENIOR,WELCOME and CHIME.
5. Fout sets of schedules arm / disarmed funcition, each time you can select the include period of time and different defense zond, eliminating of need of the manual procedure, realizing the beauty of automatic controls.
6. Support configuration via keyboard,phone (handset)or SMS messages to system.
7. 6 group voice alarm phone number for alert calling, 3 group phone number for help senior, 6 group for SMS messaging,numbers saved inside EEPROM without lost upon power failure.
8. Different zones can dial a pra-set telephone number.
9. Support ISD automatic voice mailbox for playback message upon alert,Maximum length of voice message is 10 seconds.
10. Telephong (phone)long-distance telephone control for arming,disarming,monitoring,remote announcement.
11. 1 set of normally open signal outputs, relay linkage output, home appliances remote control can be realized .
12. Wireless intelligent study coding, compatible with PT2262 normal encoding and a 1527encoding, convenient and flexible fot adding or reducing accessories. Maximum support 150 remote control and 150sensors.
13. Unique black box features, you and display most recent 72 disarmed records and 102 recent alarm recording, Accurately shows the alarm time and control code.
14. Built-in Ni-HI rechargeable battery and autometically switchable upon power failure, and notification will be sent via SMS .
15. Panel integrated with quad-band GSM/GPRS industrial graded module, stsble and reliable.
Fitting parameters:
| Input voltage | DC9V-12V |
| Standby currents | < 25 mA |
| Alarm current | < 450 mA |
| Wireless frequency | 315/433MHZ , 2262/1.5-4.7M , EV1527/300K |
| GSM Format | Support GSM850/900/1800/1900MHz (option) |
| Backup battery | NI-HI AAA x 6 DC7.2V |
| Alarm loudness | 110dB |
| Detailed parameters | The alarm should be compatible with PT2262, PT2240 and EV1527. Using PT2262 encoding, the resistance is recommended 1.5M-4.7M; using with EV1527 encoding, the resistance by 300K
|

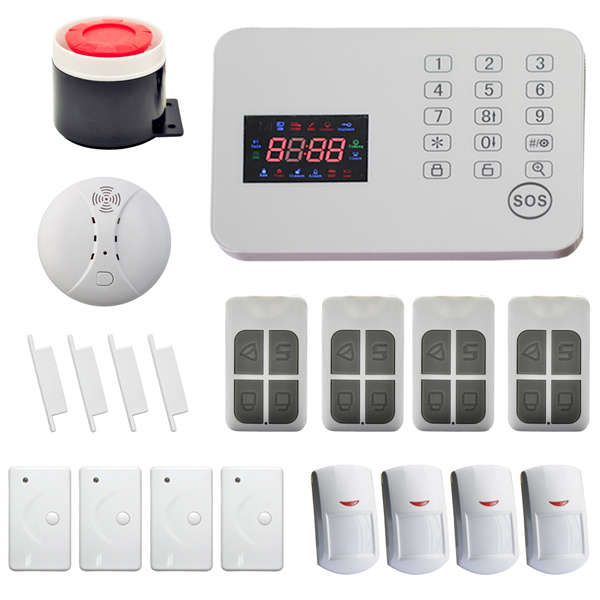

Package includes:
Panel x 1
PIR x 4
Door Sensor x 4
Remote x 4
Power Adapter x 1
Siren x 1
Smoke Alarm x 1
Details pictures:
