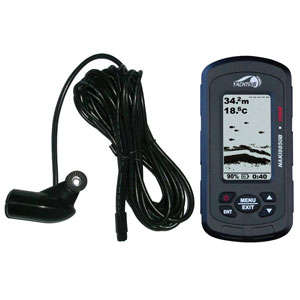

Yachting DF55 Portable B&W Fishfinder with transducer

Head Unit with Transducer

Specifications:

1. Display
Display size: 3.0in / 76mm, High-contrast Dot Matrix LCD
Display Resolution: 128 x 64 (H x W)
Backlighting: 0~100% adjustable range

2. Sonar
Depth capability: 100m
Sonar frequency: 190KHZ
Sonar Output Power: Max W
Sonar Beam Angle: 45degree
Sonar Alarms: Fish / Max and Min Depth

3. Technical and casing
Back-up memory: Built-in memory stores sonar settings when the unit is turned off.
Units: Meter / feet, celsius / Fahrenheit
Operational Temperature: From -10C to 50C (14 Fto122 F)
Sensor Cable Length: 6 M (20 Feet)
Unit Dimensions: 138mm x 69mm x 32mm.
Casing: Sealed and waterproof

4. Power
Power Supply: 4 x AAA Alkaline Batteries
Battery Life: 20 Hours Continuous Use

Features
1) Switchable Fish Identification mode
2) Fish/depth Alarms.
3) Adjustable Sensitivity: .
4) Adjustable Back Light
5) Adjustable Display Contrast
6) Adjustable Chart Speed.
7) Auto / Adjustable Depth Range
8) Depth Units: Meters/Feet.
9) Temperature Units: Celsius/Fahrenheit
10) Fresh/Salt Water Environment
11) True Changing Water Bottom Graph.
12) Big/small fish identification
13) Waterproof casing design
