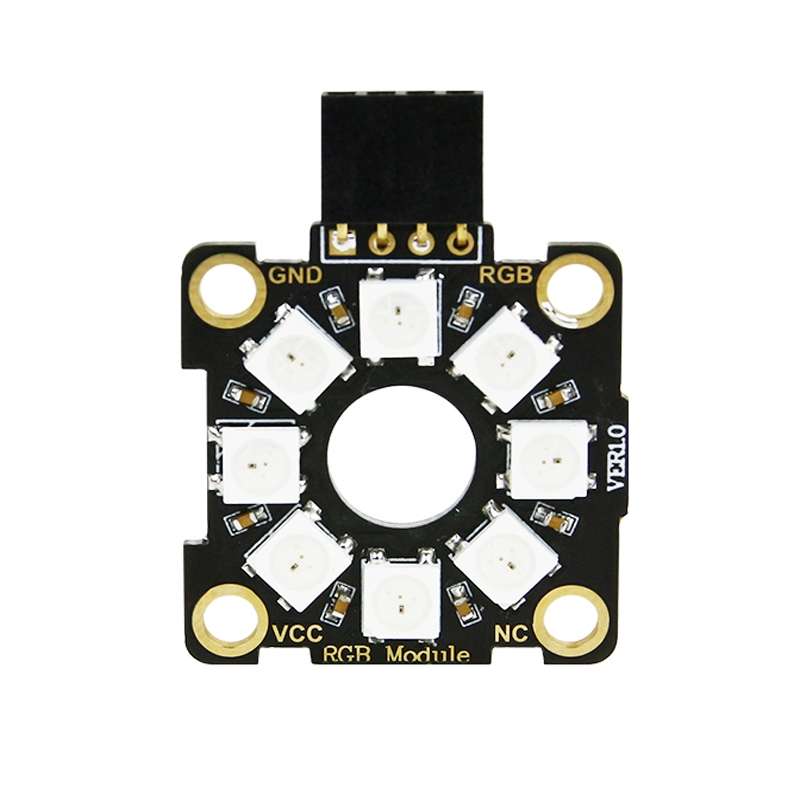

Yahboom 8-bit Full-color RGB Light Ring Module Microbit Raspberry Pi Pico Development Board

TBD06038608

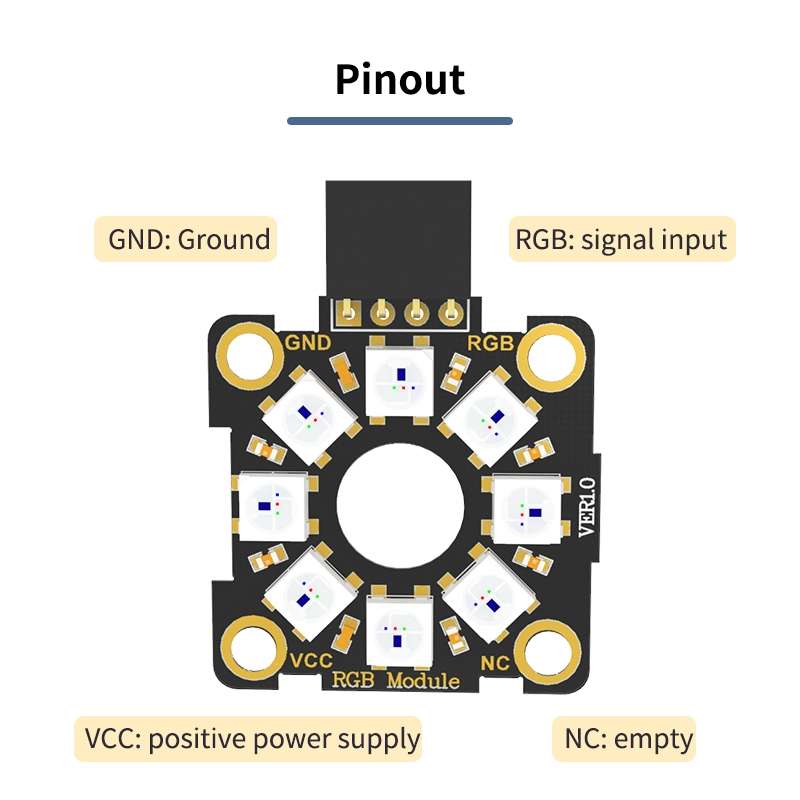

1. VCC: power supply interface, can be connected to 3.3V, 5V
2. GND: ground
3. RGB: signal input
4. NC: empty interface, no connection required
5. Working voltage: 3.3V/5V
6. Module size: 28.7x30mm
7. RGB lamp model: TX1812C

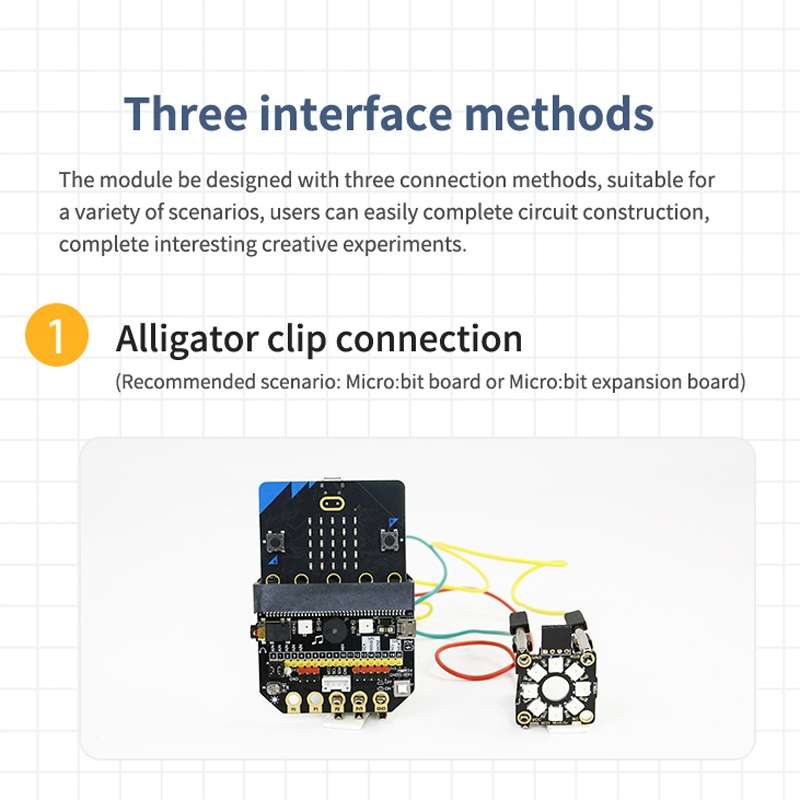

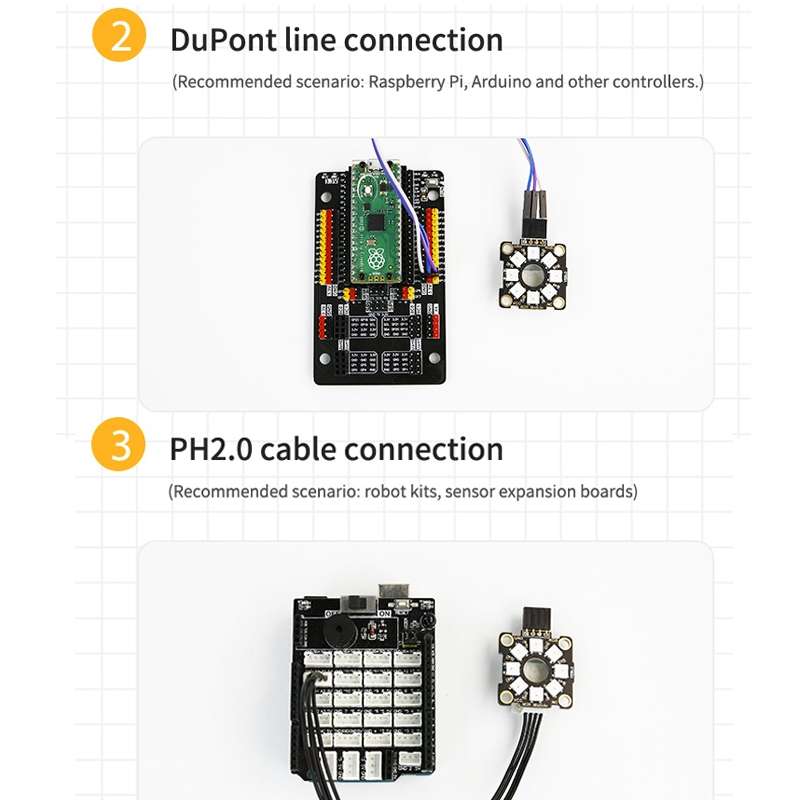

8. Interface mode: crocodile clip interface, DuPont line interface, PH2.0 cable interface
9. The module comes with 8 RGB lights and supports three connection methods: crocodile clips, Dupont wires, and PH2.0 wires

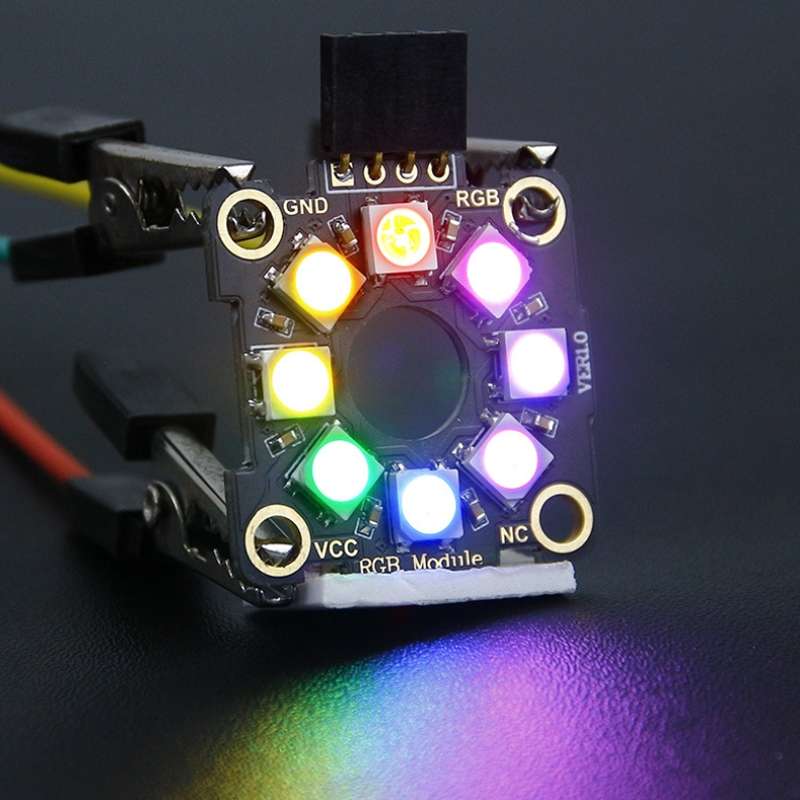

10. The user can control it to change into any color through programming to realize the effects of water lamp, marquee lamp, breathing lamp, etc.
11. Tutorial materials for Micro:bit, Arduino, and Raspberry Pi will be provided for user reference
12. The module is composed of 8 programmable RGB lights. RGB lights are independently addressable full-color light sources combined by integrated circuits and LEDs. Each color of R (red), G (green), and B (blue) is divided into 256 levels of brightness. It has the characteristics of small size, high brightness, programmable, and colorful lights. It is often used in lighting decorations, festival lights, and project indicators
