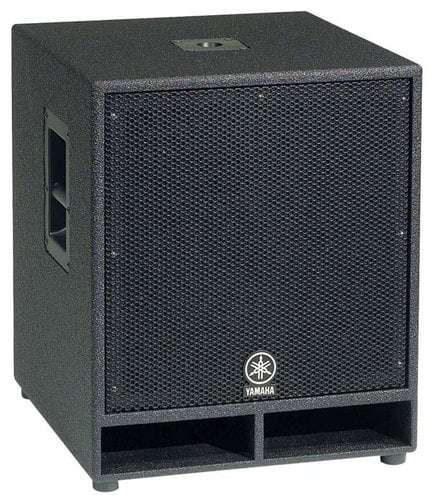

The Yamaha CW115V is a Concert Club V Series 15" 1000W peak (4 Ohms) subwoofer that features a frequency response down to 35 Hz, and an integral pole socket for stand mounting full-range speaker models.
The Concert Club V series and Concert Club VC series speakers provide dual phone jacks as well as dual Speakon™ connectors for input and parallel connection. A high-performance PA system can conveniently be created simply by connecting a pair of speakers to an EMX series powered mixer using the phone jack outputs on a box-type model, or the Speakon™ connectors on a console model. When used in conjunction with P series power amplifiers and an MG series mixing console, you have the flexibility to add monitor speakers and a subwoofer to create a versatile live sound system. The YSProcessing (Yamaha Speaker Processing) switch provided on the EMX series powered mixers and P series amplifiers enhances performance with single-woofer models (S112V, S115V, C112V(A), C115V(A), and monitor models) for even greater sonic impact.
The Concert Club series has achieved worldwide acclaim for its superior sound and durability, becoming a standard for audio quality and reliability. Painstaking selection of parts and components, optimized wood enclosures, and a thorough reevaluation of speaker capacity have given the new Concert Club series a robust sonic presence that takes their performance to a new level. Even as your system changes and expands years down the road, you can expect the Concert Club series to deliver consistently excellent audio quality.
A classic, unpretentious design makes these speakers virtually timeless. The slightly rounded front grille enhances both style and durability. The "C" version Concert Club V series speakers feature a stylish appearance with a front grille that hides the speaker and a spray-finish exterior that can be repainted to blend in with any decor.
Yamaha CW115V Specifications:
- Speaker Type: 15" subwoofer
- Frequency Response (-10dB): 35 Hz - 2 kHz
- Components:
- Power Rating:
- Noise: 250W (EIA)
- Program: 500W
- Peak: 1000W
- Nominal Impedance: 4 Ohms
- SPL:
- Sensitivity (1W; 1m on axis): 95dB SPL
- Continuous (Calculated): 119dB SPL
- Peak (Calculated): 125dB SPL
- I/O Connectors: 2x Phone, 2x speakON
- Shape: Rectangular
- Finish: Sprayed finish
- Handle: 2
- Pole Socket: 1x 1-3/8" (35 mm)
- Dimensions:
- Width: 19-5/8" (500 mm)
- Height: 23-7/8" (607 mm)
- Depth: 20-3/4" (528 mm)
- Net Weight: 61.7 lbs (28 kg)
