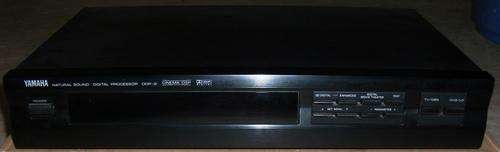

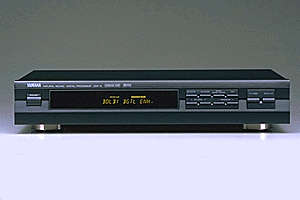

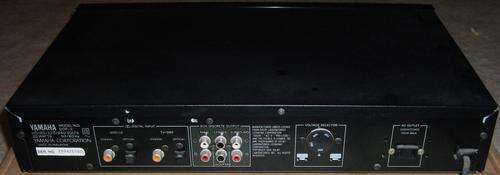

Yamaha DDP-2 Natural Sound Digital Processor
| |
| Output Level/Impedance | Main L/R, 1 kHz, 0 dB Input = 2 V/1.2 kohms Center, 1 kHz, 0 dB Input = 2V/1.2 kohms Surround L/R, 1 kHz, 0 dB Input = 2V/1.2 kohms Subwoofer, 50 Hz, 0 dB Input = 6V/1.2 kohms |
| Input Impedance | Coaxial = 75 ohms |
| Total Harmonic Distortion | Main L/R, 1 kHz = 0.01% or less Center, 1 kHz = 0.01% or less Surround L/R, 1 kHz = 0.01% or less Subwoofer, 50 Hz = 0.01% or less |
| Frequency Response | Main L/R = 20 Hz - 20 kHz +/-1 dB Center = 20 Hz - 20 kHz +/-1 dB Surround L/R, Large = 20 Hz - 20 kHz +/-1 dB |
| Signal-to-Noise Ratio, IHF-A | Main L/R = 105 dB or more |
| Filter Characteristics | H.P.F. Main L/R = fc/90 Hz, 12 dB/octave H.P.F. Center = fc/90 Hz, 12 dB/octave H.P.F. Surround L/R, Small = fc/90 Hz, 12 dB/octave L.P.F. Subwoofer = fc/90 Hz, 24 dB/octave |
| Dimensions (W*H*D) | (435 * 86 * 273mm) (17-1/8 * 3-3/8 * 10-3/4) |
| Weight | 4.0 kg / 8 lbs. 13 oz. |
