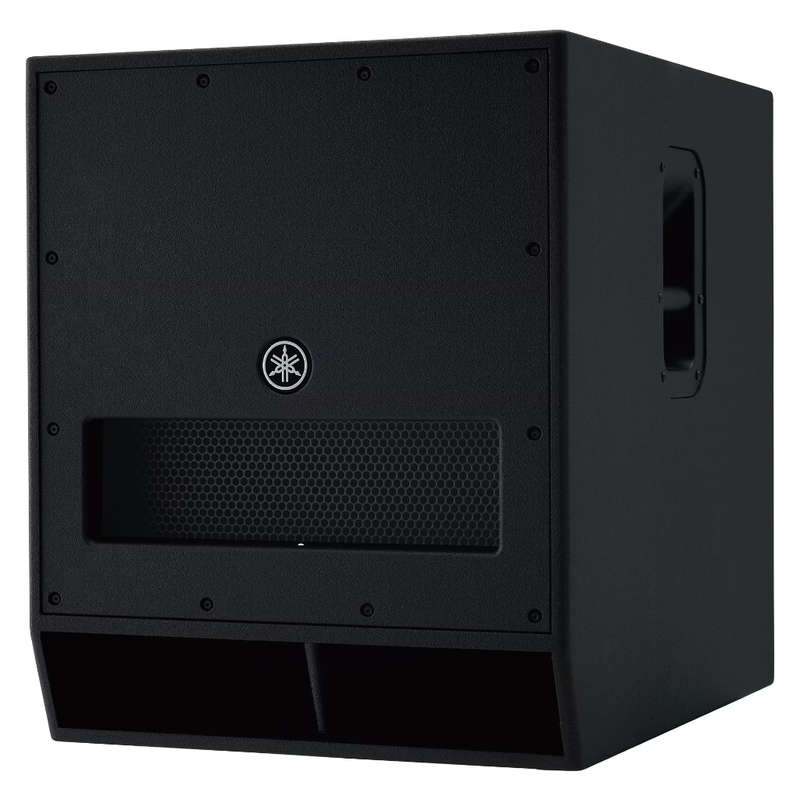

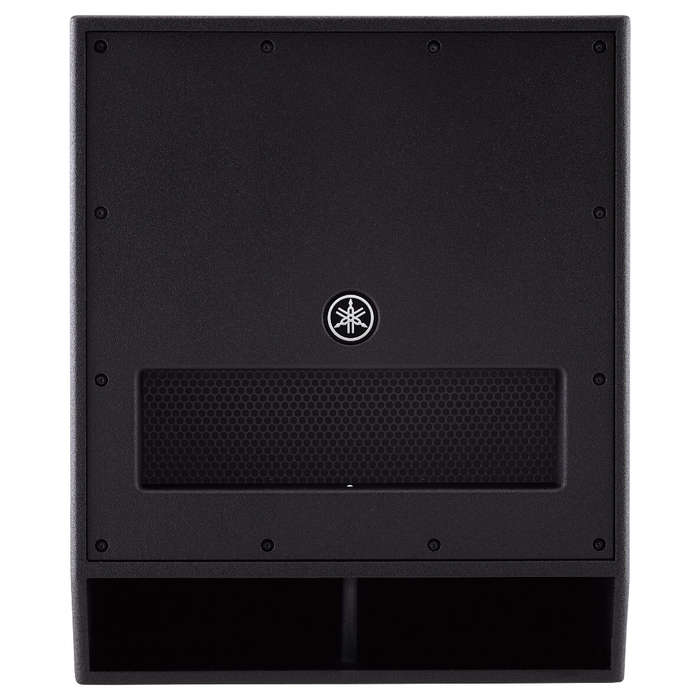

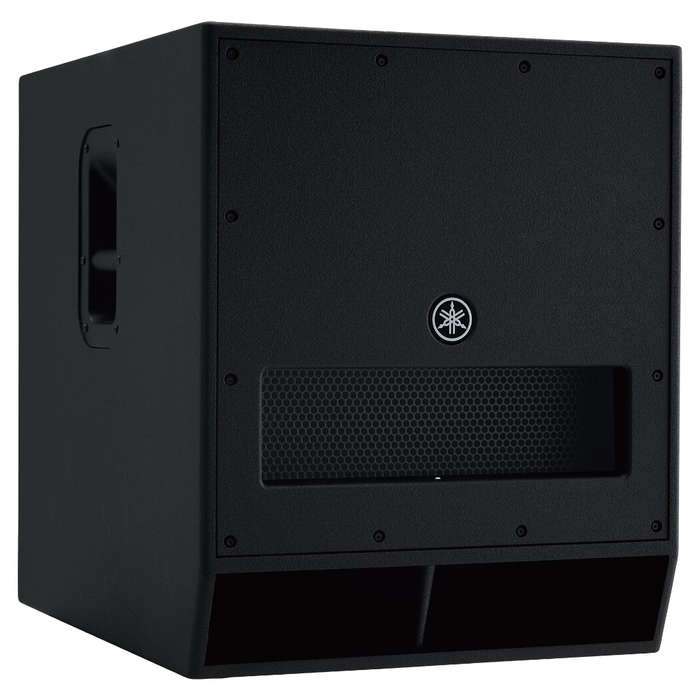

Yamaha's Next-generation 15" DXS Sub
Featuring an upgraded electronics section that delivers more power and low-frequency extension, the Yamaha DXS15mkII 15" active subwoofer is even more formidable than its predecessor. The DXS15mkII combines a super-efficient 800-watt Class D amplifier with a rugged, highly efficient bandpass cabinet that assists the DXS15mkII in achieving a remarkable 135dB SPL rating. Low-frequency response has also been extended down to 40Hz. The DXS15mkII features Yamaha's D-XSUB DSP processing, which provides higher output and improved frequency response in a compact, lightweight enclosure that's ideal for smaller stages. With higher maximum SPL, extended low-frequency range, and the clarity and punch you've come to expect from the DXS Series, the Yamaha DXS12MKII gives your sound the professional edge.
High-power Class D amplifier
The Yamaha DXS15mkII employs an 800-watt (continuous) Class D amplifier to serve up rich, solid bass reinforcement. The ample wattage doesn't just let the DXS15mkII get loud, it gives it the headroom needed to reproduce the dynamics and nuances of your music. And because the amplifier doesn't require active cooling, you can run the DXS15mkII at high volume levels for extended periods without distortion or thermal shutdown.
Stellar sound quality
Yamaha used a lot of innovative technology to get the maximum sonic quality out of the DXS15mkII powered subwoofer. For example, Yamaha's proprietary D-XSUB processing lets you extend the frequency response of the DXS15mkII for when you really need maximum bass impact, incredibly useful in larger rooms. Also, the acoustically-optimized wooden enclosure is designed to resist distortion at high output levels, greatly enhancing sound quality even at extreme levels.
Easy to integrate

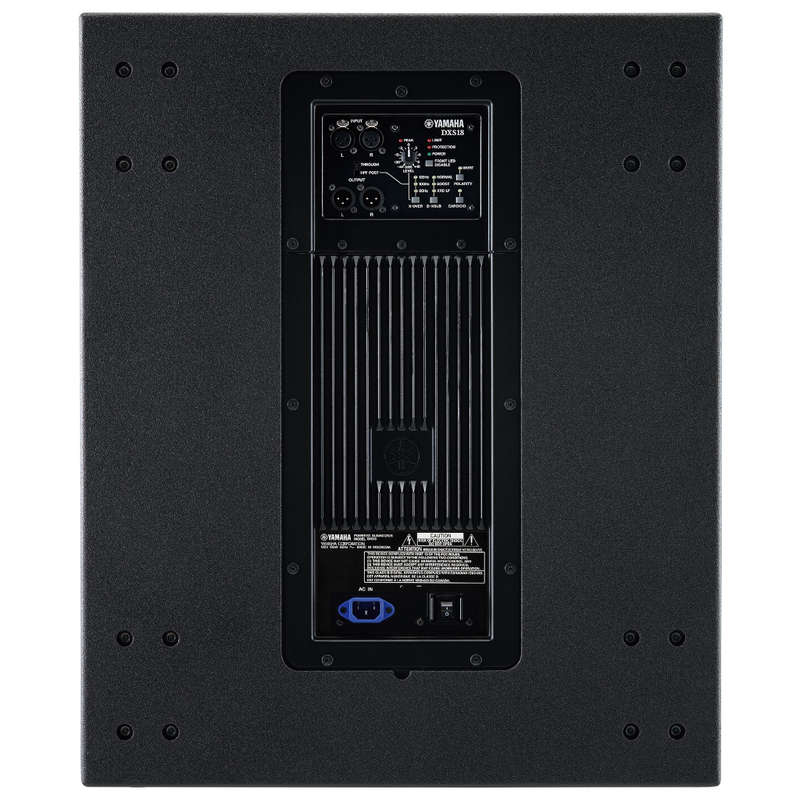

It's easy to add the DXS15mkII powered subwoofer to your DRX loudspeaker system, or any other powered system for that matter. Dual XLR inputs let you connect to your mixer, crossover system, or main speaker throughputs, and parallel XLR outputs make it easy to add additional DXS subwoofers for even more ground-shaking bass reinforcement. On previous models, these outputs passed full-range audio from the inputs to any connected speakers. On the DXS15mkII, the outputs have a switchable highpass filter, so all the crossover work is done within the subwoofer. With the filter engaged, connected full-range powered speakers can use their full output power to amplify only those frequencies that the DXS15mkII is not. This configuration delivers better overall projection and a more detailed soundstage across the full frequency spectrum.
Ideal for gigging musicians, school sound systems, and houses of worship
You'll be amazed at the rock-solid bass and consistent performance you get from Yamaha's DXS15mkII powered sub. Housed in a durable wooden enclosure, the DXS15mkII subwoofer represents Yamaha's latest sound reinforcement technology. The DXS15mkII packs maximum performance into an efficient design that's perfect for the gigging musician, school sound systems, and houses of worship. And thanks to the proprietary DSP processing, the DXS15mkII delivers the kind incredibly deep bass you'd expect from a much larger unit. Take it from us: Whether you're playing pre-recorded music or performing for a crowd, you'll love the rich low end the Yamaha DXS15mkII powered subwoofer adds to your sound system.
Features:
- Powerful bass, clarity, and punch for small-to-medium sized venues
- Onboard 800-watt (continuous) Class D power amp
- Robust output of up to 135dB from a compact, lightweight package
- 15" driver with a 2.5" voice coil for superb bass response
- 40Hz-150Hz frequency range
- Selectable crossover points at 80, 100, and 120Hz
- Built-in D-XSUB processing allows you to extend the frequency response even lower
- Cardioid mode for efficient onstage bass management
- Bandpass cabinet is durable and acoustically optimized for maximum sound quality
- M20 and 35mm pole socket options provided
