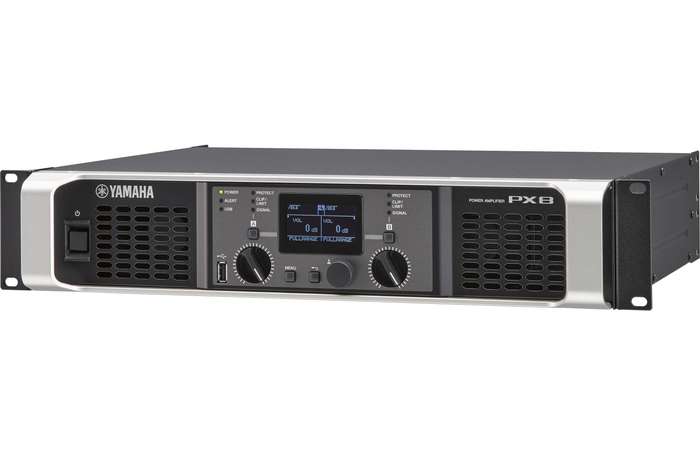

General Specifications 100V model 120V model 220V-240V model Amplifier Class Class D, Balanced output circuit (BTL) Output Power (1kHz Non-clip 20msec Burst Both Channels Driven) 8 800W x 2 800W x 2 800W x 2 4 1050W x 2 1050W x 2 1050W x 2 2 600W x 2 600W x 2 600W x 2 8/Power Boost Mode - - - 4/Power Boost Mode - - - Sampling Frequency Rate Internal 48kHz A/D D/A Converters AD/DA: 24-bit linear, 128 times over sampling Total Harmonic Distortion 0.1% (1kHz, 10W), 0.3% (1kHz, Half power) Frequency Response ±1.0dB (1W, 8, 20Hz to 20kHz) S/N Ratio 101dB (A-weighted, 8, Gain setting = +14dBu) Crosstalk Less than -60dB (Half Power, 8, 1kHz, Vol max input 150 shunt) Voltage Gain/Sensitivity 8 Volume Max 32.0dB/+8.3dBu (Gain setting: 32dB), 26.0dB/+14.3dBu (Gain setting: 26dB), 36.3dB/+4dBu (Gain setting: +4dBu), 26.3dB/+14dBu (Gain setting: +14dBu) 8 Volume Max/ Power Boost Mode - Maximum Input Voltage +24dBu Input Impedance 20k (Balance), 10k (Unbalance) I/O Connectors Line Input XLR-3-31 x 2, 1/4" PHONE (TRS) x 2 Speaker Output Neutrik speakON NL4 x 2, Binding post x 2 pairs, 1/4" PHONE (TS) x 2 Others USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp Indicators POWER x 1 (Green), ALERT x 1 (Red), USB x 1 (Green), PROTECT x 2 (Red), CLIP/LIMIT x 2 (Red), SIGNAL x 2 (Green); Auto LED off feature Processors Input summing; D-CONTOUR (FOH/MAIN, MONITOR, OFF); Delay (0 - 74msec); HPF/LPF (cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor (6 band PEQ* + Limiter + Delay) Latency 1.5 msec (Analog Input to Speakers) Presets 8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers) Protection Circuit Load Protection POWER switch on/off: Output mute; Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically) Amplifier Protection Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically) Power Supply Protection Thermal: Output limiter (Restored automatically) → Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown Cooling 16 step variable speed fan x 2, front to rear airflow Power Requirements Depending on area of purchase; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage. Power Consumption 280W (1/8 MAX power, 4, Pink noise at all channels), 60W (4, Idling) Dimensions (W x H x D) 480mm x 88mm x 388mm (18-7/8" x 3-7/16" x 15-2/8") (2U) Net Weight 7.2 kg (15.87 lbs) Accessories USB cover, Owner's Manual, Specification sheet, AC cable (2.0m) x 1 Others USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x 1 with AC cord clamp Speaker Processing Fullrange A10, A12, A12M, A15, CBR10, CBR12, CBR15, Club112V, Club115V, Club215V, ClubM10V, IF211264, IF211295, IF211299, IF2112AS, IF2112M64, IF2112M95, IF2112M99, IF211564, IF211595, IF211599, IF2115AS, IF2115M64, IF2115M95, IF2115M99, IF2108, IF2205, IF2208, NSAW392, NSAW592, NSAW992, R12M, R15M, R112, R115, R215, VS4, VS6, VXC4, VXC6, VXC8, VXS5, VXS8 Subwoofer A15W, ClubSW115V, ClubSW118V, ClubSW218V, IS1112, IS1118, IS1215, IS1218, R118W, VXS10S Bi-AMP IF211264, IF211295, IF211299, IF2112AS, IF2112M64, IF2112M95, IF2112M99, IF211564, IF211595, IF211599, IF2115AS, IF2115M64, IF2115M95, IF2115M99, IF311564, IF311595, IH200064, IH200095 Technical Data Sheet 3 / 5 P
