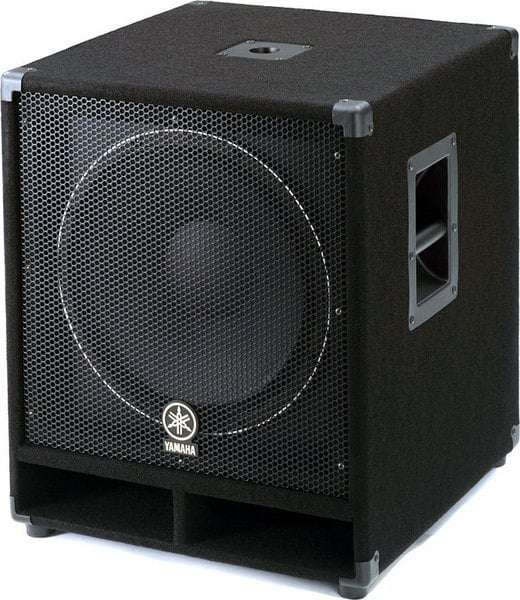

The Yamaha SW115V is a Concert Club V Series 15" 1000W peak (4 Ohms) subwoofer that features a frequency response down to 35 Hz and an integral 1-3/8" pole socket to allow for pole mounting full-range speakers.
An Ideal Match for EMX Series Powered Mixers or P Series Power Amplifiers
The Concert Club V series and Concert Club VC series speakers provide dual phone jacks as well as dual Speakon™ connectors for input and parallel connection. A high-performance PA system can conveniently be created simply by connecting a pair of speakers to an EMX series powered mixer using the phone jack outputs on a box-type model, or the Speakon™ connectors on a console model. When used in conjunction with P series power amplifiers and an MG series mixing console, you have the flexibility to add monitor speakers and a subwoofer to create a versatile live sound system. The YSProcessing (Yamaha Speaker Processing) switch provided on the EMX series powered mixers and P series amplifiers enhances performance with single-woofer models (S112V, S115V, C112V(A), C115V(A), and monitor models) for even greater sonic impact.
Top-Class Parts and Optimized Wood Enclosures
The Concert Club series has achieved worldwide acclaim for its superior sound and durability, becoming a standard for audio quality and reliability. Painstaking selection of parts and components, optimized wood enclosures, and a thorough reevaluation of speaker capacity have given the new Concert Club series a robust sonic presence that takes their performance to a new level. Even as your system changes and expands years down the road, you can expect the Concert Club series to deliver consistently excellent audio quality.
Classic Design Combines Strength and Sophistication
A classic, unpretentious design makes these speakers virtually timeless. The slightly rounded front grille enhances both style and durability. The Concert Club V series features a durable exterior with a carpeted surface, and large metal handles for improved portability. They're designed to endure the rigors of a sound reinforcement system that will be set up and taken down night after night.
Yamaha SW115V Specifications:
- Speaker Type: 15" subwoofer
- Frequency Response (-10dB): 35 Hz - 2 kHz
- Components:
- Power Rating:
- Noise: 250W (EIA)
- Program: 500W
- Peak: 1000W
- Nominal Impedance: 4 Ohms
- SPL:
- Sensitivity (1W; 1m on axis): 95dB SPL
- Continuous (Calculated): 119dB SPL
- Peak (Calculated): 125dB SPL
- I/O Connectors: 2x Phone, 2x speakON
- Shape: Rectangular
- Finish: Carpeted Finish
- Handle: 2
- Pole Socket: 1x 1-3/8" (35 mm)
- Dimensions:
- Width: 19-7/8" (506 mm)
- Height: 24" (611 mm)
- Depth: 21" (532 mm)
