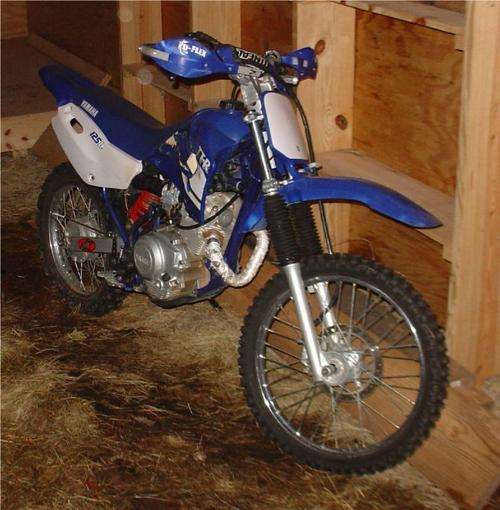

Bike is in Great Condition runs like a dream below are all the specs.
Please no time wasters.
ngine | |
Engine type | Air-cooled, 4-stroke, forward-inclined single cylinder, 2-valve, SOHC |
Displacement | 123.7 cc |
Bore x stroke | 54.0 x 54.0 mm |
Compression ratio | 10.0 : 1 |
Maximum power | 7.2 kW (9.8 PS) @ 8,000 rpm |
Maximum torque | 9.85 Nm (1.0 kg-m) @ 6,500 rpm |
Lubrication system | Wet sump |
Fuel System | Mikuni VM20/1 |
Clutch type | Wet, multiple-disc coil spring |
Ignition system | CDI (digital) |
Starter system | Kick / E: Electric and Kick |
Transmission system | Constant mesh, 5-speed |
Final transmission | Chain |
Fuel tank capacity | 6 L |
Oil tank capacity | 1.2 L |
Chassis | |
Chassis: | Diamond shaped |
Front suspension system | Telescopic forks |
Front travel | 180 mm |
Rear suspension system | Swingarm (link suspension) |
Rear travel | 168 mm |
Caster angle | 28º 30' |
Trail | 107 mm |
Front brake | Single disc, Ø 220 mm |
Rear brake | Drum, Ø 110 mm |
Front tyre | 70/100-19 42M |
Rear tyre | 90/100-16 52M |
Dimensions | |
Length | 1,885 mm |
Width | 795 mm |
Height | 1,085 mm |
Seat height | 805 mm |
Wheel base | 1,270 mm |
Minimum ground clearance | 295 mm |
Wet weight | 84 kg / E: 90 kg |
