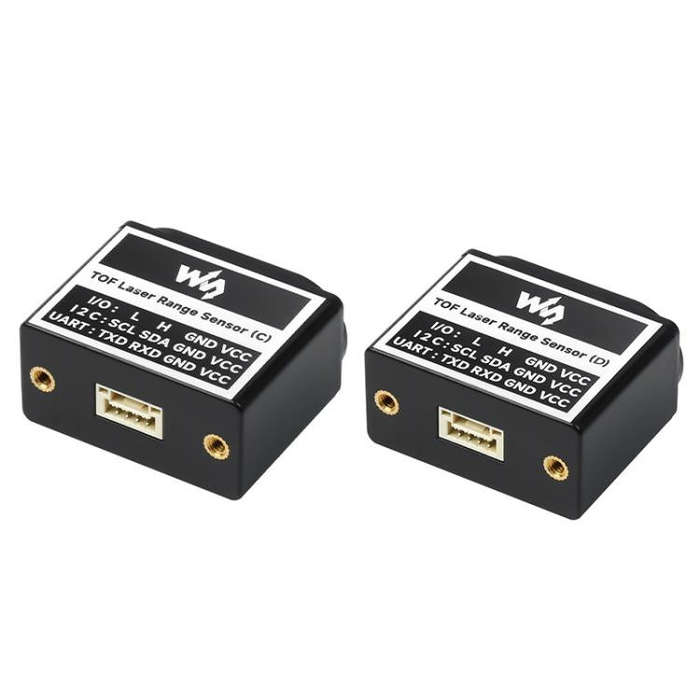

Waveshare TOF Time of Flight Laser Range Sensor, UART / I2C / IO Communication, Range: 25m

Features:
1. This is a laser ranging sensor based on TOF (time of flight) technology.
2. Built-in controller and ranging algorithm, ranging range up to 25m/50m (optional), accuracy up to +/-3cm.
3. Supports UART and I2C communication, with an ultra-small field of view (FOV), which makes the distance measurement range longer and the anti-light interference ability stronger, suitable for both indoor and outdoor environments.

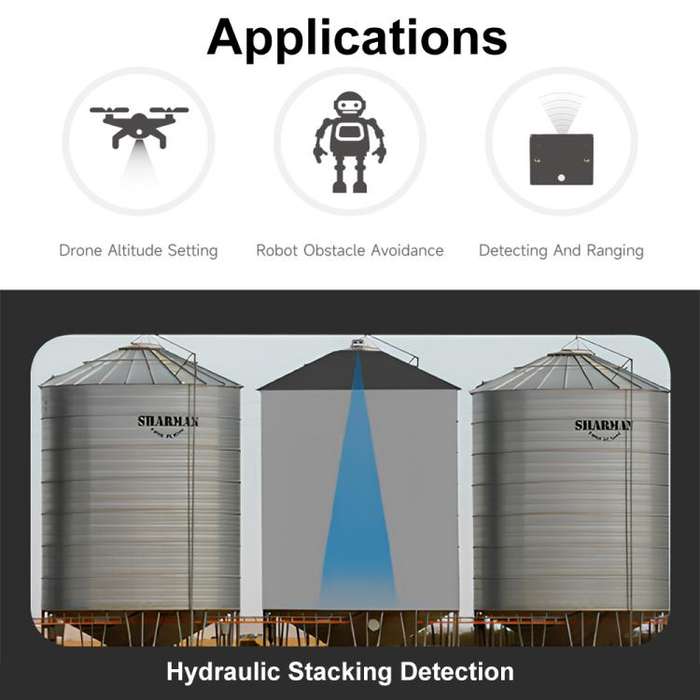

4. The anti-light interference ability is up to about 100KLUX illumination. It can be used as a distance measurement tool for distance detection, as a robot obstacle avoidance/route planning, and can also be used in fields such as ceiling detection and material level measurement.

Product parameters:
1. Typical ranging range: 0.05-25m/0.05-50m
2. Typical ranging accuracy: 0.05-25m+/-3cm, 0.05-50m+/-3cm
3. Wavelength: 905nm
4. Field of view: 1-2 degrees
5. Communication interface:
Default UART (TTL signal line level 3.3V)
I2C (supports multiple parallel connections, slave address is 0x08 + module D)
I/O complementary level output (this mode cannot provide distance parameters)
6. Communication baud rate:
UART: 4.8Kbps-3000Kbps (default 921.6Kbps)
2C: up to 400Kbps
7. Power supply voltage: 4.3V-5.2V
8. Product power consumption: 250mW (UART active output, power supply voltage 5.0V, current 50mA)
9. Operating temperature: -10 to 60 degrees Celsius

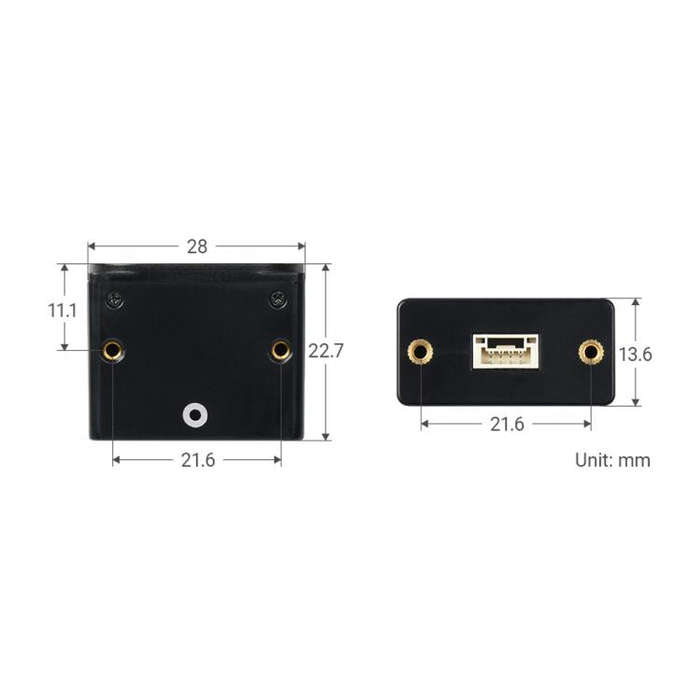

10. Product size: 22.7 x 28 x 13.6mm
11. Product weight: 7.7g
