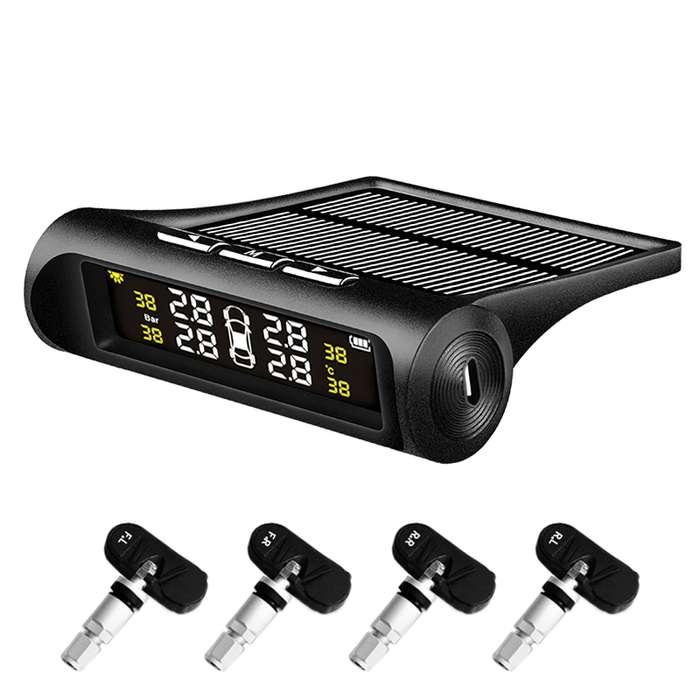

YB-P0248 Universal Car Wireless Solar Built-in TPMS Tire Pressure Monitor Detector

1. Suitable for all kinds of cars, off-road vehicles, urban SUVs, commercial vehicles, MPVs, vans, tourist vehicles, etc.
2. Micro USB charging, the charging time depends on the output current of the power cord, about 3 hours to fully charge
3. Smart screen display, tire pressure, tire temperature at a glance
4. Smart chip, rapid detection of abnormalities, accurate buzzer alarm
5. Vibration starts when the door is opened, and the engine shuts down when the engine stops

Tire pressure host:
1. Working voltage: 3.7-5V
2. Storage temperature: -30-90 degrees Celsius
3. Working temperature: -30-85 degrees Celsius
4. RF transmission frequency: 433.92MHz+/-50KHz
5. RF signal receiving sensitivity: -90dbm
6. Display mode: LCD color screen
7. Bright screen working current: less than or equal to 6mA
8. Black screen working current: less than or equal to 4mA
9. Size: 85x95mm

Sensor:
1. Battery life: 24 months
2. Working voltage: 2.1-3.6V
3. Storage temperature: -30-90 degrees Celsius
4. Working temperature: -30-85 degrees Celsius
5. Pressure range: 0-5.0Bar
6. Pressure resolution: +/-0.1Bar
7. Lithium battery: CR1632 (model)
8. Waterproof rating: IP67
9. Transmitting power: less than or equal to 10dBm
10. Transmitting frequency: 433.92MHz
11. Weight: about 25.0g
