Yeah Racing Chassis Droop Gauge 1mm increment (-3.5 to 9.5mm) #YT-0071HBU - 0.20kg

Yeah Racing Chassis Droop Gauge 1mm increment (-3.5 to 9.5mm) #YT-0071HBU

Description:

This (droop gauge) can be used together with YT-0071 / other 1mm droop gauge. It can measure the downstop value from -3.5mm to 9.5mm. The values shown on the droop gauge indicates how many millimeters the suspension drops below the level of the chassis.

Use with Yeah Racing #YT-0070 :

• To measure the Downstops

Step 1: Place the flat part of the chassis on the 15mm Droop Gauge Support Blocks.





Step 2: Use the droop gauge support blocks to escalate the chassis. Then measure the downstop value with the droop gauge. The values shown on the droop gauge indicates how many millimeters the suspension drops below the level of the chassis.

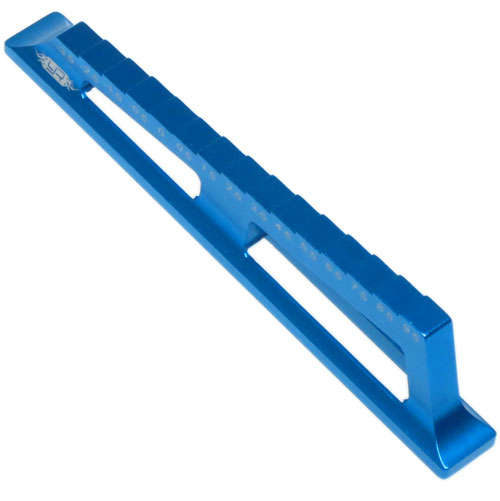

*Photo for reference only.

Feature:

For: 1:8 / 1:10 On Road

Material: Aluminum

Color: Blue

Include:

Droop Gauge (1 pc)
