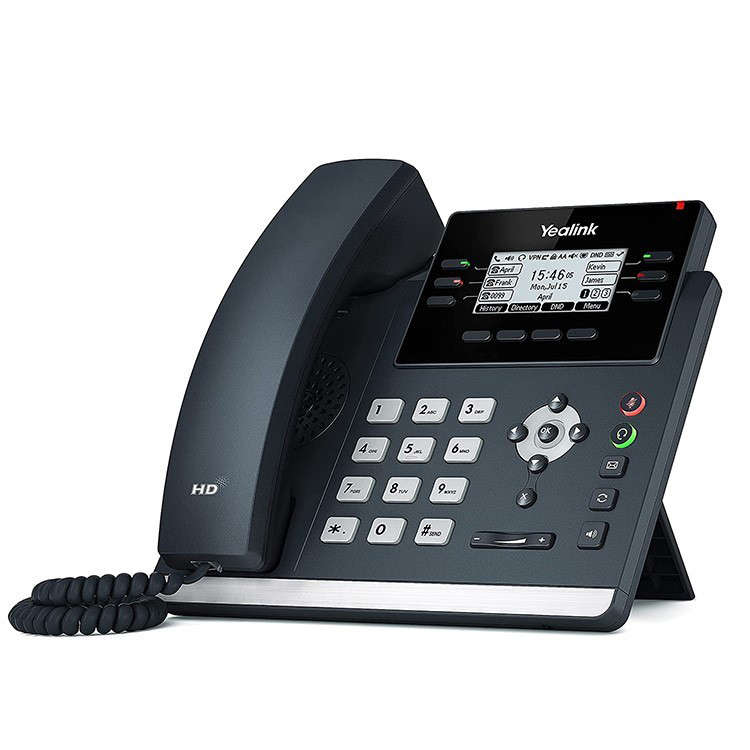

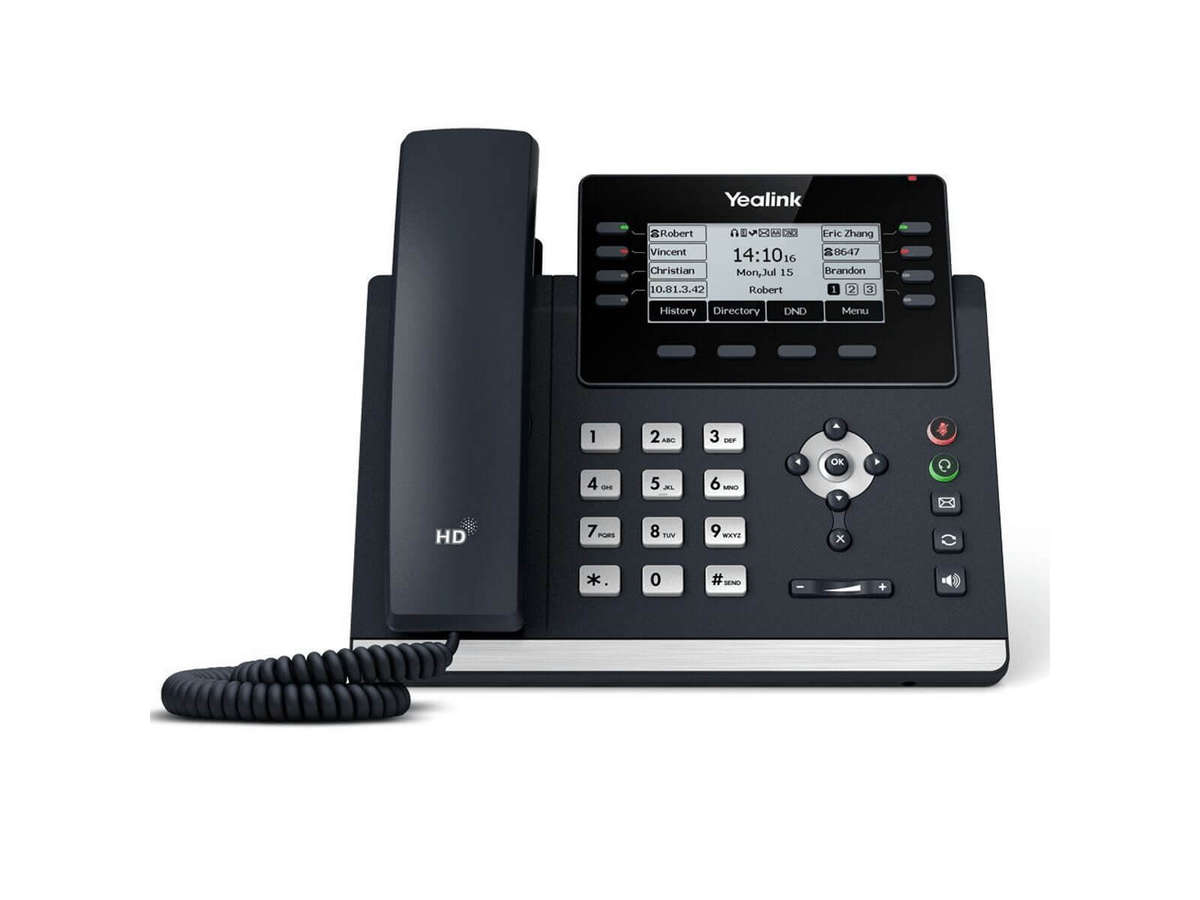

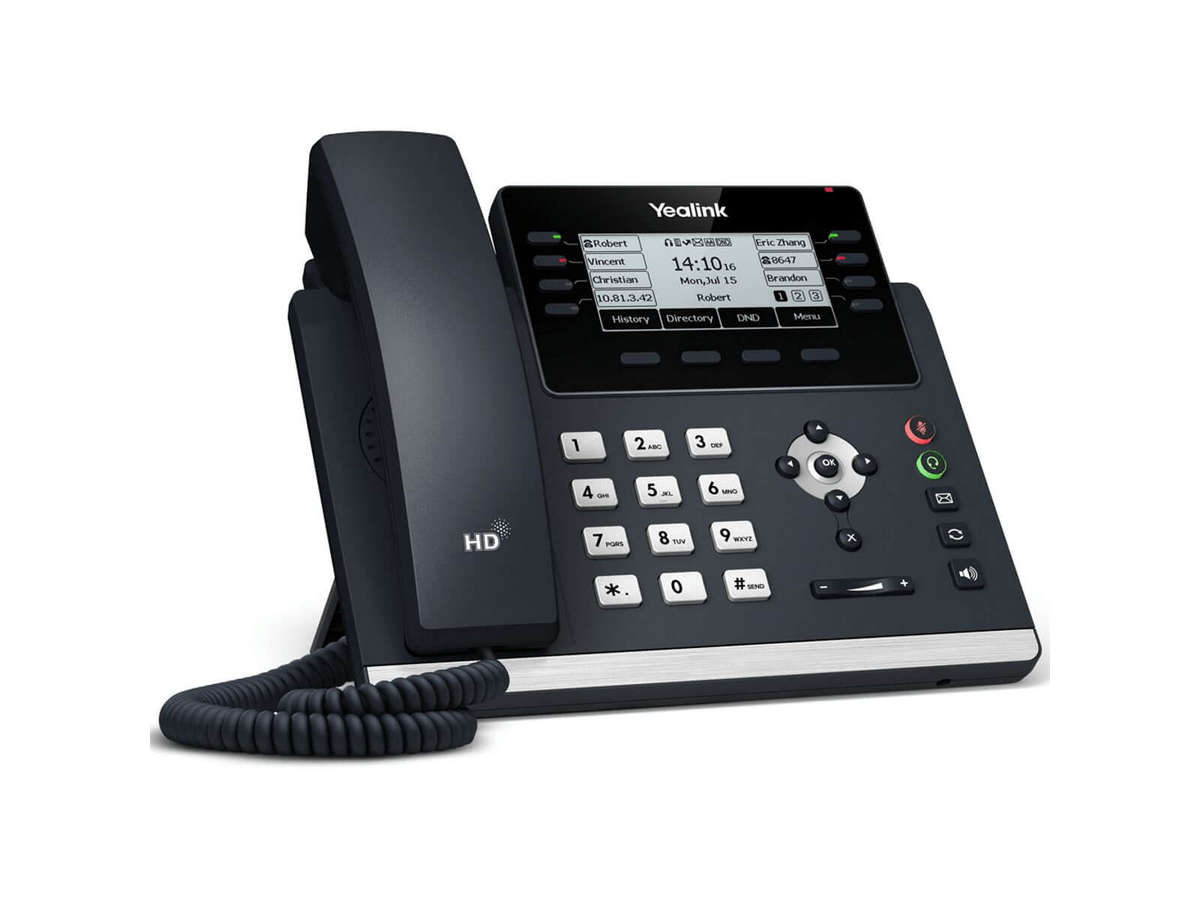

The SIP-T43U IP phone is a feature-rich business tool for excellent communications and extended functionality. It is a 12-line IP phone that comes with a 3.7-inch large black-and-white screen and the EXP43 support. United Yealink Optima HD Voice technology and wideband codec of Opus, the T43U awards you superb audio quality and crystal-clear voice communications. The phone feels quicker and more responsive when performing call features. Moreover, the T43U puts dual USB ports in a phone that makes Bluetooth, Wi-Fi, USB headset, and USB recording come true, and you can use any two of them freely according to your needs. The Yealink new T4U series offers the same elegant appearance as the T4 line, but with improvements for greater interoperability and better collaboration.
Key Features and Benefits
Easy Customization and High Expansibility Accompanied by two USB ports, the T43U is your right-hand man in the office that makes Bluetooth, Wi-Fi, USB headset, and USB recording possible, and you can use any two of them freely according to your needs to enrich phone features. Meanwhile, the phone not
only has three pages of flexible buttons that can be easily programmed with 21 paperless DSS keys at most, but also can connect up to three expansion modules, for up to 180 additional buttons with a screen-based LCD display and LED system.
HD Audio
Yealink Optima HD Voice technology combines cutting-edge hardware and software with wideband technology for maximum acoustic performance. Being a totally open, highly versatile audio codec, Opus is designed to perform a higher HD audio quality than other wideband codecs in a high network bandwidth; However, if your current network quality is poor, Opus can provide you with a better audio quality than other narrowband codecs. And its hearing aid compatible (HAC) handset helps the person who is with hearing loss to hear the voice more clearly.
3.7" 360x160-pixel graphical LCD with backlight
Dual USB ports
Dual firmware images
Opus codec support
T42U (pending)/T43U/T46U/T48U Auto-P template unified
T42U (pending)/T43U/T46U/T48U firmware unified
Up to 12 SIP accounts
PoE support
USB headset and EHS support
Wi-Fi via WF40/WF50
Bluetooth via BT40/BT41
Supports the color-screen expansion modules
Stand with 2 adjustable angles
Wall mountable
Specifications
Audio Features
HD voice: HD handset, HD speaker
Hearing aid compatible (HAC) handset
Acoustic Shield
Wideband codec: AMR-WB (optional), Opus, G.722
Narrowband codec: AMR-NB (optional), Opus, G.711(A/µ), G.723.1, G.729AB, G.726, iLBC
DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
12 VoIP accounts
One-touch speed dial, redial
Call forward, call waiting, call transfer, call hold
Call return, group listening, emergency call
Mute, auto-answer, DND, hotline
3-way conference call
Direct IP call without SIP proxy
Ring tone selection/import/delete
Set date time manually or automatically
Dial Plan, XML Browser, Action URL/URI
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Dual USB ports (2.0 compliant)
- Bluetooth earphones through BT40/BT41
- Contact synchronization through BT40/BT41
- Wi-Fi through WF40/WF50
- USB call recording through USB flash drive
- USB headset
- Expansion Module EXP43
- Wireless Headset Adapter EHS40
Enhanced DSS key
Directory
Local phonebook up to 1000 entries
Blacklist
XML/LDAP remote phonebook
Smart dialing
Phonebook search/import/export
Call history: dialed/received/missed/forwarded IP-PBX Features
Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
Anonymous call, anonymous call rejection
Hot-desking, voice mail
Flexible seating, Executive and Assistant
Call park, call pickup
Centralized call recording, call recording
Visual voice mail
Display and Indicator
3.7" 360x160-pixel graphical LCD with backlight
LED for call and message waiting for an indication
Dual-color (red or green) illuminated LEDs for line status information
Intuitive user interface with icons and soft keys
Multilingual user interface
Caller ID with name and number
Power saving
Feature keys
8 line keys with LED
8 line keys can be programmed up to 21 paperless DSS keys (3-page view)
5 features keys: message, headset, mute, redial, hands-free speakerphone
4 context-sensitive soft keys
6 navigation keys
2 volume control keys
Illuminated mute key
Illuminated headset key
Illuminated hands-free speakerphone key

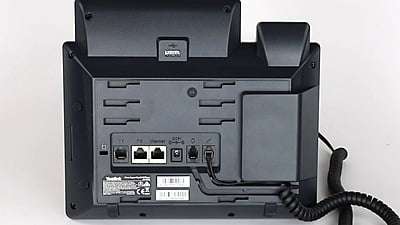

Interface
Dual-port Gigabit Ethernet
Power over Ethernet (IEEE 802.3af), Class 2
2 x USB port (2.0 compliant)
1 x RJ9 (4P4C) handset port
1 x RJ9 (4P4C) headset port
Other Physical Features
Stand with 2 adjustable angles
Wall mountable
External Yealink AC adapter (optional) AC 100~240V input and DC 5V/2A output (Available @ R60ea if required)
USB output currency: 5V 500mA
Power consumption (PSU): 0.9-2.2W
Power consumption (PoE): 1.5-3.2W
Dimension (WDHT): 224.9mm206.2mm174.9mm52mm
Management
Configuration: browser/phone/auto-provision
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
Auto-provision with PnP
Broadsoft device management
Zero-sp-touch TR-069
Phone lock for personal privacy protection
Reset to factory, reboot
Network and Security
SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT traversal: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP
HTTP/HTTPS webserver
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV(RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
SRTP for voice
Transport Layer Security (TLS)
HTTPS certificate manager
AES encryption for the configuration file
Digest authentication
OpenVPN, IEEE802.1X
IPv6
LLDP/CDP/DHCP VLAN
ICE
What's in the box
1 x Yealink SIP-T43U IP phone
1 x Handset with handset cord
1 x Ethernet Cable (2m CAT5E UTP Cable)
1 x Stand
1 x Quick Start Guide
