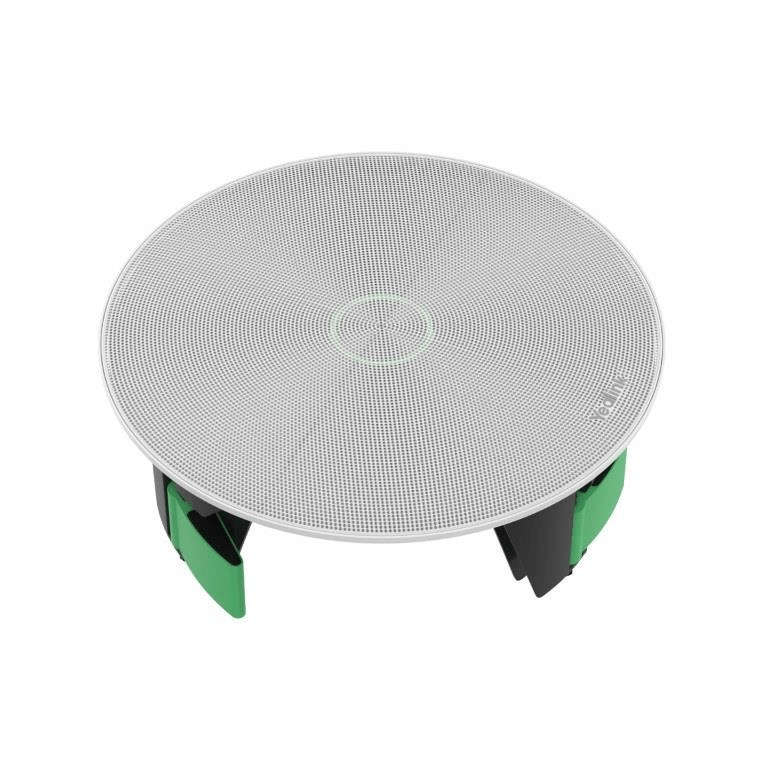

Yealink CM20 AI-Powered Beamforming Ceiling Microphone 1303095
Elevate Your Conference Room Experience
Beamforming Ceiling Array Microphone for Unmatched Audio Clarity
The Yealink CM20 is a premium ceiling microphone, expertly crafted to enhance audio performance in professional conference settings. Boasting an advanced array of 16 omnidirectional microphones, the CM20 captures sound in 360°, ensuring clarity and inclusivity in every discussion. With an integrated DSP, CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing. Designed for medium to large conference rooms, the CM20 combines advanced technology with a sleek, elegant design, making it a perfect blend of functionality and style.
Key Features
Advanced Microphone Array
CM20 is equipped with 16 omnidirectional units, providing unparalleled audio clarity across 8 independent pickup zones.
Superior Coverage
Yealink CM20 has a premium quality 30m2 full-duplex audio capture (STIPA 0.78 at pick-up radius 3.2 merters), and an effective coverage up to 60m2 (STIPA 0.72 at pick-up radius 4.5 meters), in the environment of RT60=408ms -1khz, Noise Level=40dBA, 2.8 meter height, ideal for medium to large spaces.
Intelligent Sound Processing
Integrates Yealink's advanced noise reduction, echo & reverberation cancellation technologies for crystal-clear audio in every meeting.
In-built DSP for Simplicity
Equipped with an integrated DSP, CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing.
Versatile Ceiling Integration

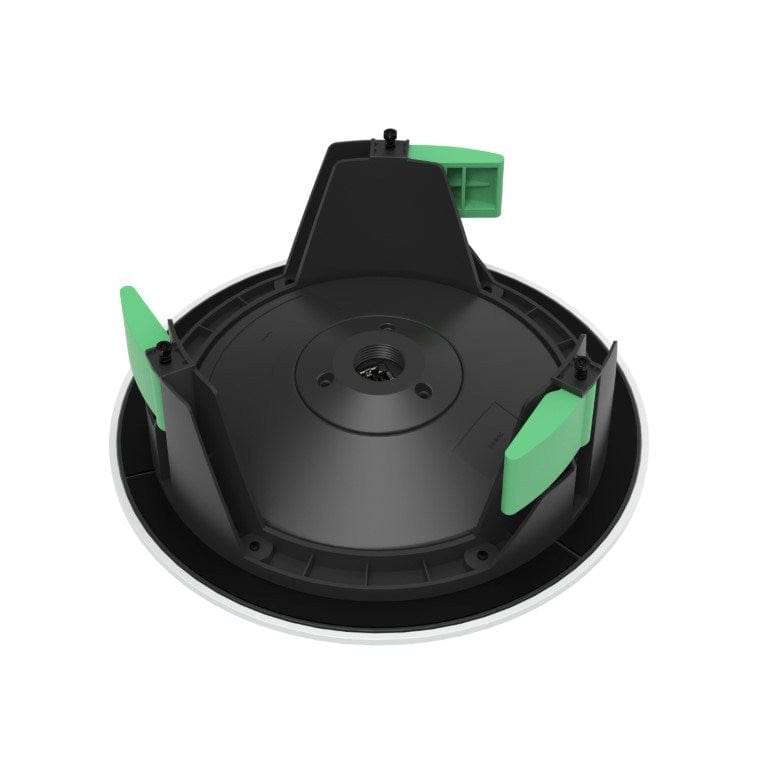

Offers various installation options, including in-ceiling, pendant, and on-ceiling, for effortless setup and integration.
Elegant and Unobtrusive Design

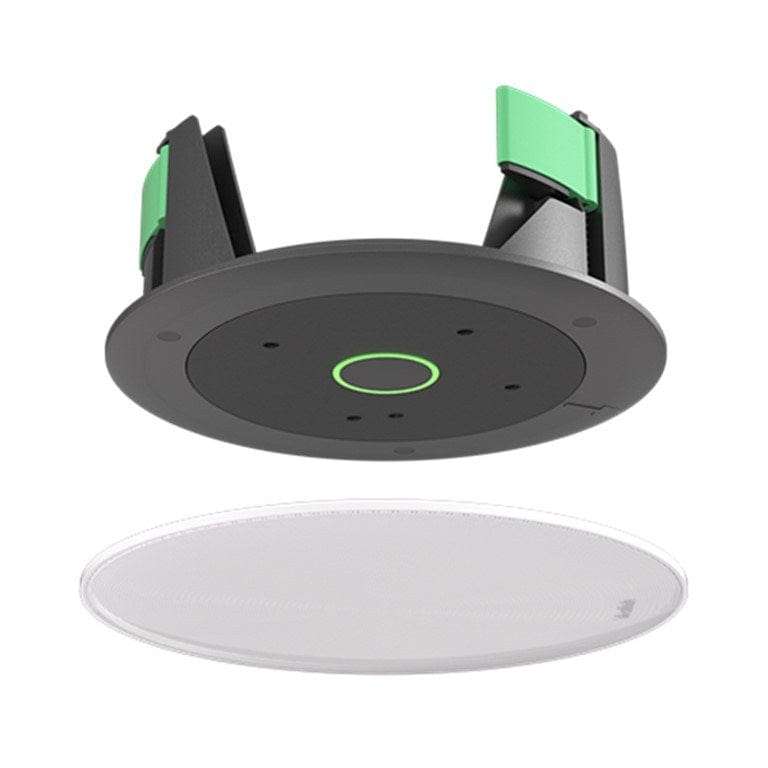

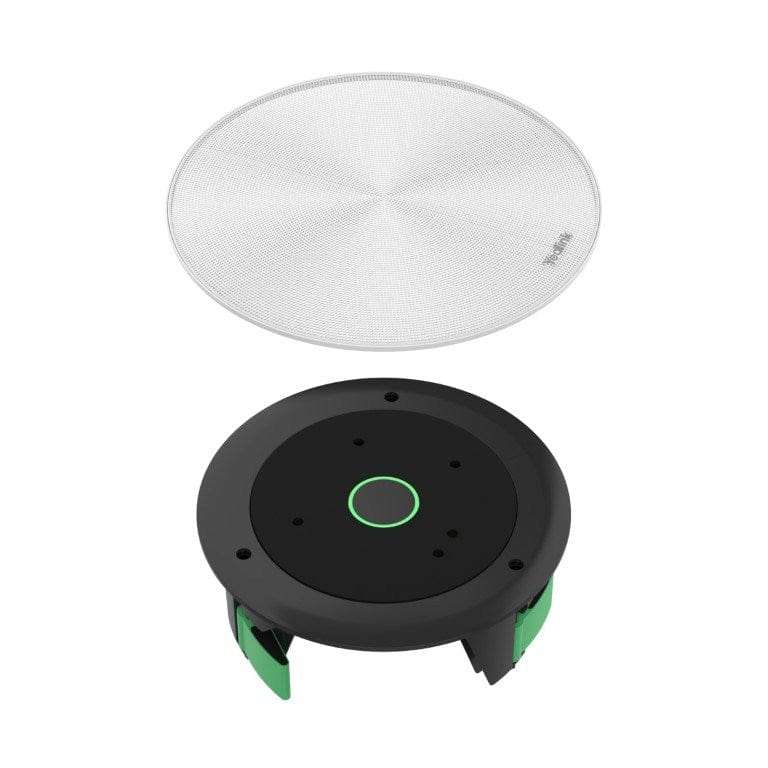

Includes a removable magnetic suction mesh cover, adding a touch of sophistication while being discreet and easy to maintain.
Technical Specification
Frequency Response: 120Hz-16kHz
Maximum SPL: 122dBSPL
Signal Noise Ratio: 86dB -<1% THD
Sensitivity: 0 dBV/Pa 94dBSPL-1kHZ
Microphone: 16 omni-direction microphone
AEC Channel: 1 channel internal
Product Color: Pearl Light Gray
Product Materials: ABS+PC&iron mesh
Continuous Power: 5.7W
Rated Power: 9W
Interface: 1x RJ-45
Power Supply: PoE (IEEE 802.3af, class 3) (*Power supply is not included)
Weight: 615g
Package Content
- 1x CM20 Microphone
- 1x White Mesh Cover (Black Optional)
- 1x Assembly Fixing Bracket
- 1x Dust Cover
- 1x Bracing Bridge pair
- 6x Expansion Bolt (6 * 30 mm, white, Polyamide)
- 6x Self-tapping Screw (T4*30mm)
- 5x Machine Screw (3*6PMOZN3+)
- 20x Bracing Bredge Screw (M3*6PWMHOZN3)
- Quick Start Guide
