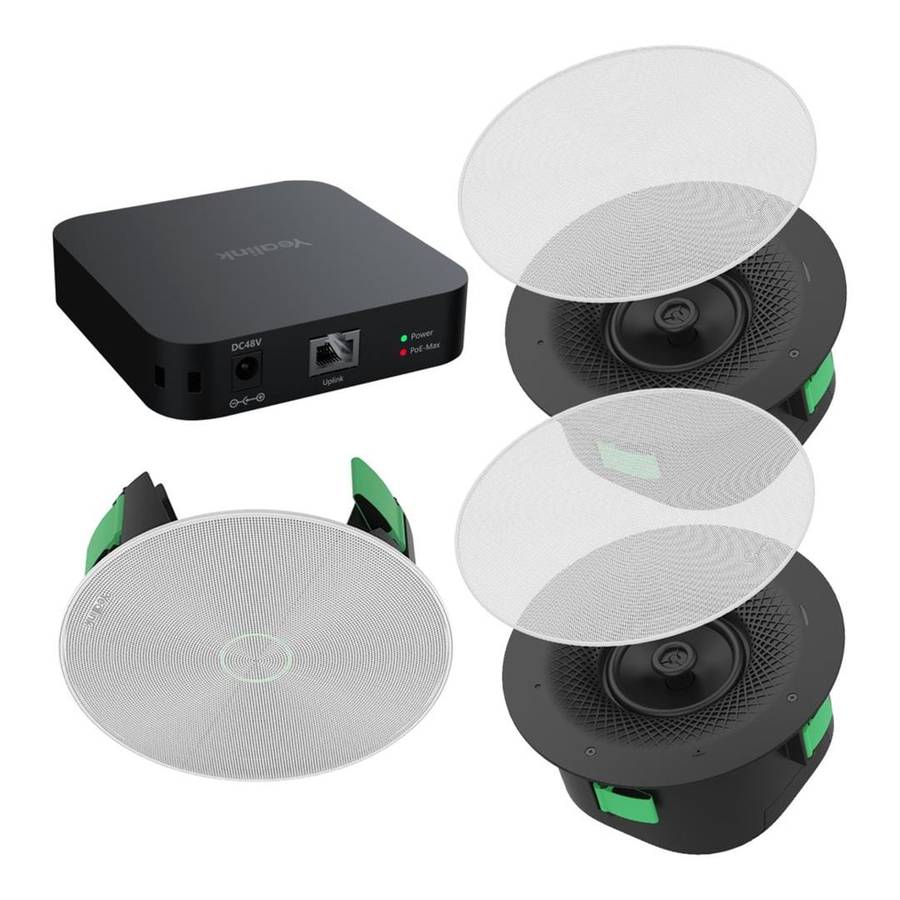

Yealink CMKit-121 Comprehensive Conference Room Audio Solution 1103836
Kit Contains
- 2x CS10 Ceiling Speakers
- 1x CM20 Ceiling Microphone
- 1x RCH40 E2 Switch
The Yealink CM20 is a premium ceiling microphone, expertly crafted to enhance audio performance in professional conference settings. Boasting an advanced array of 16 omnidirectional microphones, the CM20 captures sound in 360°, ensuring clarity and inclusivity in every discussion. With an integrated DSP, CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing.Designed for medium to large conference rooms, the CM20 combines advanced technology with a sleek, elegant design, making it a perfect blend of functionality and style.
The Yealink CS10, a low-profile (120mm) 2-way coaxial network speaker, excels in video conferencing with its exceptional audio performance. Designed specifically for the modern meeting environment, the CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms. Versatile and engineered for ease of use, the CS10 is a PoE-enabled speaker that can optionally deployed with variety supplementary components, simplifying installation across diverse ceiling types. Its covert design, establishes the CS10 as more than just a speaker — it is an essential addition to your meeting space, enhancing both visual and auditory experiences.
Meet Yealink RCH40 E2 QoS, the Gigabit PoE+ Switch designed for Meeting Room Audio & Video Networking. With four Gigabit Ethernet downlink ports and one Gigabit Ethernet uplink port, Yealink RCH40 supports 802.3af/at standards, delivering up to 30W of power per port. With a total PoE power budget of up to 90W, it's an ideal solution for connect-ing audio and video devices in video conference systems.
Technical Specification
CM20 Ceiling Microphone
Product Colour: Pearl Light Gray
Product Materials: ABS+PC & iron mesh
Continuous Power: 5.7W
Peak Power: 9W
Interface: 1x RJ-45
Power Supply: PoE (IEEE 802.3af, class 3)
Audio
Frequency Response: 120Hz - 16kHz
Maximum SPL: 122dBSPL
Signal Noise Ratio: 94dBSPL -1kHz A-Weight
Sensitivity: 0 dBV/Pa 94dBSPL-1kHZ
Microphone: 16 omni-direction microphone
AEC Channel: 1 channel internal
CS10 Ceiling Speakers
Audio
Frequency Response (-6dB): 100 - 20kHz
Maximum SPL: Continuous: 99dB -20W 1m ; Sensitivity: 88dB-1m 1W
Speaker
LF: 5.7 inch (145 mm) woofer
HF: 1.1 inch (28 mm) tweeter
Nominal Impedance: 8
Nominal Coverage Angle: 120
RCH40 E2 QoS Switch
Features
- 4x 10/100/1000Mbps Port
- 802.3af-compliant
- Mutiple deploy method
- 90w total PoE Budget (30w per port)
Physical Feature
LED indicate Power state: 1
LED indicate PoE Budget: 1
Support standard: PoE Supply (802.3af)
Power adapter PSE: 48V 2A
Dimension (WDH): 100mm x 100mm x 23mm
