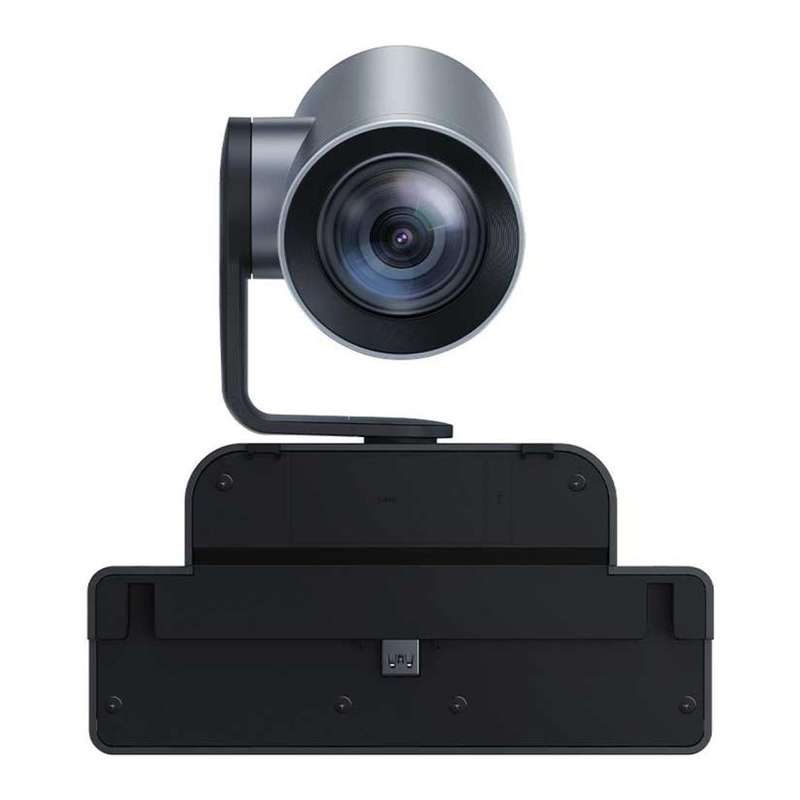

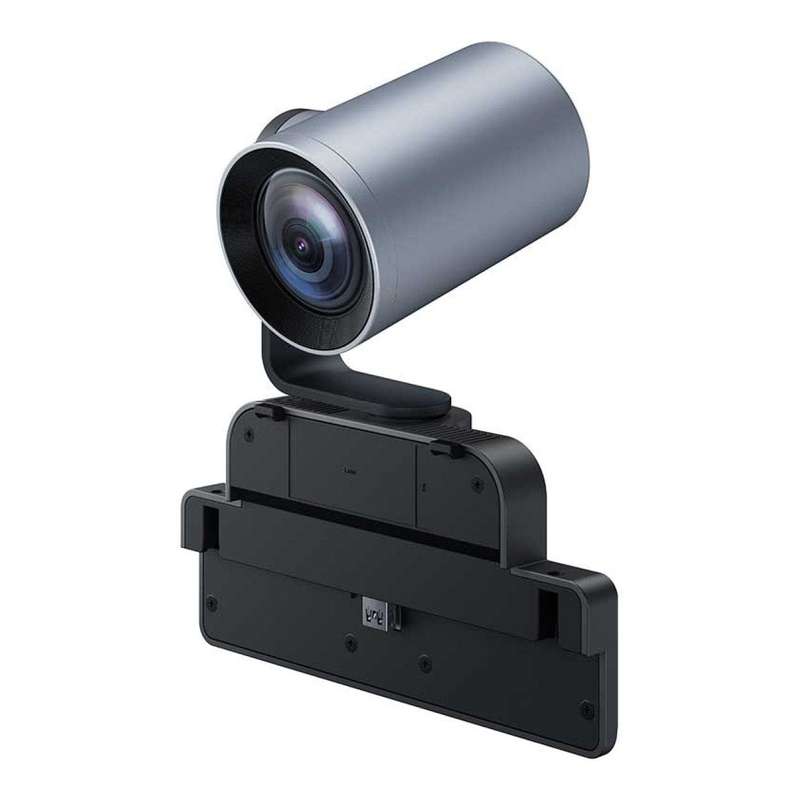

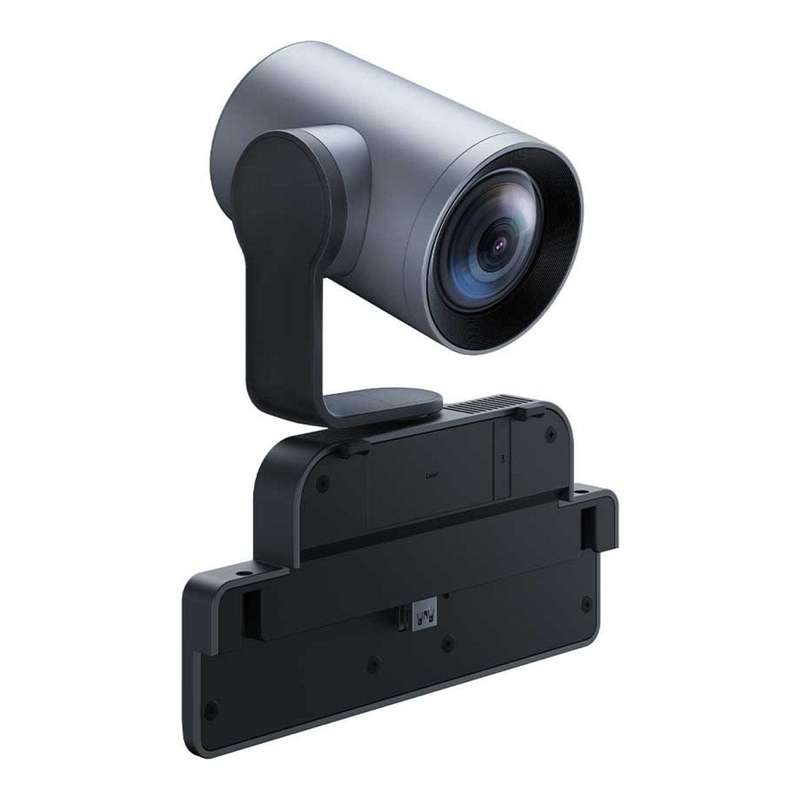

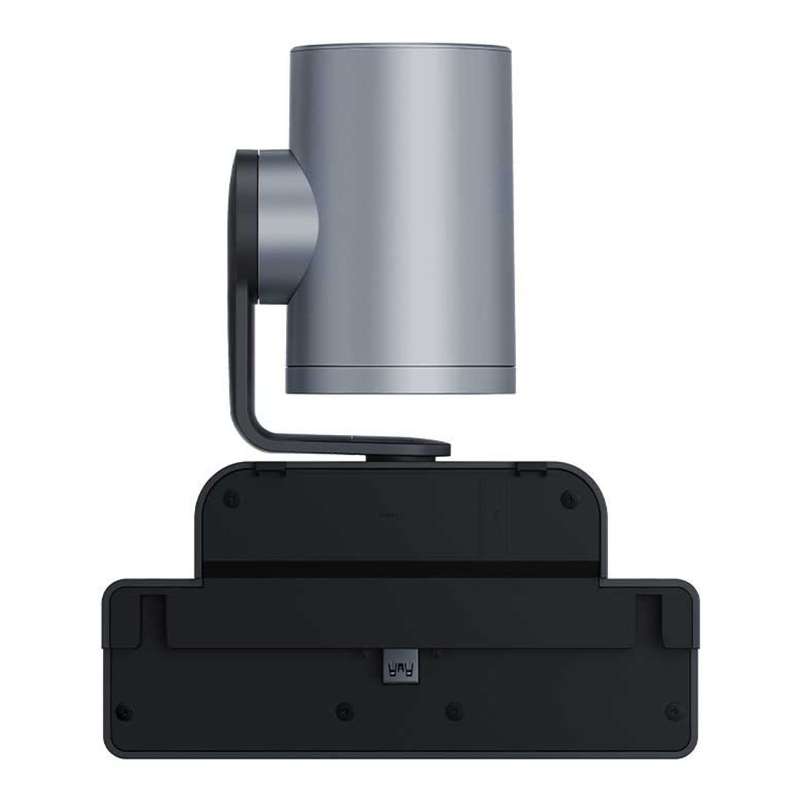

Yealink MB-12X Pro 12X Extended PTZ Camera Module 1303128
The MB-12X Pro is an optical zoom camera module specially designed for the second generation Meetingboard for medium and large conference room scenarios. It features a customized slot interface design that allows direct installation on top of the second-generation Meetingboard, eliminating the need for additional wiring and mounting brackets, offering a more streamlined deployment experience. The MB-12X Pro, together with the wide-angle lens built into the second-generation MeetingBoard, forms an intelligent triple-camera 4K camera solution. It is equipped with Yealink's fully self-developed intelligent AI voice positioning and image algorithms. By analyzing the distribution and movements of participants in real-time through the built-in wide-angle lens, it then utilizes the optical lens module of the 12X Pro for quick and accurate tracking and positioning, achieving automatic framing of subjects, voice tracking, and other AI intelligent tracking experiences. This ensures the best possible viewing angles at all times, bringing a high-definition, intelligent, and smooth video experience.
Features
- 12× optical zoom lens for high-clarity close-ups
- 4K Ultra HD video at 30 frames per second
- AI-powered auto-framing and voice-position tracking
- Smooth pan, tilt, and zoom with quiet motor operation
- Electric privacy shutter for automatic lens cover

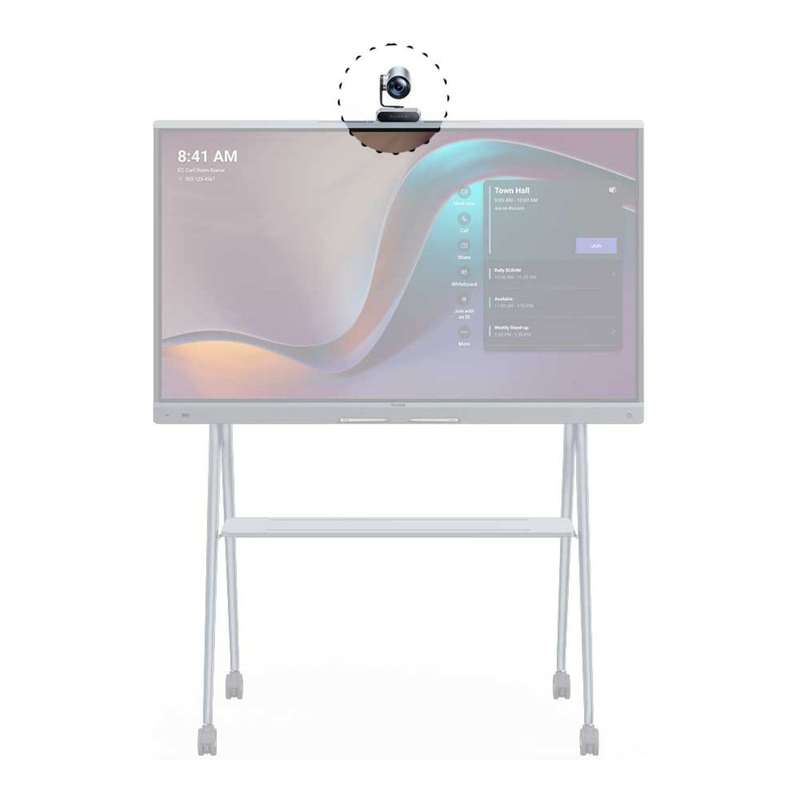

- Plug-and-play integration with MeetingBoard Pro (no cabling or mounts required)
- Compact barrel design with low power consumption
Technical Specifications:
Resolution: 4K (3840 × 2160) - 30 fps
Zoom: 12× optical zoom
Field of View: 90° diagonal
Pan Range: ±100°
Tilt Range: 0° to —90°
Focal Length: 3.4 mm — 40.4 mm
Aperture: f/1.8 — f/3.62
Minimum Illumination: 0.5 lux (day), 0.1 lux (night)
Signal-to-Noise Ratio: > 63 dB
Exposure Control: Auto
White Balance: Auto
Privacy Shutter: Electric (auto)
Mounting Interface: Proprietary MeetingBoard slot connection
Power Consumption: Avg. 8.8 W; Max. 13.3 W; Standby 8.4 W
Dimensions: ~114 mm length, ~147 mm height
Weight: ~1 kg
Compatibility: Yealink MeetingBoard Pro (2nd-gen only)
Warranty: Typically 2—3 years (varies by region)
