Specifications:
Display: 3.2' TFT color screen, resolution 320 x 240 pixels, adjustable backlight brightness
Size: 143.02 x 66.62 x 21.16mm
Weight: 160.7g (including 1200mAh lithium battery)
Environmental Conditions: Operating temperature 0°C to 40°C, storage temperature -20°C to 60°C; Humidity: <75% working, <80% storage
Multimeter Parameters:
DC Voltage: 6.000V to 1000V (resolution: 0.001V to 0.1V)
AC Voltage: 6.000V to 750V (resolution: 0.001V to 1V)
Resistance: 600 to 60M
Capacitance: 999.9nF to 99.99mF
Frequency Response: AC voltage 40Hz—1kHz
Other functions: Diode test, connectivity check

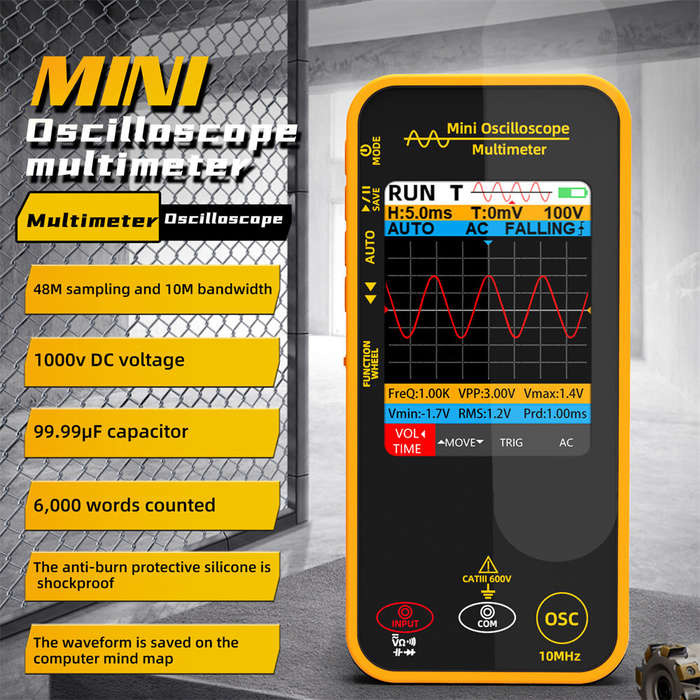

Oscilloscope Parameters:
Bandwidth: 10MHz (sine wave); 100kHz (square wav and others)
Sampling Rate: 48MSa/s
Input Coupling: DC + AC
Impedance: 1M
Maximum Input Voltage: <300V (DC + AC peak)
Scanning Speed: 50ns/div to 2
