YIHUA 8786D 2 in 1 AC 220V LED Display Adjustable Temperature Hot Air Gun + Solder Station & Soldering Iron

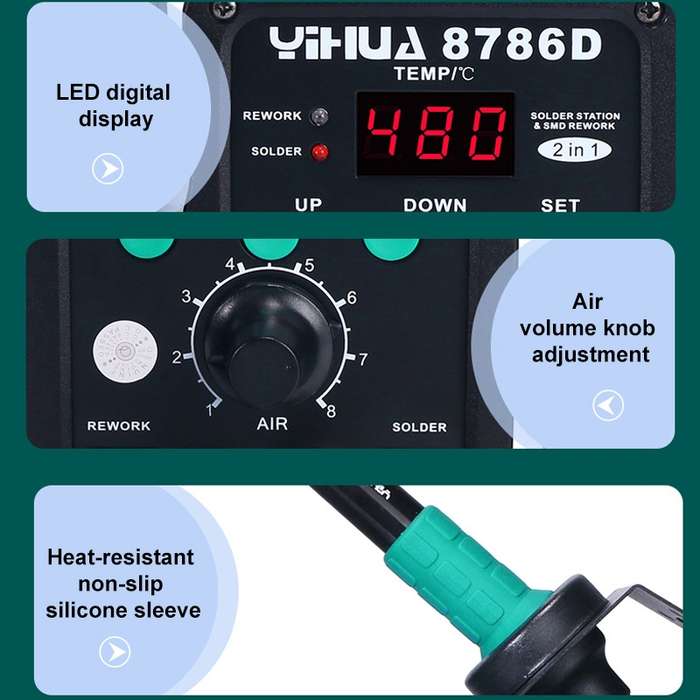

1. High-grade LED digital red LED display, nice appearance and durable.

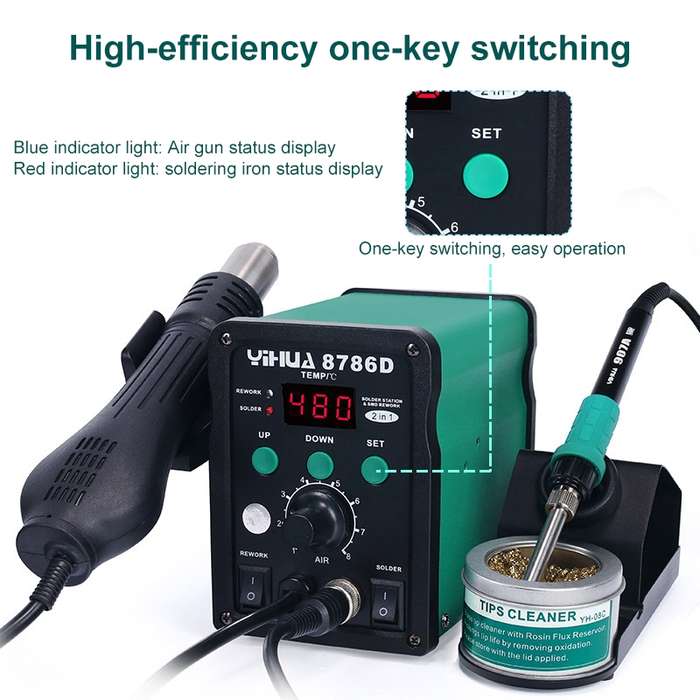

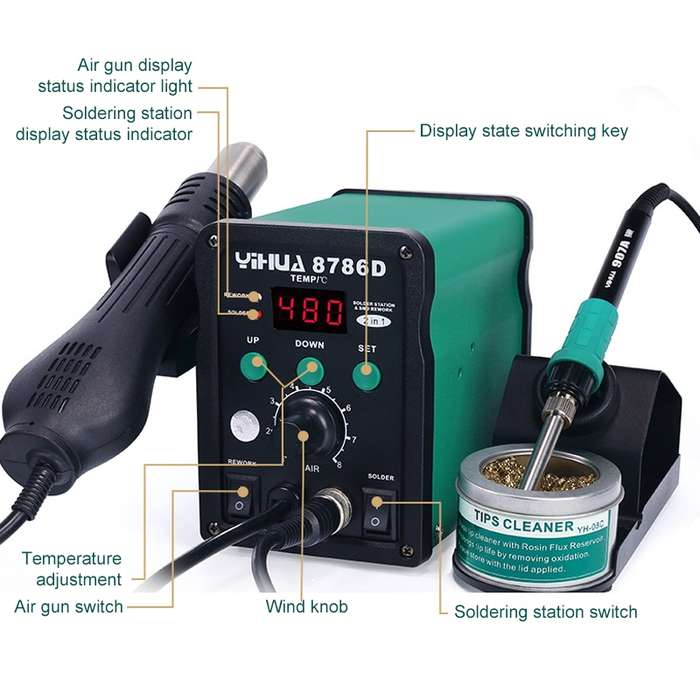

2. Red & blue keypad can conversion function indication, more convenient, visualized and beautiful.
3. Indicate light is blue means hot air gun temperature display state indication.
4. Indicate light is red means iron temperature display state indication.
5. Hot air gun and soldering station perfect combination in 1, not only easy operate and convenient, but also small housing, take up small place, save more worktable place. Suitable for all kinds of maintain and produce place use.
6. Sensors closed loop, microcomputer PID control, precise control temperature, LED digital display, conversion key, more convenient and visualized.

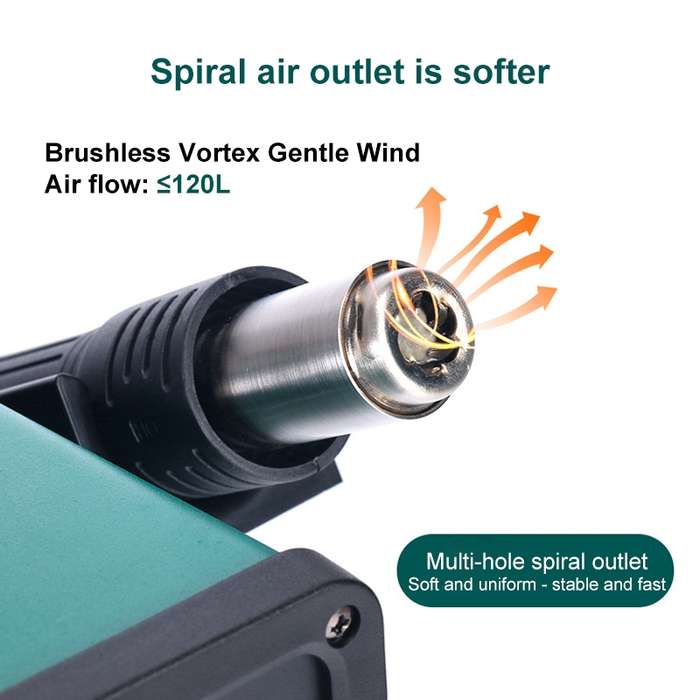

7. Hot air gun with strong power, warming-up quickly, soft airflow outlet, large airflow, extremely suitable for lead-free soldering work.
8. Soldering station heater adopt low voltage supply, efficiently protect sensitive components and work staff.
9. YIHUA 8786D electric soldering iron & hot air gun has Fault self-detective alarming show function.
10. Switchboard:
- Rated voltage: AC: 220V +/- 10% 50Hz
- Total power: 750W +/- 10% (maximum)
- Working environment: 0-40 degree C; relative humidity <80%
- Storage temperature: -20-80 degree C; relative humidity <80%
11. Hot air gun parts:
- Operating voltage: AC: 220V +/- 10% 50Hz
- Output power: 700W +/- 10%
- Temperature range: 100~480 degree C; gas flow rate: 120L / min (maximum)
- Temperature stability: +/- 2 degree C (static)
12. Welding station parts:
- Operating voltage: AC: 26V +/- 10% 50Hz
- Output Power: 40W +/- 10%
- Temperature range: 200~480 degree C;
- Temperature stability: +/- 2 degree C (static)
- Tip ground impedance: <2 ohm
- Tip-to-ground voltage: <2mV


ETP0254
