Features:
1. Adopts PID programmable temperature control technology with an implantable highest-precision PID program for high-speed tracking and detection of actual soldering station temperatures with real-time temperature correction. Temperature stability, minimal temperature error.

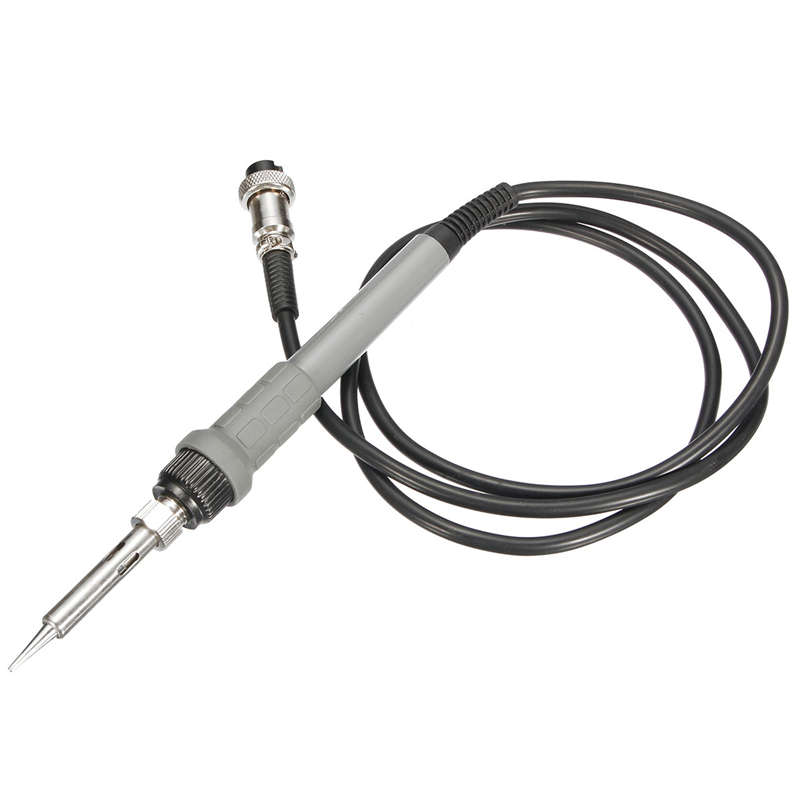

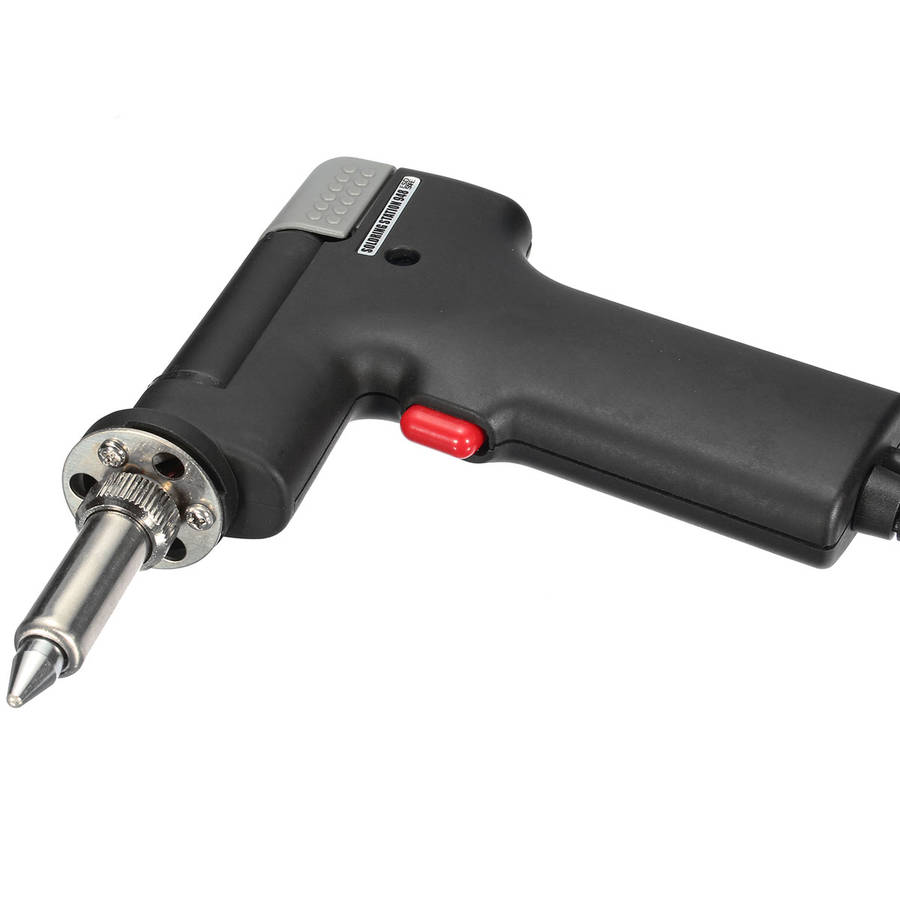

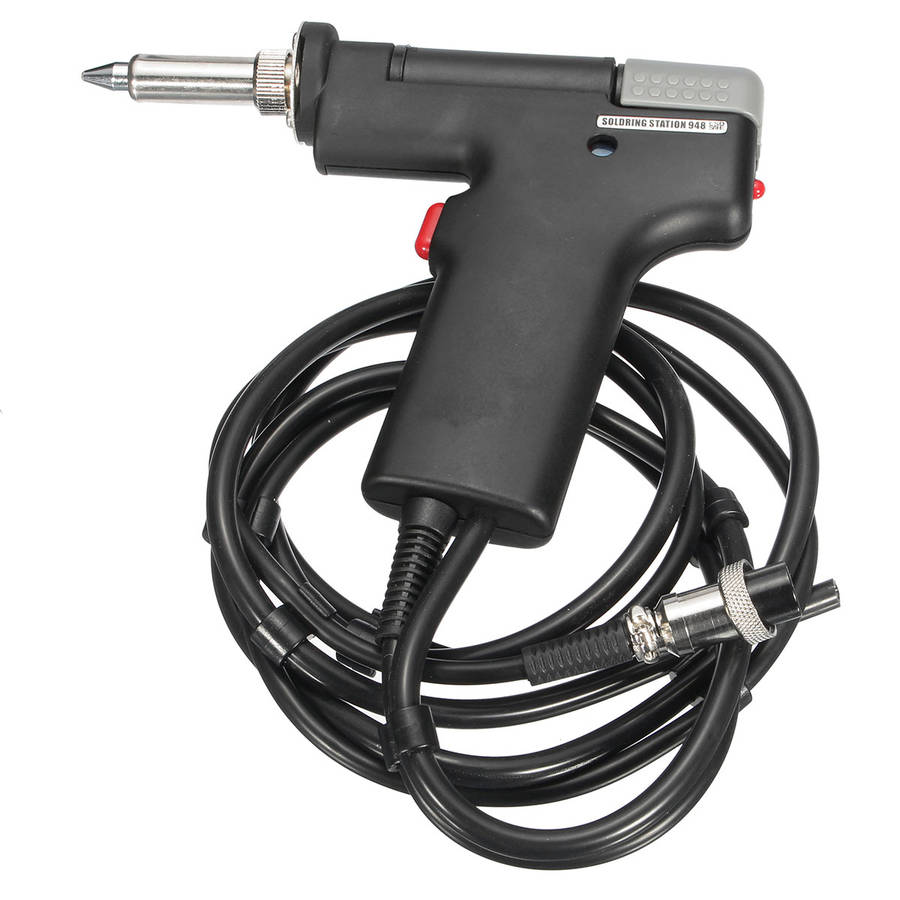

2.With suction tin soldering station and soldering iron function which can intelligent identify and interchange When we need to use the soldering iron remove the suction tin soldering handle ,connected the iron handle It can intelligent identify and read the last time temperature setting parameter of soldering iron .if need to change back to the suction tin soldering station take down the iron handle and connected to suction tin soldering handle ,the machine automatically identify suction tin soldering handle temperature parameters.
3. Anti-static design prevents electrostatic component damage or leakage.

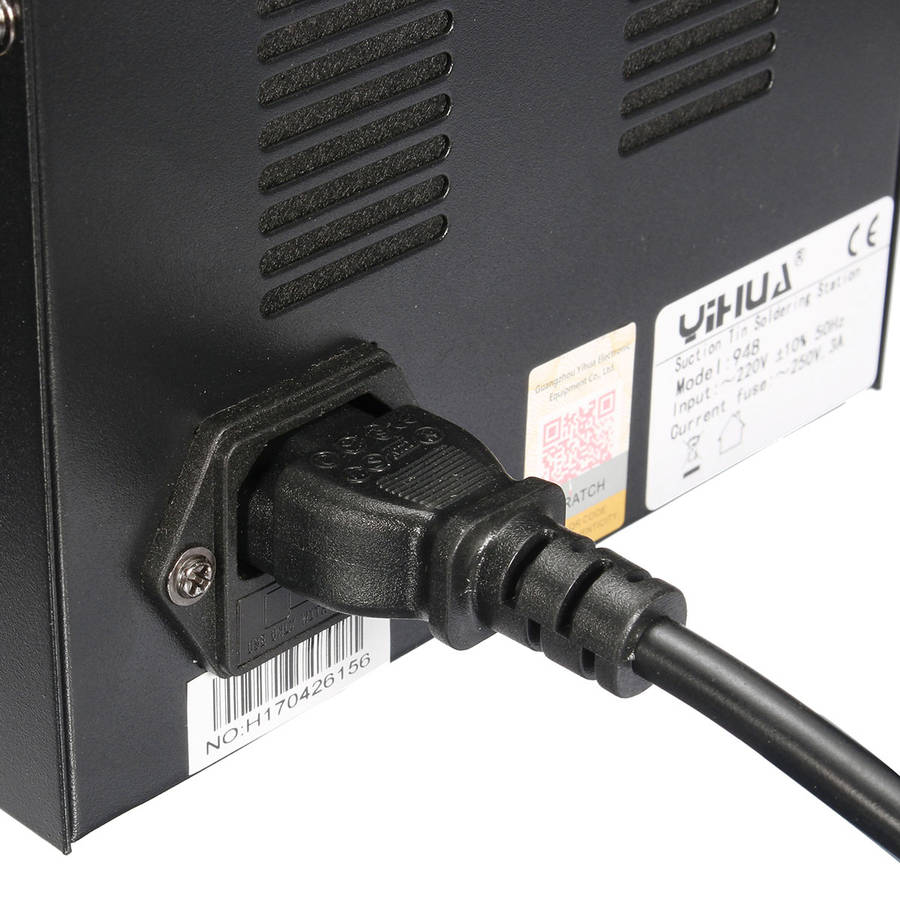

4.Adopts an isolation transformer for power supply to heating elements , low voltage power supply which safety and reliability.
5.Portable built-in vacuum with strong suction does away with external vacuum systems, easy to take away.

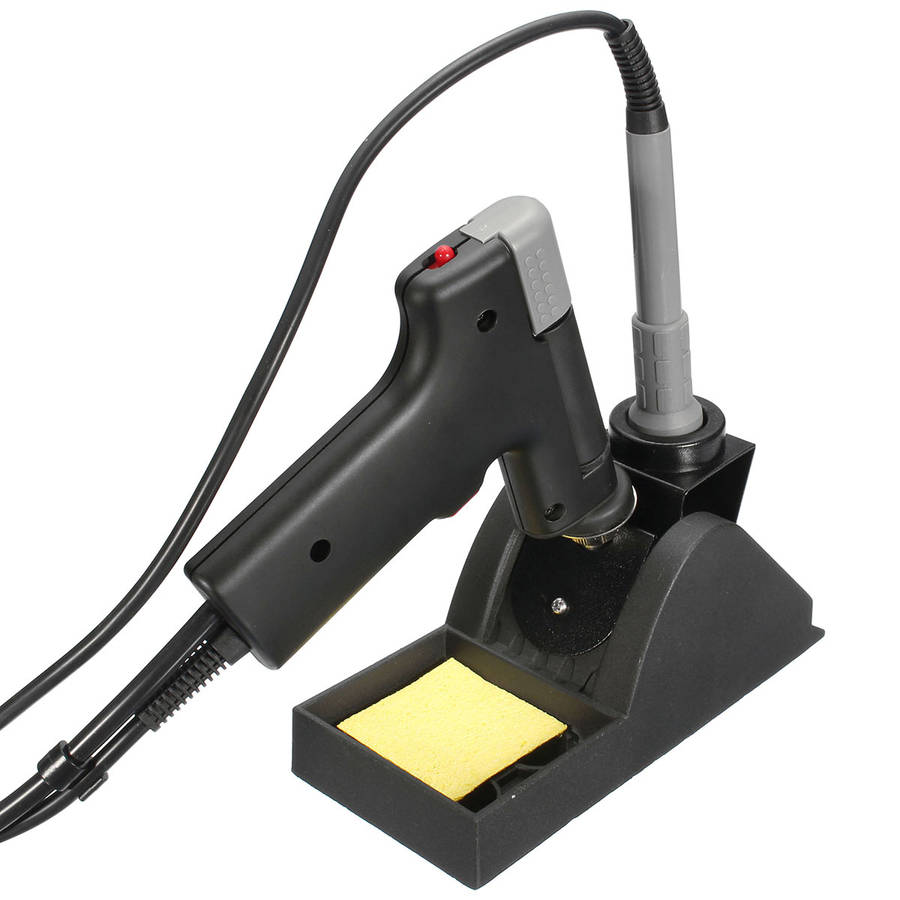

6.Iron stand with the integration of design, installation on the side of the machine , stable ,don't worry stand shift and affect the operation.
7. This device has the following user-friendly design features.
Specification:| Suction tin Soldering station power | 75W |
| Soldering iron power | 60W |
| Temperature range | 200oC -480oC |

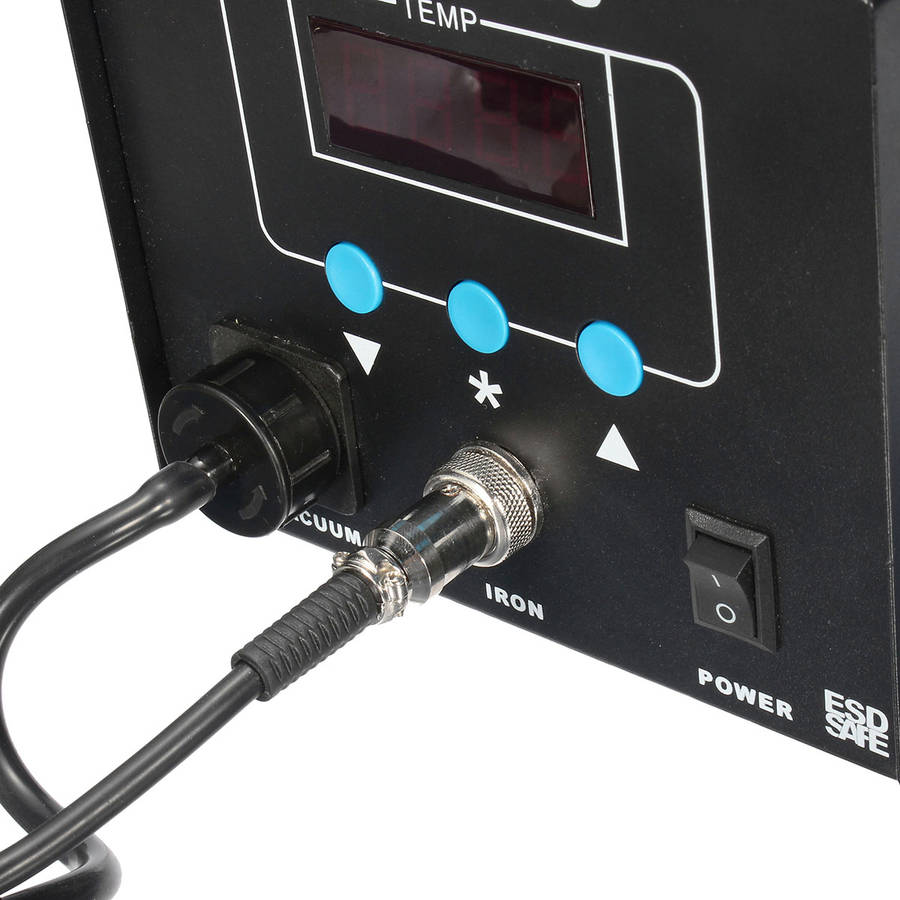

| Display type | LED digital |
| Temperature stability | ±1oC |
| Heating element voltage | AC 26V ±10% |
| De soldering pump power | 12W |
| Vacuum pressure | 0.12MPa |
| Tip of ground resistance | <2OM |

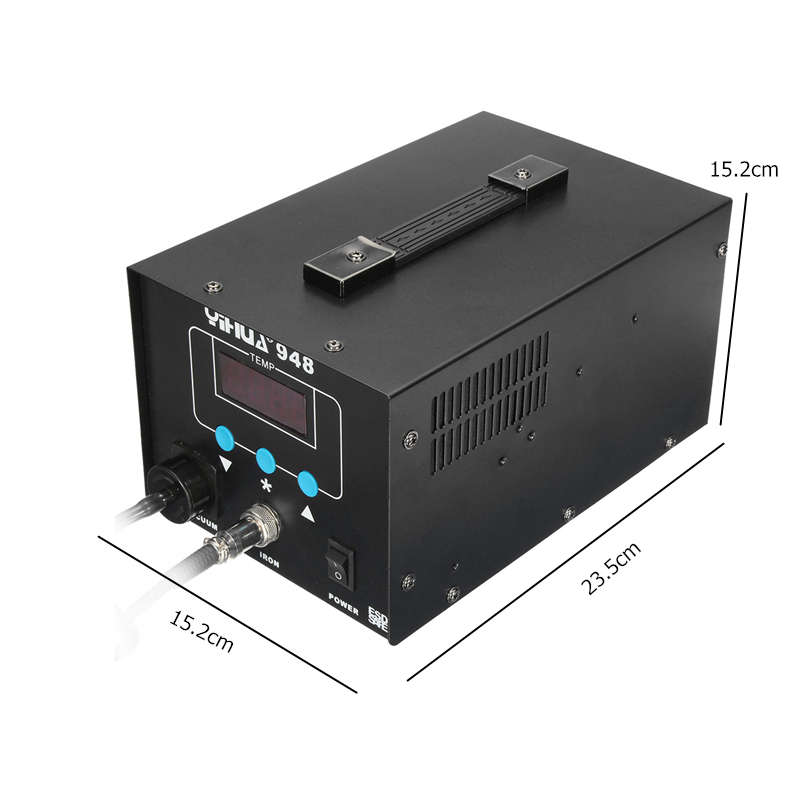

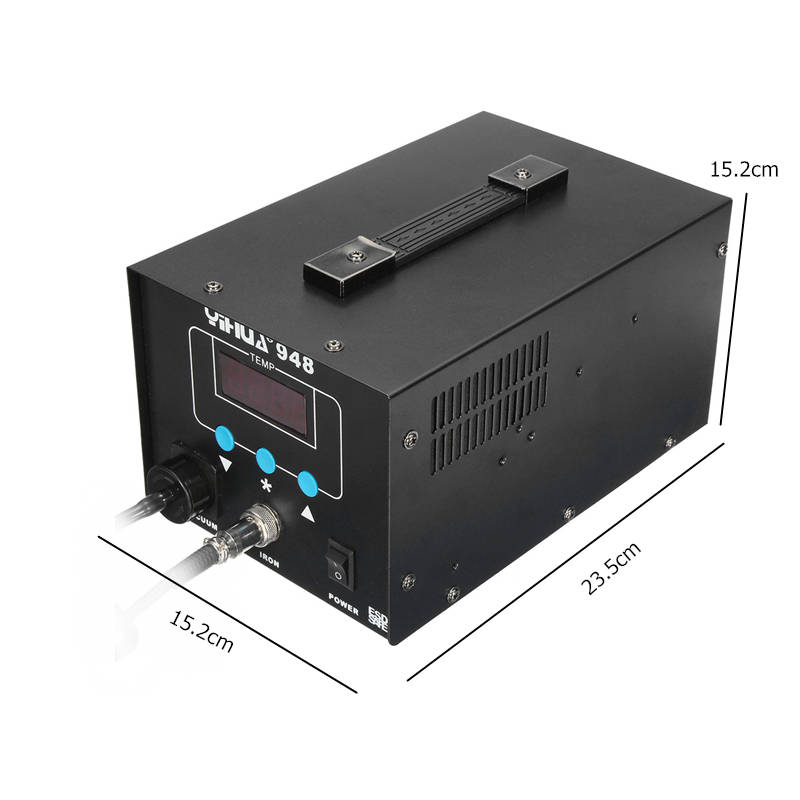

| Dimensions | L234 x W202 x H134mm ±5mm |
| Weight | 4480G |
| Handle cord length | ≥120cm |
| Operating temperature | 0-40oC/32°F-104°F |
| storage temperature | -20oC-80oC/-4°F-176°F |
| Storage humidity | 35% -45% |

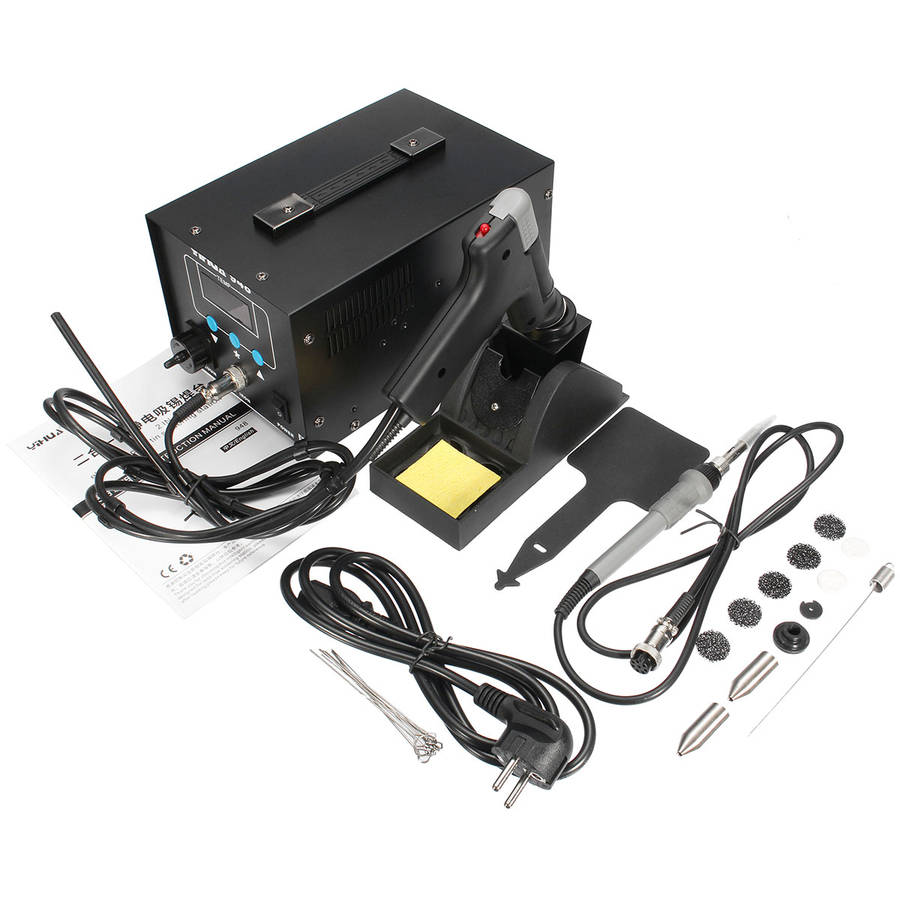

Package included:
1 x Set of Soldering Desoldering Station
Detail Pictures: Package included:
1 set of Soldering Desoldering Station
