TTL mode

The metering system of this camera will detect flash illumination reflected back from the object so as to automatically control flash output in this mode.

In this i-TTL mode, you can also make compensation of flash brightness with the " Output contral knob" within the range of ±3 ev, with the precision of 1/3 ev. ( Only with this feature the camera-flash combination can give you correctly exposed flash photographs automatically.)

Auto Zoom The flash speedlite will move forward and backward with the changes of lens focus to suit different illumintion zones when it is mounted on the camera which supports E-TTL Function, the zoom range is 24mm - 85mm.

You also can set the focus position for the light head manually by pressing the mode swithc button + Power button.

Multi Mode

It's the strobeflash mode, the flash light will output the power, flash frequency and time flash you have set.

M mode

You can set flash luminance as per your favorite, luminance level will be displayed by luminance indicator. When taking photos, you only require setting the flash luminance, adjust the camera and press the shutter, the flash light will flash under the camera synchronous signal.

S1 Mode

It will work with the first work of the master flash synchronously in this mode, with the result consistent with the use of radio slave. ( When you use this mode, your master flash should be set at manaul flash, the TTL flash system with pre-flash function and the red-reduction function with multiple flashes should not be used.)

S2 Mode

It is very similar to S1 mode, but it can support the master flash in TTL mode. In particular, if S1 mode can not have correct and synchronous flash with the inbuilt flash, you can try to use S2 mode.

Parameters

Guide Number     33

Flash Mode TTL / M / Multi / S1 / S2

Circuit design Insulated Gate Bipolar Transistor (IGBT)

Zoom Range Auto, 24mm, 28mm,35mm, 50mm, 70mm, 85mm

Vertical rotation angle -7~90 degree

Horizontal rotation angle 0~270 degree

Power  4 X AA size Batteries ( Alkaline or Ni-MH are usable)

Lighting times 100 - 1500 times (with AA alkaline batteries)

Recycle Time less than 3s ( AA alkaline cell used)

Color Temperature 5600K

Flash Duration 1/800S - 1/20000S

Flash Control TTL auto flash or manual level 8 light quantity output contral with 0.3 stop increment

Dimensions 60 x 72 x 172mm



Advanced Application:



 1. TTL Mode(TTL)

 2. M Mode(M)

 3. Multi Mode(Multi)

 4. Optical Slave (S1 and S2)

 5. Auto Zoom Head (24-85mm)

 6. Manual Zoom (24mm, 28mm,35mm, 50mm, 70mm, 85mm)

 7. Pre-Flash &FE Lock

 8. Exposure Compensation

 9. Rear-curtain Sync

 10. AF-assist Lamp

 11. Reflector Board

 12. Wide-angle Diffuser

 13. Power-saving

 14. PC port

 15. Fast Recycling Time



Suitable for:

Nikon D7000 D5100 D5000 D3100 D3000 D400 D300s D300 D200 D90 D80 D60 D40x D40.



Package Including:

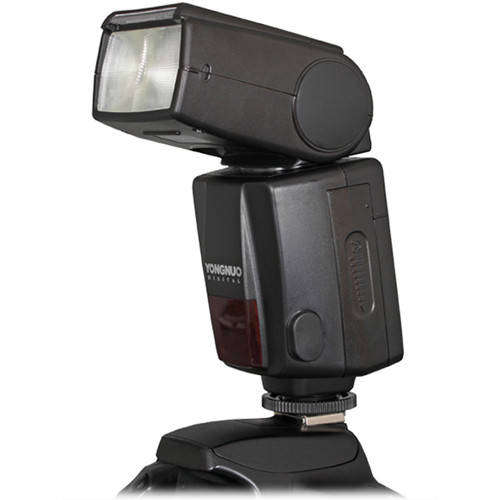

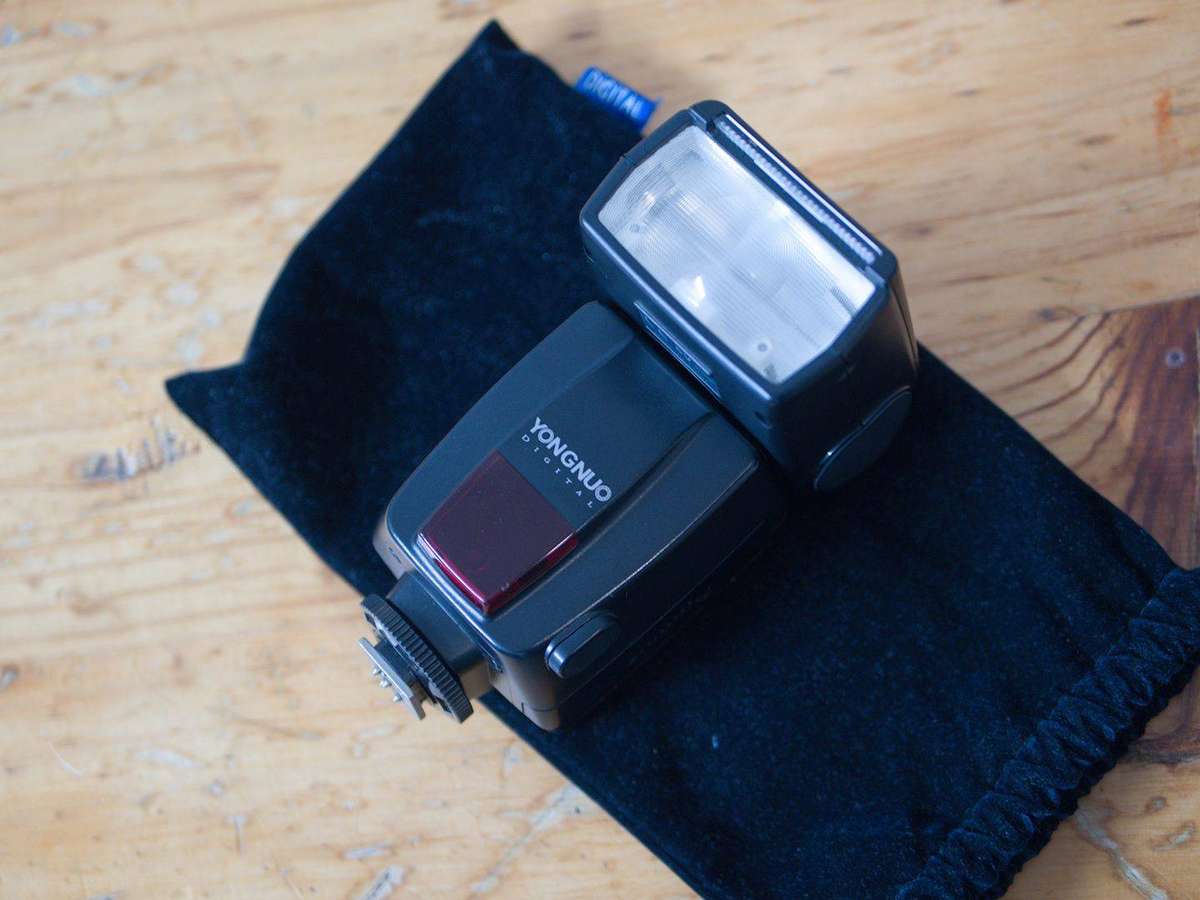

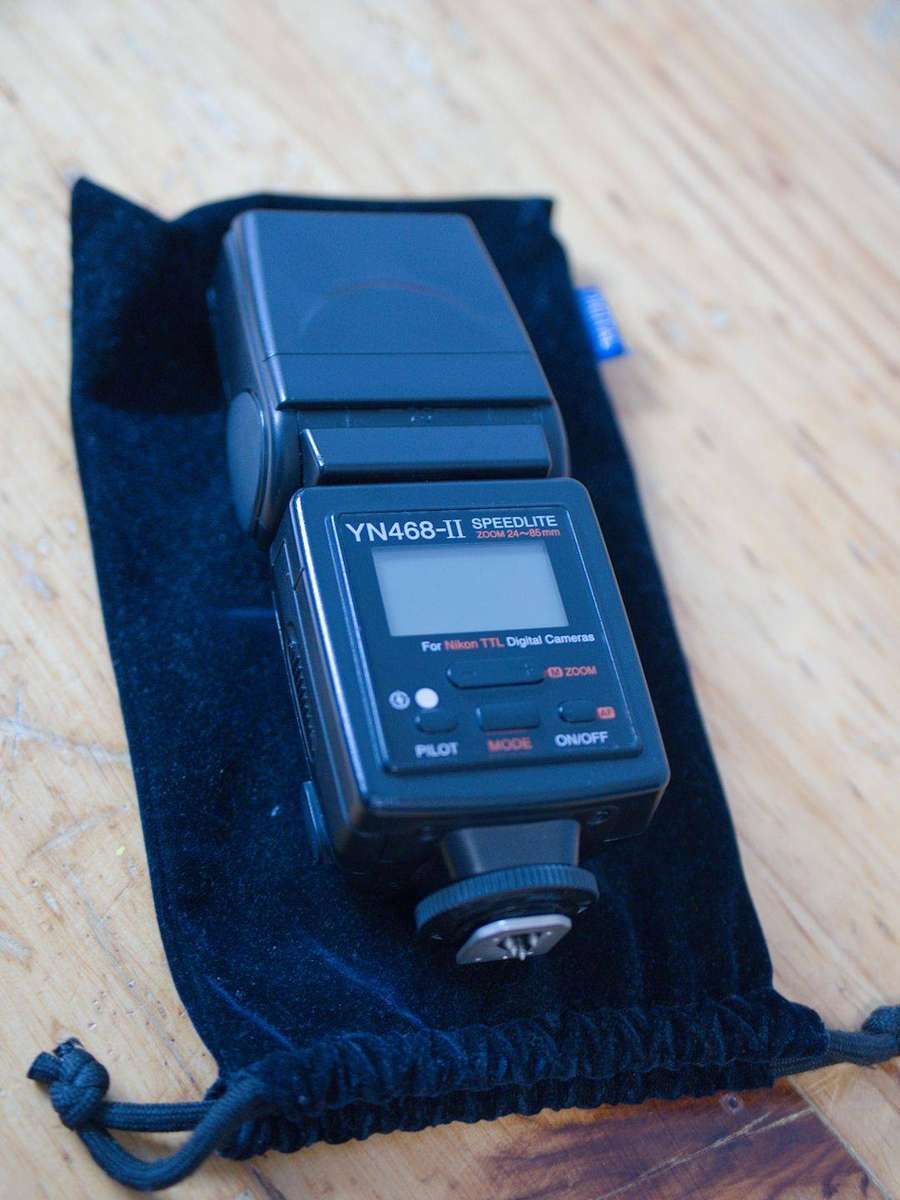

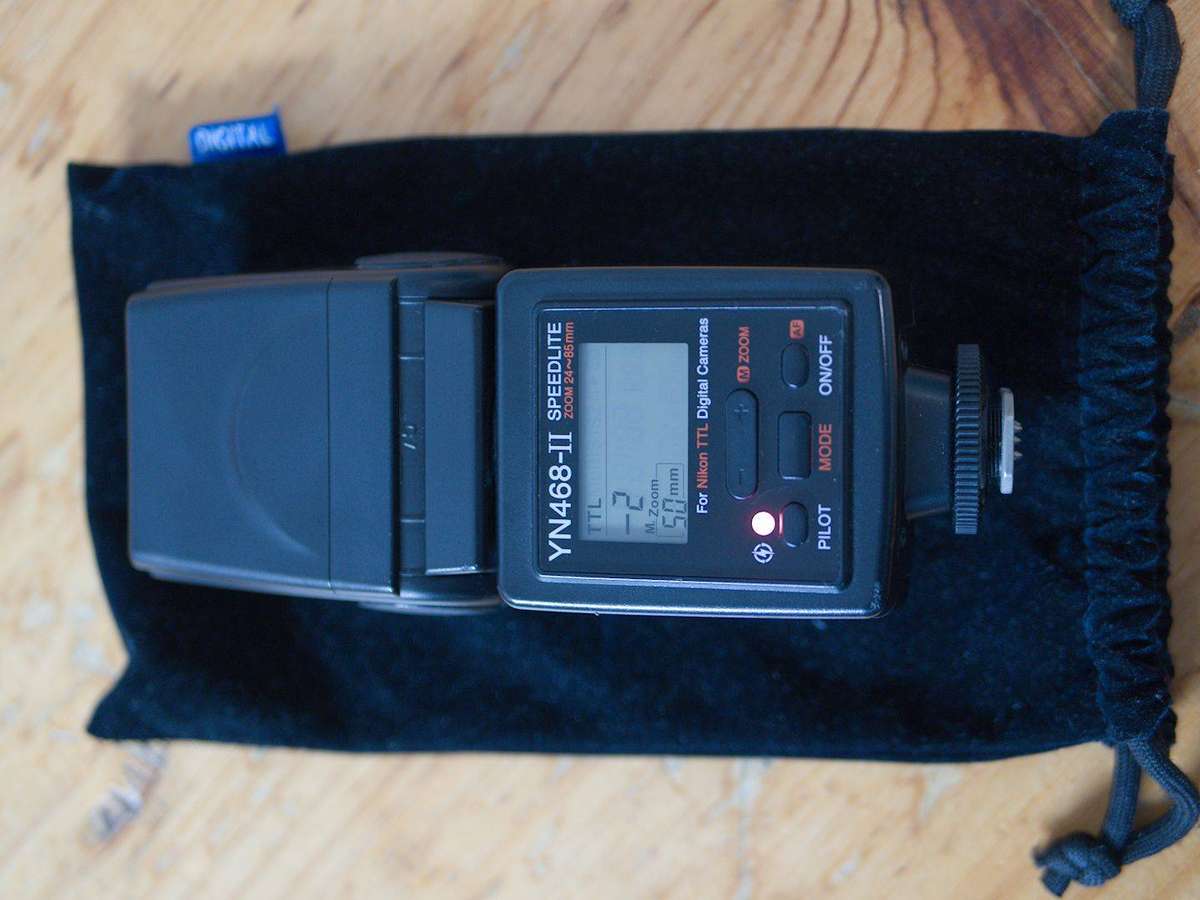

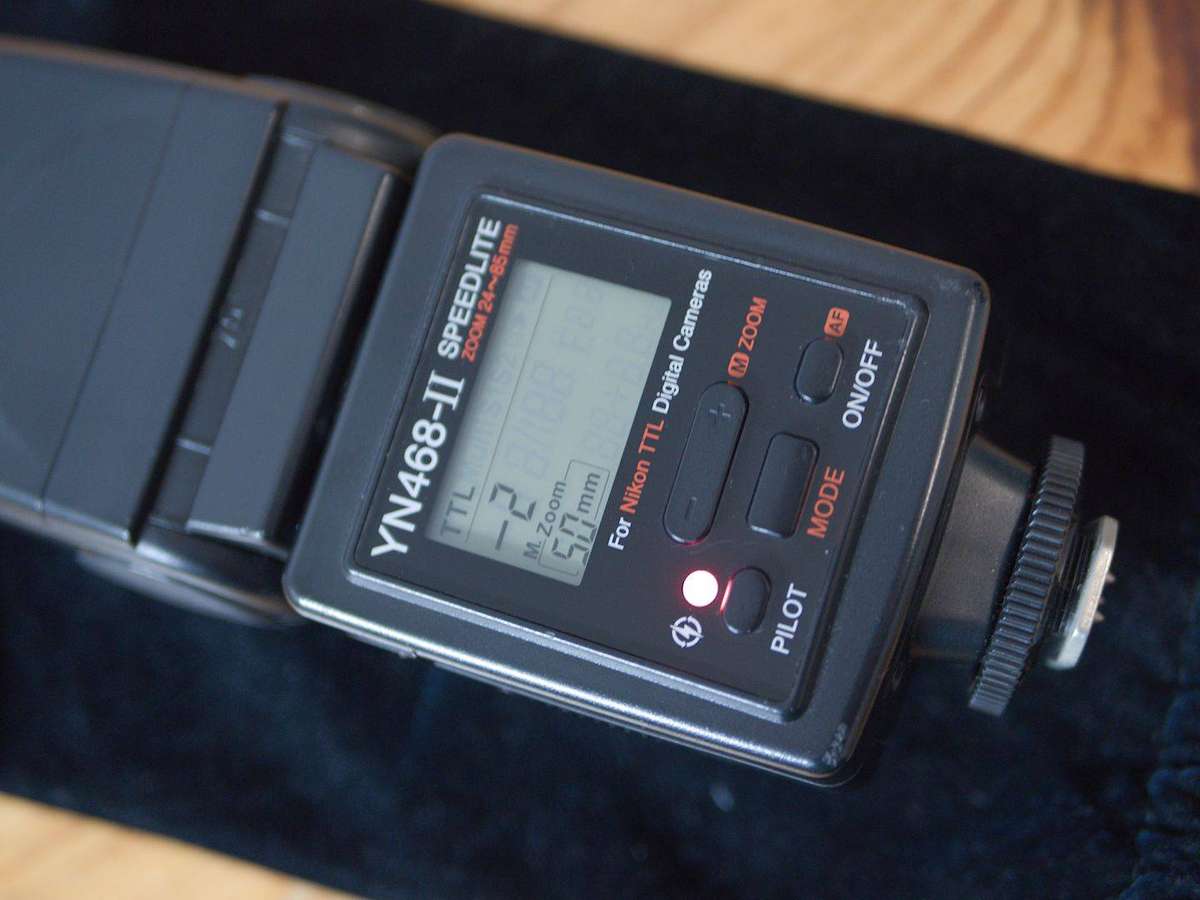

1 x YN-468 II Flash Speedlight with Metal Hot Shoe

1 x Flet Storage Bag

(Batteries not included)

Condition:

8/10

Problems:

Flash is still in excellent condition.

Has been tested and fires.

No box, no other accessories.
