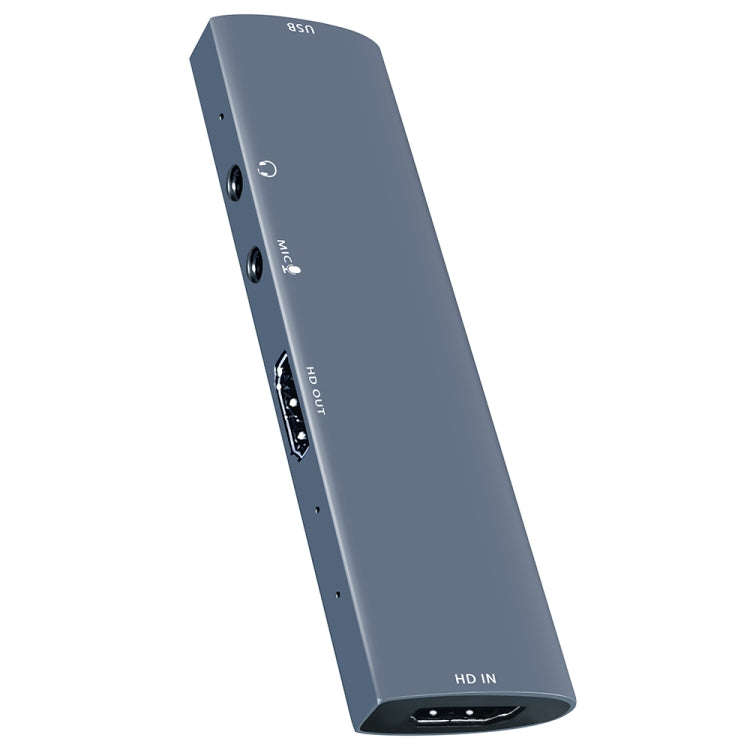

Z46 HDMI + Mic + Audio + USB Video Capture Card with Loop

1. The product complies with USB video UVC specification and USB audio UAC specification
2. Supports operating systems such as Windows, Android, Linux and MacOS
3. Support most acquisition software, such as VLC, OBS, Amcap, etc.

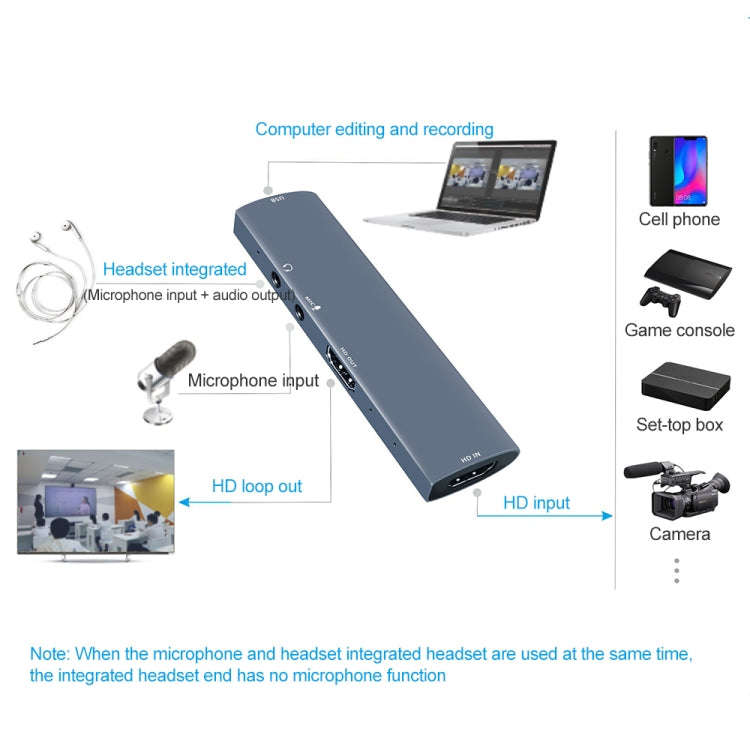

4. Support HD local loop out
5. Support microphone input, the audio port supports a headset integrated (Note: when the microphone and the integrated headset are used at the same time, the integrated headset has no microphone function)
6. Support microphone audio and HD audio overlay collection
7. Input terminal: HD/F input can support 4K, 8/10/12 bit color depth input format
8. Output: USB/F supports 1080P; MJPEG output mode
9. High-definition capture, strong compatibility, smooth picture
10. No need for external power supply, small size and portable
11. Operating environment: -20 Degrees Celsius -65 Degrees Celsius, relative humidity is 5%-95%

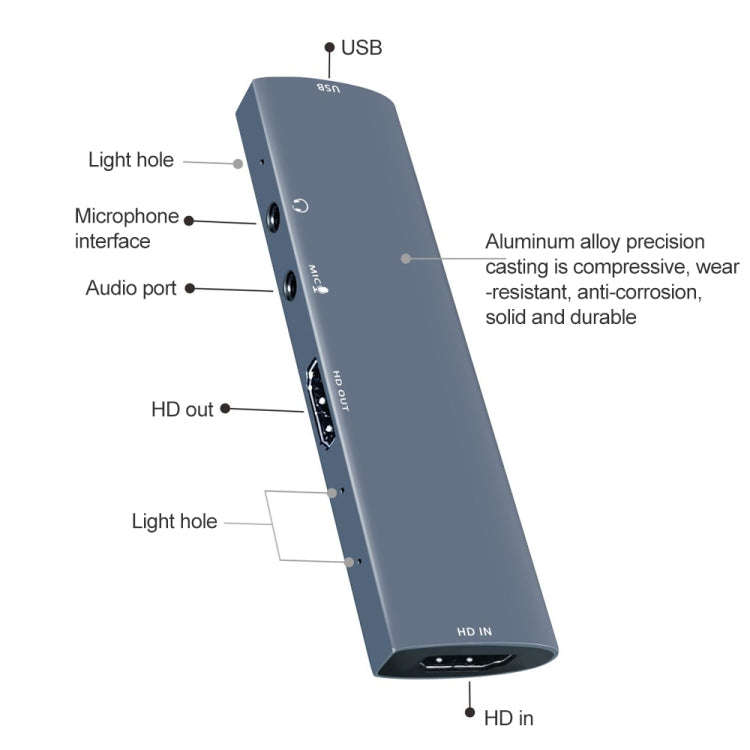

12. Material: aluminum alloy

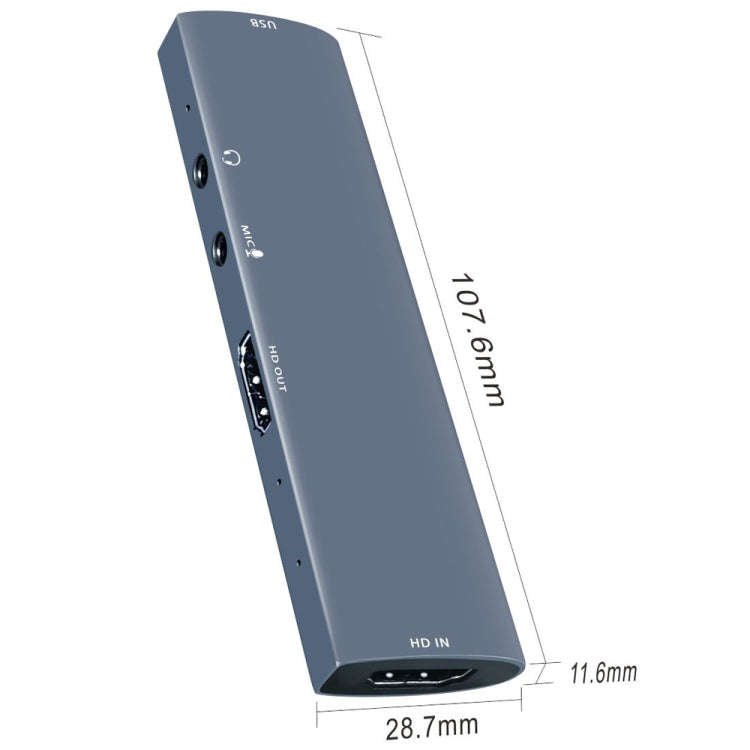

13. Size: 107.6x28.7x11.6mm
