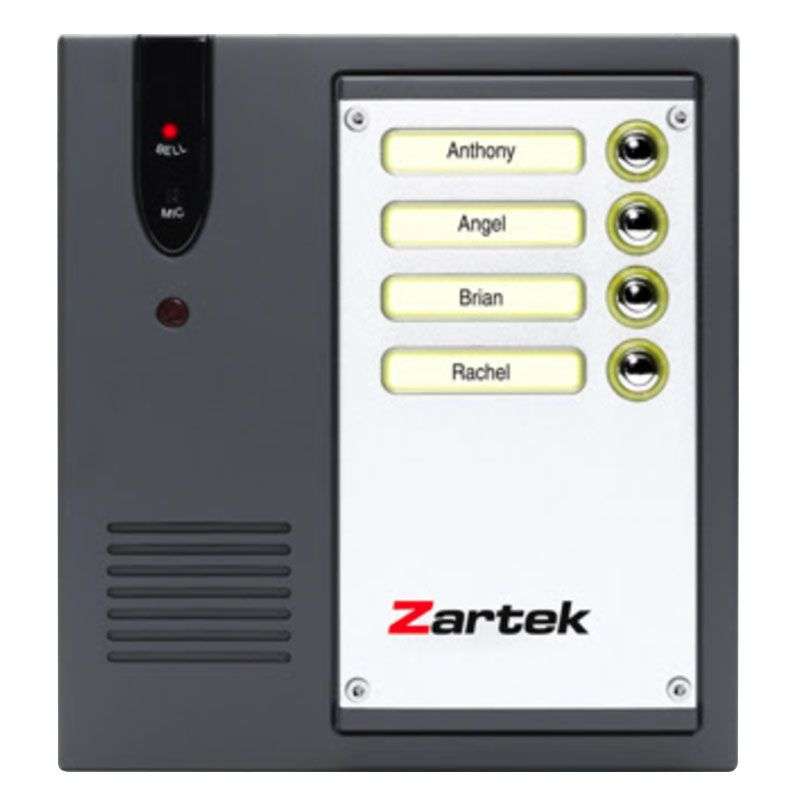

Zartek Four button Digital Wireless Intercom, Gate station with relay board (CDP801)
Description:
- Digital Audio Communication
- Free from Interference
- Four Buttons / Separate Channels
- Long Range
- Reliable & Simple
- Easy Installation
- Portable Handset (not included)
- Low Cost System
- Rainproof & UV resistant
- Gate Triggering
- Battery Back-up
Hands-free Use for Visitor & PTT for Resident
Gate Triggering (relay included)
Gate powered from supply (optional) or gate motor 12v
Gatestation battery Back-up with 4 AA batteries (not included) (not for permanent installation)
Manual Programming (see manual for details)
Mount on standard gooseneck or against wall (not inside rain shield which blocks signal unless using external antenna)
Selectable audio, visual or vibration alert
Outdoor temperature reading on handset
Handset with rechargeable Li-ion battery
Low risk of lightning damage
Out-of-range and low battery level alert
Multiple Handsets (ZA-651 optional extra handset)
Additional Gatestations (ZA-652 optional extra single button gatestation)
Intercom function between handsets
The Zartek Wireless Intercom System is newly developed and 6 years of R&D in the making. It is fully approved by ICASA.
Communication is initiated from the gatestation by pressing the bell button. All the handsets linked will ring and communication is established. Communication is simplex so only one person can speak at a time but the gatestation's microphone is always active so the visitor does not have to press any key to speak. The inside handset can enter into the conversation at any time by pressing a PTT button.
Each of the four buttons on the gate station can be linked to separate handsets to be called individually. There is no intercommunication between handsets linked on different buttons.
There is a lock trigger button on the handset for opening a motorized gate or striker lock. This can trigger the front gate station at any time (hold in for 3 seconds) or during a call (press once).
Multiple handsets can be added for the same house to have internal communication. There is a handset calling button which works on push-to-talk.
Additional (back) gate stations can be added on the system to ring the same handset/s. Only single button add-on Gate stations can be added for a particular handset.
Programming is done manually to link handset or handsets to a button.
There is a light sensor which illuminates the bell button at night
Extras that can be ordered for this Products:
Model # ZA-651: Handset with Charger
Package includes:
Handset with desk-top Charger
User Manual
Model # ZA-652: Back Gatestation (SLAVE)
Package includes:
1 button Back Gate Station (only for adding on extra unit: SLAVE)
Gate Power Supply
Special Tool
Manual
Relay board
GE-304 Optional External Antenna with L bracket and 8m cable, for signal clarity improvement. Only useful when clear line-of-sight can be achieved above walls.
LM-120 Regulated 12V Power Supply for gate station, when there is not 12V available from gate motor
GE-304 Optional External Antenna with L bracket and 8m cable, for signal clarity improvement. Only useful when clear line-of-sight can be achieved above walls.
