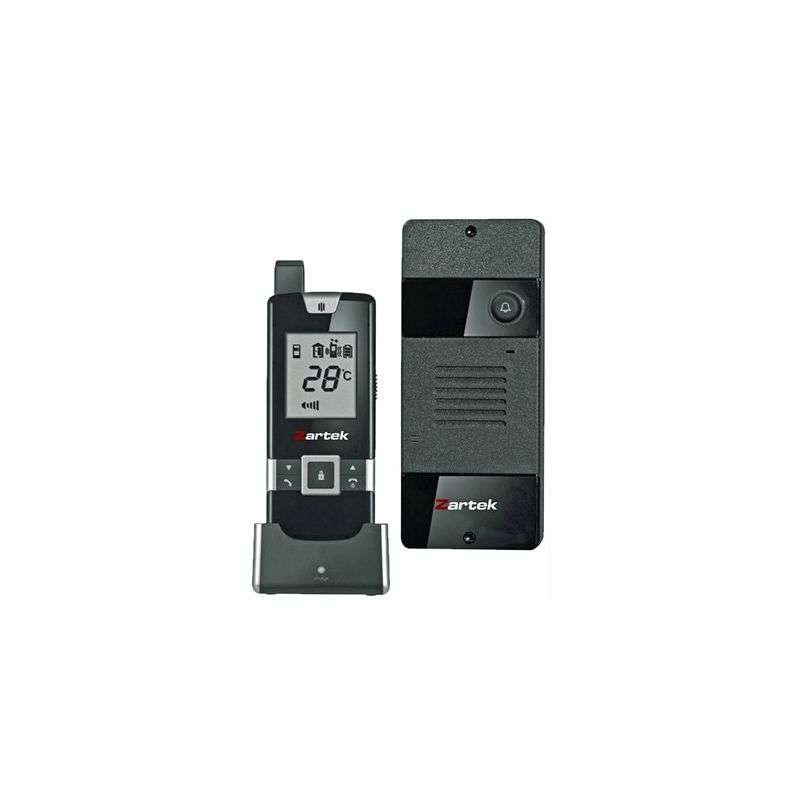

Zartek One button Digital Wireless Intercom kit
FEATURES
- Digital Audio Communication
- Free from Interference
- Long Range
- Reliable & Simple
- Easy Installation
- Portable Handset
- Low Cost System
- Rainproof & UV resistant
- Gate Triggering
- Battery Back-up
Hands-free Use for Visitor & PTT for Resident
Gate Triggering (relay included)
Gate powered from power supply included
Gatestation battery Back-up with 3 AAA batteries (not included) (not for permanent installation)
Manual Programming (see manual for details)
Mount on standard gooseneck or against wall (not inside rain shield which blocks signal)
Selectable audio, visual or vibration alert
Outdoor temperature reading on handset
Handset with rechargeable Li-ion battery
Low risk of lightning damage
Out-of-range and low battery level alert
Multiple Handsets (ZA-651 optional extra handset)
Additional Gatestations (ZA-652 optional extra gatestation)
Intercom function between handsets
1 Year limited warranty (see manual for details)
Fully approved by ICASA
IDEAL FOR: Houses, Residential properties, Small Office buildings, etc
Typical Range is 50-70m in built-up areas and further in open terrain.
Functions:
The Zartek Wireless Intercom System is newly developed and four years of R&D in the making. It is fully approved by ICASA.
Communication is initiated from the gatestation by pressing the bell button. All the handsets linked will ring and communication is established. Communication is simplex so only one person can speak at a time but the gatestation's microphone is always active so the visitor does not have to press any key to speak. The inside handset can enter into the conversation at any time by pressing a PTT button.
There is a lock trigger button on the handset for opening a motorized gate or striker lock. This can trigger the front gate station at any time or during a call.
Multiple handsets can be added for the same house to have internal communication. There is a handset calling button which works on push-to-talk.
Additional (back) gate stations can be added on the system to ring the same handset/s. When a handset is on a call with a back gate, a B will show on the screen and the relay on that Gatestation can be triggered during the call
Programming is done manually to link handset or handsets to a button.
There is a light sensor which illuminates the bell button at night.
Extra that work with this Products:
Model # ZA-650: Gatestation (MASTER) with Handset Kit
Package includes:
Gate Station
Handset with desktop charger
Gate Power Supply
Special Tool
Manual
Relay board
Model # ZA-651: Handset with Charger
Package includes:
Handset with desk-top Charger
User Manual
Model # ZA-652: Back Gatestation (SLAVE)
Package includes:
Back Gate Station (only for adding on extra unit: SLAVE)
Gate Power Supply
Special Tool
Manual
Relay board
Spare GE-286 Rechargeable Battery 3.7V Li-ion, wire with connector
