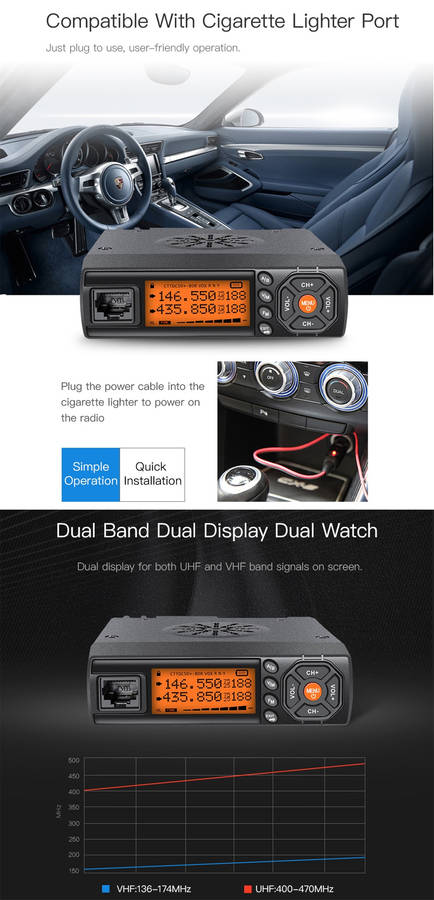

Dual Receiving. A&B channel switch can receive simultaneously on different brands.
Dual Compandor.
Dual Scrambler.
Dual DTMF encode/decode.
Dual ANI code.

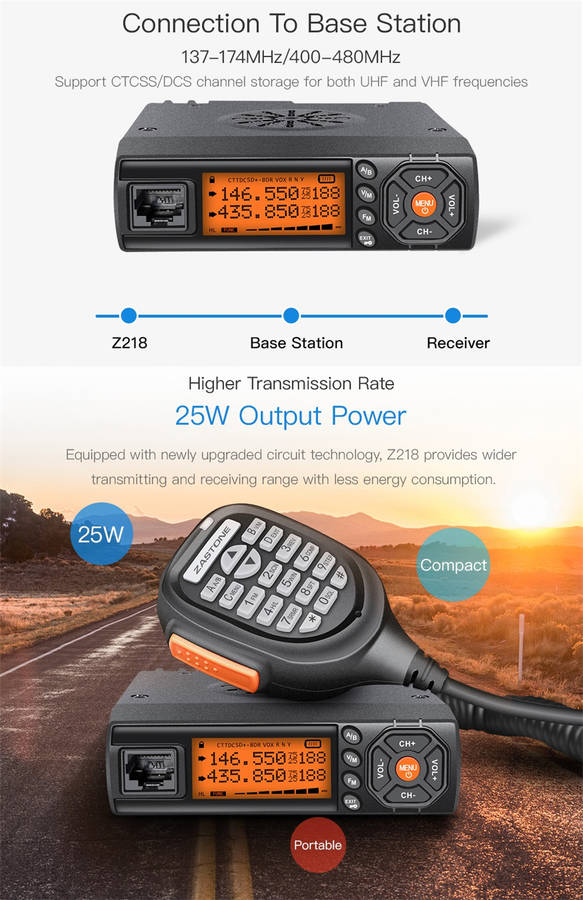

UHF/VHF: 25W

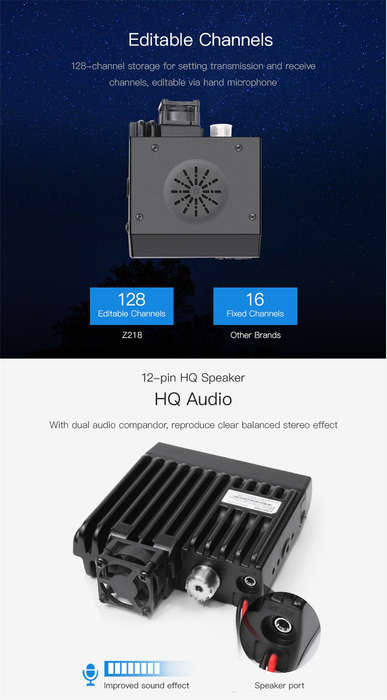

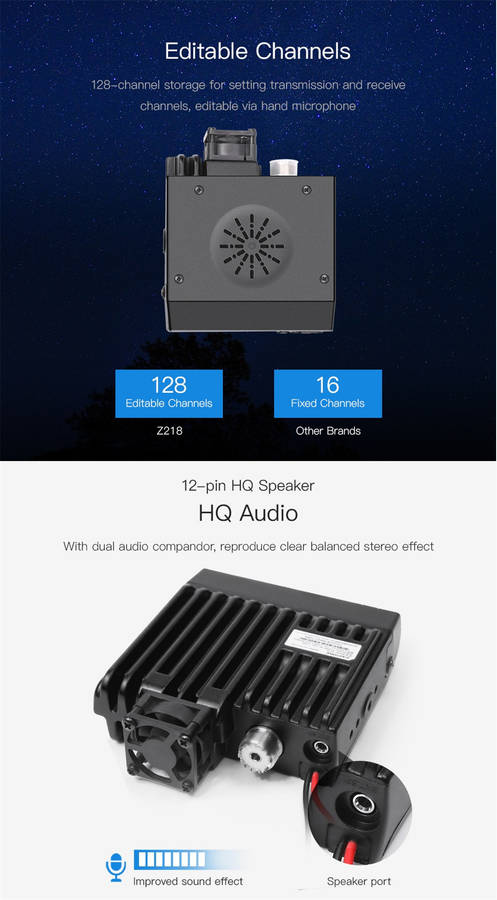

UHF/VHF:128 memory channels
Remote stun and monitor.
Team calling and group calling.
Frequency range | VHF: 136-174MHz UHF: 400-480MHz | |
Channel | 128 | |
System | F3E(FM) | |
Antenna Impedance | 50Ω | |
Frequency stability | ±2.5ppm@-10¬トテ to +60¬トテ | |
Input voltage | Direct current 13.8V(±15%), Negative grounding | |
Output power | High power: ≤25W; Middle power: ≤10W; Low power: ≤5W | |
Max frequency deviation | ±5KHz | |
Working current | Receive | 0.3A (SQL) |
Transmit | 5A (Max) | |
Noise radiation | ≤-60dB | |
Flexibility | ≤0.2uV(12dB SINAD) | |

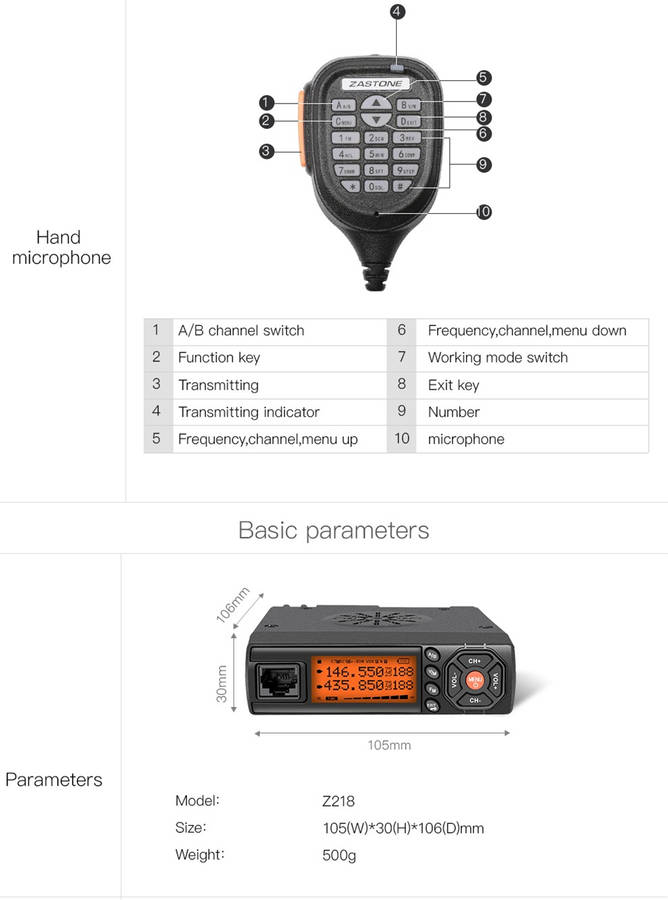

Dimension | 106*105*30mm | |
weight | 500g |
