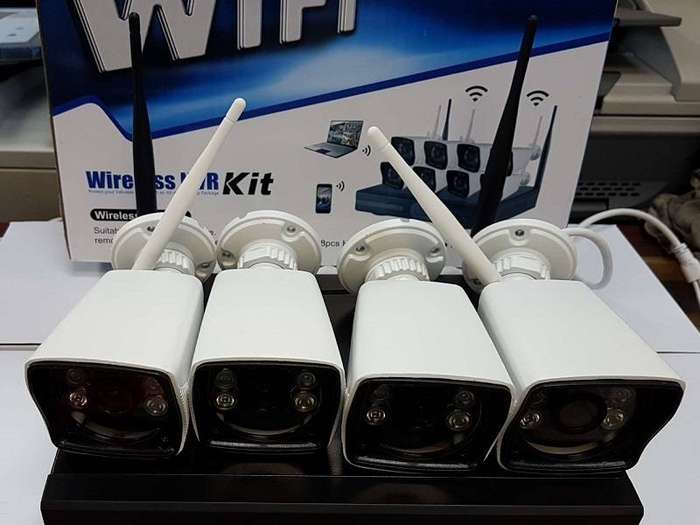

960P/720PWireless Network Video Recorder
* Built-in WIFI module with high-performance and high stability
* Automatically Connection between NVR and IPC
* Support video preview/recording/playback/backup
* Support the mixed use of wireless and wire,support different scene
* Support Android/IOS/PC remote
Wireless NVR Specification
Model K9604-W
Video input 4ch D1/960H720P/960P
HDMI Output 1ch`a3`acResolution`a3`ba1024x768, 1366x768, 1440x900, 1920x1080
VGA Output 1ch`a3`acResolution`a3`ba1024x768, 1366x768, 1440x900, 1920x1080
Resolution D1/960H/720P/960P
Playback 4ch
Recording Manual,time,motion dection,alarm
Storage 1 SATA
Storage capacity 4TB for each HDD
Network interface 1 RJ45 10M/100M`a3`ac2 WIFI connector
USB interface 1 USB2.0
Audio interface 3.5 inch headphone jack`a3`a8Optional`a3`a9
Power consumption `a1`dc5W
Power DC12V
working temperature -10`a1`e6--`a3`ab55`a1`e6
Dimension`a3`a8mm`a3`a9 258mm`a1`c1210mm`a1`c142mm
Working humidity 10`a3`a5--90`a3`a5RH

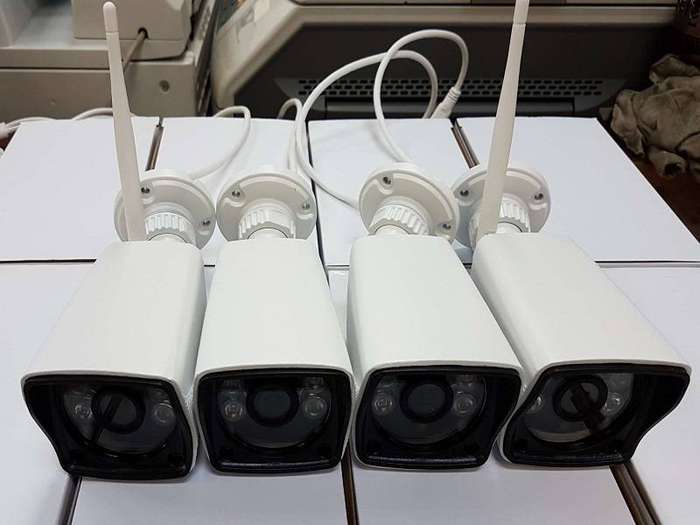

WIFI Camera Specification
Technical Parameters Model EA3010-W EA3013-W
Sensor 1/4 Progressive Scan Sensor 1/3 Progressive Scan Sensor
Signal System PAL/NTSC
Resolution 1280 x 720 16 : 9 High Defination 1280 x 960 4 : 3 High Defination
Minimum illumination Color: 0.1 Lux; B/W: 0.01 Lux
Shutter 1/25s to 1/25,000s
Lens 4/6mm
OSD Date Time & Title
White Balance Auto
Day&Night Auto / Color / BW
3D-DNR Auto
Mirror/Flip On / Off
Frame Specification Two Streaming at the Same Time:
H.264 1280x720@25fps or below
H.264 640x360@25fps or below Two Streaming at the Same Time:
H.264 1280x960@15fps or below
H.264 640x360@15fps or below
S/N > 39.1 Db
Interface RJ45 / WIFI 802.11b/g/n
General Specification Anti-thunder Level Standard IEC61000-4-5
Working Temperature/Humidity -10`a1`e6 to +50`a1`e6 / 30% to 80% RH
Working Temperature/Humidity -20`a1`e6 to +60`a1`e6 / 20% to 90% RH
Power Input DC12V-1A
Power consumption `a1`dc6W
Size 205(L)`a1`c170(W)`a1`c155 (H)mm
Weight 500g
Level of Protection IP66
