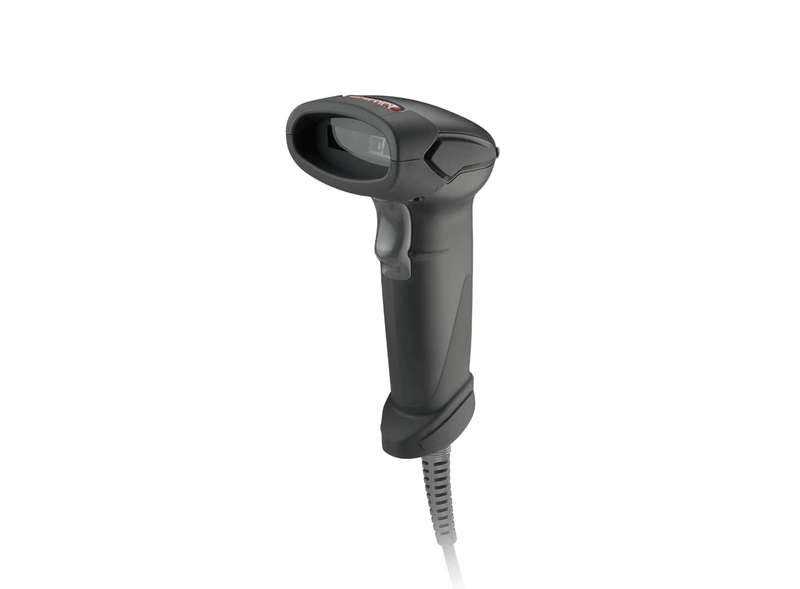

Zebex Guntype Hanheld CCD Scanner USB Interface | Z-3190/USB

Zebex Guntype Hanheld Ccd Scanner Usb InterfaceZebex Handheld Guntype USB Interface CCD Scanner - Z-3190/USB - Embedded with ZEBEX most advanced decoding technology, it can recognize most of the popular 1D barcodes on the market including GS1 and DataBar with superior scanning performance as high as 330 scans per second. - Built with rugged, gun-type design, Z-3190 has a highly reliable exterior that can survive extremes of temperature and shock and vibration; it also includes ZEBEX proprietary decoding technology and firmware within the system, which behave reliably and predictably in all situations. - 32-bit proprietary Ultrascan decoding technology - GS1 DataBar decoding capability - Analog image capture technology - Synthetic rubber handle for max. protection- Captures barcodes on mobile phone, tablet, or computer screens Technical Specifications Light Source - 617 nm visible red LED \Optical System- Linear CCD array Image Sensor - 2500 pixels CCDDepth of Field- Min. Bar Width: - 3 mil - 4 mil: 30 - 90 mm- 5 mil: 30 - 130 mm - 7.5 mil: 10 - 190 mm - 10 mil: 10 - 220 mm- 13 mil: 20 - 320 mm - 20 mil: 10 - 360 mm Note: - DOF may vary depending on environment condition and barcode quality. Scan Angle - 42 degree; Pitch/Roll/Skew Angle- +/- 75 degree; / +/- 25 degree; / +/- 60 degree Scan Rate - 330 scans per second Print Contrast - Min. 30% at UPC/EAN 100%Reading Indicator- Beeper and LED Programmable Operation - Beeper tone & volume System Interface - Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
