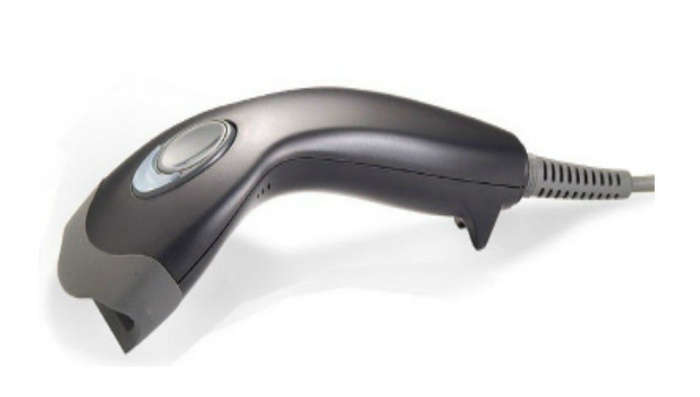

Zebex Z-3100PS2 Long Range PS2 CCD Black Scanner

Zebex Long Range PS2 CCD Black Scanner

- Z-3100 is the upgraded version of ZEBEX middle-range handheld CCD scanner with faster scan rate, longer scanning depth and better decoding ability.

- At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar.

- It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.

- Proprietary Ultrascan decoding technology

- Streamline design and Large trigger for effortless operation

- 32-bit micro processor unit

- Analog image capture technology

- Support presentation scan mode

- 0 - 100,000 Lux light immunity

- Captures barcodes on mobile phone, tablet, or computer screens

Technical Specifications

Light Source

- 617 nm visible red LED

Optical System

- Linear CCD array

Microprocessor

- 32-bit

Depth of Field

- 4 mil: 0 - 60 mm

- 5 mil: 0 - 100 mm

- 7.5 mil: 0 - 180 mm

- 10 mil: 0 - 220 mm

- 13 mil: 0 - 300 mm

- 20 mil: 0 - 350 mm

Note:

- DOF may vary depending on environment condition and barcode quality.

Scan Angle

- 42 degree

Scan Rate

- 330 scans per second

Print Contrast

- Min. 30% at UPC/EAN 100%

Indicator

- Blue LED

Beeper Operation

- Programmable tone & beep time

System Interface

- Keyboard, RS-232, OPOS, JPOS

What's in the box

12 x FLY-Q800

1 x Documentation
