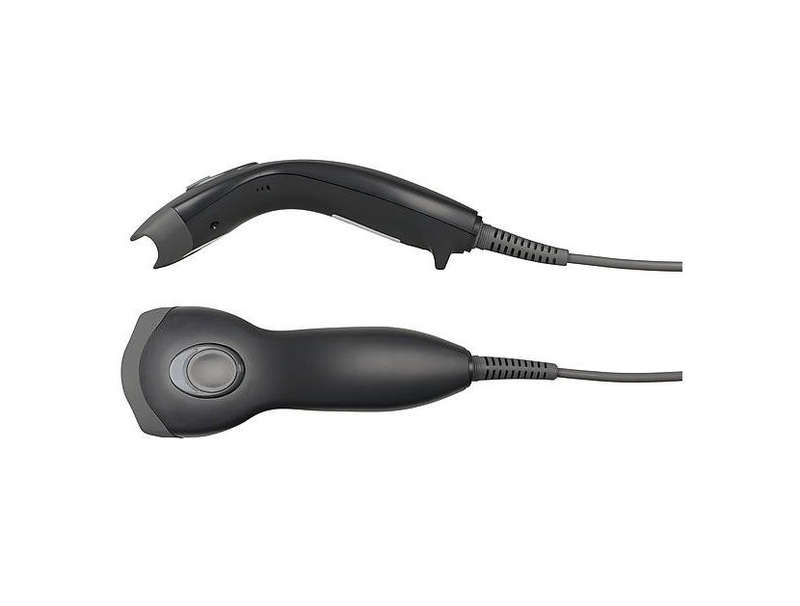

Zebex Z-3100PS2 Long Range PS2 CCD Black Scanner

Z-3100 is the upgraded version of ZEBEX middle-range handheld CCD scanner with faster scan rate, longer scanning depth and better decoding ability. At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar.

It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.

- Proprietary Ultrascan decoding technology

- Streamline design and Large trigger for effortless operation

- 32 bit micro processor unit - Analog image capture technology

- Support presentation scan mode

- 0 Â 100,000 Lux light immunity

Specifications:

- Light Source - 617 nm visible red LED

- Optical System - Linear CCD array

- Microprocessor - 32 bit

- Depth of Field 4 mil: 0 � 60 mm 5 mil: 0 � 100 mm 7.5 mil: 0 � 140 mm 10 mil: 0 � 180 mm 13 mil: 0 � 300 mm 20 mil: 0 � 350 mm

- Scan Angle - 42°

- Scan Rate - 330 scans per second

- Print Contrast - Min. 30% @ UPC/EAN 100%

- Indicator - Blue LED - Beeper Operation

- Programmable tone & beep time

- System Interface - USB

- Dimension - 152.3 × 64.4 × 104.9 mm (device only)

- Weight - 120 g (device only)

- Cable - Standard 2M straight

- EMC - CE & FCC DOC compliance, VCCI, BSMI

- Safety - IEC 62471 Exempt
