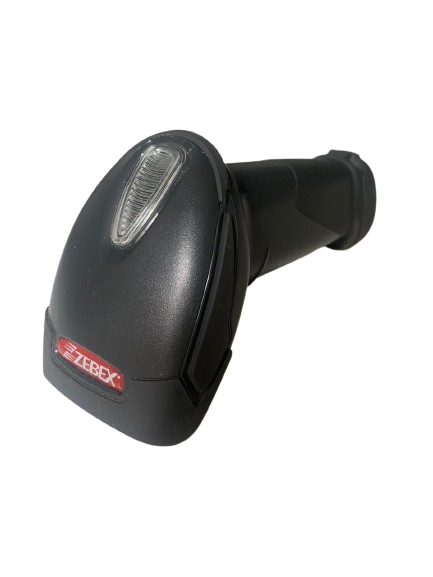

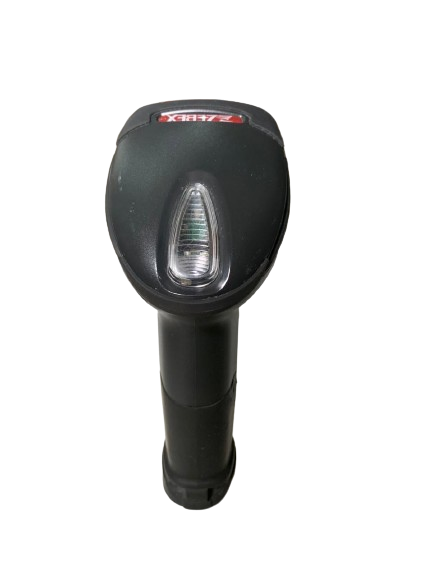

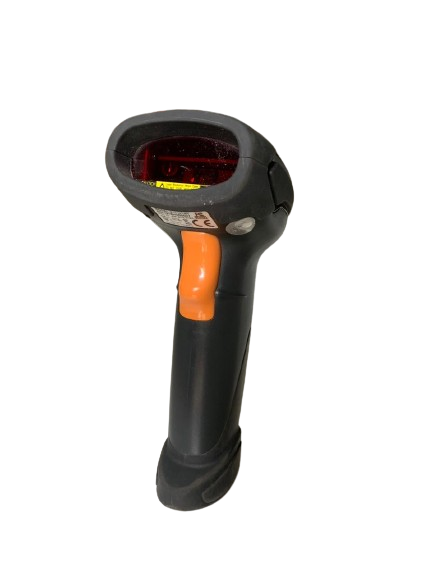

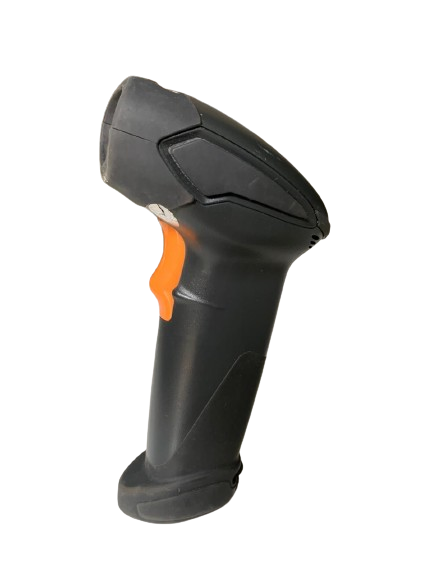

Zebex Z-3191BT Handheld Gun - Type Wireless USB Laser Scanner
- Of rugged form factor and supreme scanning performance, Z-3191BT is able to work at a range up to 100m.
- Its gun-type design and large trigger allow users to aim at target easily; the ergonomic outline creates comfort in holding even for long hours.
- It has a highly reliable exterior that can survive extremes of temperature and shock and vibration; it also includes ZEBEX proprietary decoding technology and firmware within the system, which behave reliably and predictably in all situations.
- Proprietary Ultrascan decoding technology
- 32-bit micro processor unit
- GS1 DataBar decoding capability
- Strong gun-type design
- Wireless freedom at 100m/75m working range
- Smart charging to prolong battery life
- Flashing LED indication and programmable beeper
Technical Specifications
Light Source
- 650 nm visible laser diode (VLD)
Optical System
- Linear laser
Image Sensor
- Photo diode
Depth of Field
- 4 mil: 30 - 90 mm
- 5 mil: 10 - 100 mm
- 7.5 mil: 10 - 250 mm
- 10 mil: 10 - 320 mm
- 13 mil: 20 - 400 mm
- 20 mil: 20 - 630 mm
Note:
- DOF may vary depending on environment condition and barcode quality.
Scan Angle - 47 degree
Pitch/Roll/Skew Angle
- +/- 65 degree ; +/- 35 degree ; +/- 50 degree
Scan Rate - 100 scans per second
Print Contrast - Min. 30% at UPC/EAN 100%
Reading Indicator - Beeper and LED
Programmable Operation
- Beeper tone & volume
System Interface
- Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
