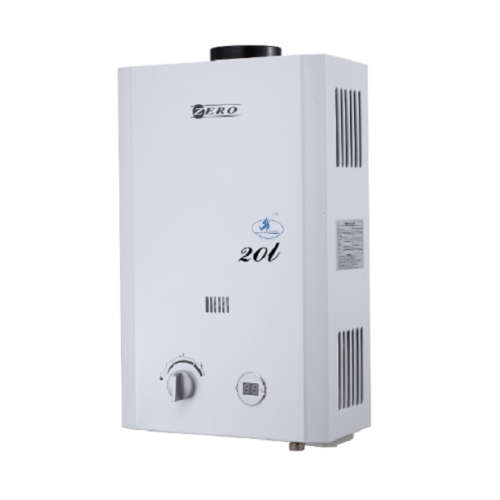

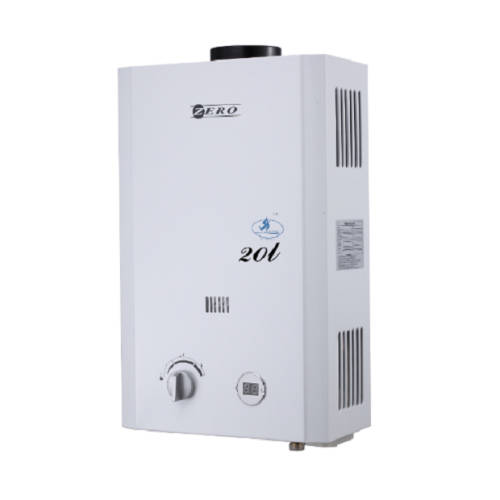

ZERO APPLIANCES 20 L GAS WATER HEATER

FLUE SOLD SEPARATELY

TO BE INSTALLED BY A REGISTERED INSTALLER WARRANTY ONLY VALID WITH A CERTIFICATE OF COMPLIANCE FROM INSTALLER.

Capacity Consumption Dimensions Weight
8 l per minute 1.5 kg/hr (H) 664mm x (W) 340mm x (D) 224mm 8kg
12 l per minute 2.25 kg/hr (H) 710mm x (W) 405mm x (D) 224mm 10kg
16 l per minute 3 kg/hr (H) 776mm x (W) 446mm x (D) 224mm 12kg
20 l per minute 3.75 kg/hr (H) 778mm x (W) 500mm x (D) 228mm 15kg

Characteristics:
1. Gas Type: LPG
2. Gas Pressure: 2800 Pa/2000 Pa/2.8 kPa
3. Low Water Pressure Start (0.1 Bar / 0.01mPA) But Needs 1.5 Bar For Max Output
4. Means of Exhaust: By Flue Pipe
5. Ignition Method: Fully Automatic Battery Type
6. Automatic Flame Failure Protection, Over Temperature & Over Pressure Protection
7. 20 Minutes Built-in Time Device and Indicator
8. Double Pulse Ignition System With High Ignition Efficiency

**N.B Difficulty may be experienced when using reduced output shower heads i.e. often restricted to 10L per minute.

**Some Flue pipes and caps are available from us. All other extension pipes and
fittings will be provided by your qualified gas installer in accordance to your needs**
