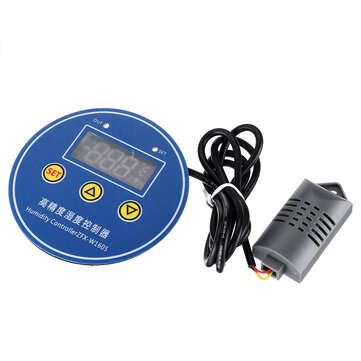

ZFX-W1605 Intelligent Humidity Controller with Digital DisplayHumidity Control Sw... (VOLTAGE: 220V)

SELECTED OPTION:
VOLTAGE: 220V

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;} Specifications:
Product model: ZFX-W1605 Humidity measurement range: 1% RH ~ 99% RH Humidity measurement accuracy: 1% RH Resolution: 0.1 Humidity control range: 00% RH ~ 99% RH Humidity control accuracy: 1% RH Transmission line: L = 1m Power supply voltage: DC 12V / DC 24-60V / AC 220V Applicable environment: -25 ~ 55 ????, humidity 90% RH (no condensation) Output type: direct output Diameter: 86mm
Setting:
1. In the setting mode, long press the SET button for 5 seconds, P0 will be displayed, and short press the SET button to switch the H / C (H is humidification, C is dehumidification) 2. Set the stop humidity, press the SET button once, the screen flashes, and press the up and down keys to directly set the required humidity 3. Press and hold the SET button for 5 seconds to display P0, press the up and down buttons to switch to P1, and then press the SET button once again to set the return difference (press the up and down buttons to adjust) If the humidification mode wants to be set between 35 and 37, then the stop humidity is set to 37, then the hysteresis must be set to 2 4. Indicator light: SET light is on, indicating that the parameter is being set: OUT indicator flashes to indicate the start delay, and constant light indicates the output 5. Nixie tube: display LLL as sensor abnormality: display HHH as sensor causing short circuit or exceeding measurement range, when humidity is blinking, it is in the setting or alarm state.

Parameter	Features	Range	Defaults
P0	Operating?mode	Humidification?/?Dehumidification	H
P1	Backlash?setting	1~20%RH	2
P2	Humidity?correct	-20~20%RH
